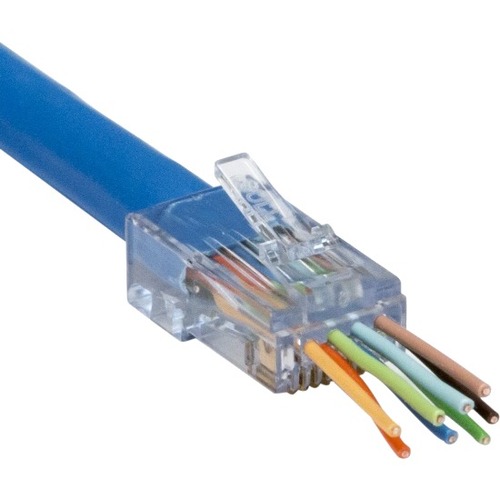

EZEX38 CONNECTOR 50/CLAMSHELL

The ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Insulation Diameter (Conductor) Size range: .033" - .038" (0.84 -0.97mm)
• Max Outer Diameter: .290" (7.36mm)
• 50 micron gold plated contacts
• 5e/6/6A compliant
• Solid or Stranded 24-22 AWG
• TIA, TAA, RoHS, UL & FCC compliant
• Typically used with Cat5e (Sm. 6)
• Made in the USA

• Stranded
• PoE
• PoE+
