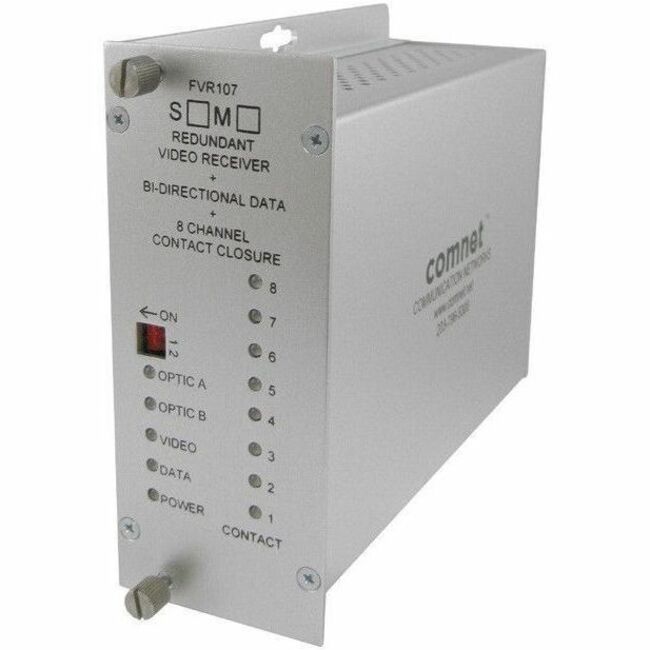

ComNet FVT107S1 Video Receiver/Data Transceiver

FEATURES 10-bit digital video transmission Bi-directional data channel supports RS232, RS422 or RS485 (2 or 4-wire) interfaces. Distances up to 30 miles (48 km) Eight SPST latching relays (with individual LED indicators) Microprocessor-based logic and latching relays in receiver unit eliminate random contact closure status in the event of loss of link or loss of prime operating power. Two separate alarm relay outputs indicate when a fiber link is lost and which optical port. Dual optical port Redundant Point-to-Point (RPP) configuration Exceeds all requirements for RS-250C short-haul video transmission: True broadcast video performance Compatible with all NTSC, PAL, or SECAM CCTV camera systems Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40º to +75ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events. Automatic resettable fuses on all power lines Bi-color LED status indicators confirm operating status Hot-swappable rack modules Interchangeable between stand-alone or rack mount use - ComFit Can be DIN-rail mounted with optional DINBKT1 or DINBKT4 mounting kit. Lifetime Warranty Made in the USA The ComNet™ FVT/FVR107 series of optical video links provides 10-bit digital video, 10 Mhz bandwidth, short haul video quality, one bi-directional data channel and a dual optical port redundant Point-to-Point topology plus eight contact closures and two alarm relays. The redundant Point-to-Point topology using the dual optical ports provide fail safe operation in the event of loss of one fiber. Each optical port uses wavelength division multiplexing (WDM) to both transmit and receive on one optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. The data channel supports RS232, RS422 and 2 wire and 4 wire RS485. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

• 10-bit digital video transmission
• Bi-directional data channel supports RS232, RS422 or RS485 (2 or 4-wire) interfaces.
• Distances up to 30 miles (48 km)
• Eight SPST latching relays (with individual LED indicators)
• Microprocessor-based logic and latching relays in receiver unit eliminate random contact closure status in the event of loss of link or loss of prime operating power.
• Two separate alarm relay outputs indicate when a fiber link is lost and which optical port.
• Dual optical port Redundant Point-to-Point (RPP) configuration
• Exceeds all requirements for RS-250C short-haul video transmission: True broadcast video performance

• 50 Hz
• 60 Hz

• Rack-mountable
• Surface-mountable

• Video Receiver/Data Transceiver
• 9 Volt DC Plug-in Power Supply

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
