ComNet CNMCSFPBT Transceiver/Media Converter

by
COMNET
PCN#
10MH50
MFG#
CNMCSFPBT

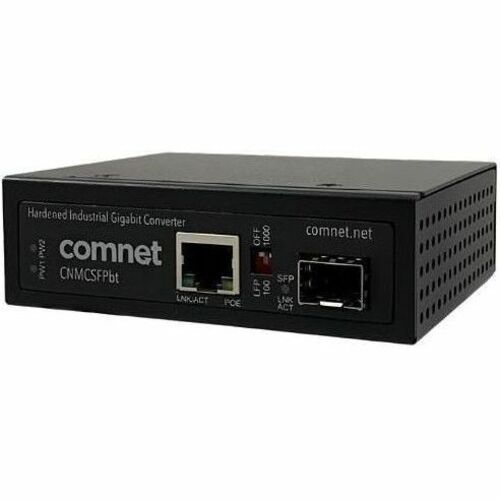

main product photo
fotorama-image
$994.12
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Network (RJ
  • 45)
  • 1x PoE (RJ

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
ComNet CNMCSFPBT Transceiver/Media Converter
Overview
Tech Specs
Specifications

Manufacturer

ACRE

Manufacturer Part Number

CNMCSFPBT

Manufacturer Website Address

http://www.acre-co.com

Brand Name

ComNet

Product Model

CNMCSFPBT

Product Name

CNMCSFPBT Transceiver/Media Converter

Marketing Information

Purpose Built Professional Security

The ComNet™ CNMCSFPbt is an industrial grade / environmentally hardened fiber optic Ethernet transceiver (media converter) that complies with the PoE standard as defined by the IEEE 802.3bt Type 4 while maintaining backward compatibility with the previous standards as defined by IEEE802.3at-2009 and IEEE802.3af-2003.

The media converter consists of one DIP switch selectable 100/1000BASE-X SFP port, and one auto-negotiating 10/100/1000BASE-T(X) RJ-45 PSE port. When supplied with an operating power input of 52 to 56 VDC, PoE that is compliant with the PoE standard as defined by IEEE 802.3bt Type 4 is produced, capable of delivering up to 90 W of PoE to a compliant powered device (PD). CNMCSFPbt is designed to allow for optional redundant operating power inputs.

Link Fault Pass Through (LFPT) is DIP switch selectable. When engaged, LFPT disables the copper side signal on loss of optical link and disables the fiber signal on loss of electrical link.

Product Type

Transceiver/Media Converter
Interfaces/Ports

Total Number of Ports

1

Network (RJ-45)

Yes

Number of PoE (RJ-45) Ports

1
Media & Performance

Media Type Supported

  • Twisted Pair
  • Optical Fiber
I/O Expansions

Total Number of Expansion Slots

1.0

Expansion Slot Type

SFP

Number of SFP Slots

1
Network & Communication

Ethernet Technology

Gigabit Ethernet

Network Technology

  • 100/1000Base-X
  • 10/100/1000Base-TX
Power Description

Power Source

DC

Power Consumption

3 W
Physical Characteristics

Form Factor

  • DIN Rail Mountable
  • Wall Mountable
Miscellaneous

Application/Usage

  • Network
  • Security Camera

TAA Compliant

Yes
