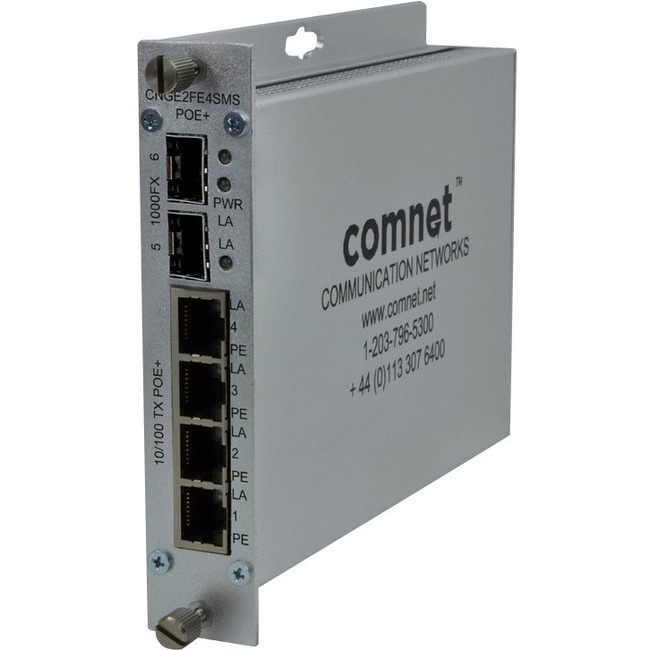

ComNet 10/100/1000 Mbps Drop/Insert/Repeat Gigabit Uplink Switch with Optional PoE+

Name: ComNet 10/100/1000 Mbps Drop/Insert/Repeat Gigabit Uplink Switch with Optional PoE+
Brand: COMNET
SKU: YN5432
Price: 1759.6 USD
Availability: InStock

COMNET

PCN#

YN5432

MFG#

CNGE2FE4SMSPOEHO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,759.60

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

4 Ports
Manageable
Fast Ethernet, Gigabit Ethernet
10/100Base
TX, 1000Base
FX
2 Layer Supported
2 SFP Slots
Twisted Pair, Optical Fiber
PoE Ports
Wall Mountable, Desktop, Rack
mountable, Rail
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Comnet 10/100/1000 Mbps Drop/Insert/Repeat Gigabit Uplink Switch with Optional PoE+

Overview

Tech Specs

Specifications

Manufacturer	Comnet Supply, Inc
Manufacturer Part Number	CNGE2FE4SMSPOEHO
Manufacturer Website Address	http://www.comnetsupply.com
Brand Name	Comnet
Product Model	CNGE2FE4SMSPOEHO
Product Name	10/100/1000 Mbps Drop/Insert/Repeat Gigabit Uplink Switch with Optional PoE+
Marketing Information	The ComNet TM CNGE2FE4SMS[POE][HO] is a six-port self-managed switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and two Gbps optical SFP ports. It is designed to combine four electrical ports and one Gbps SFP port into one of two optical SFP ports. The CNGE2FE4SMS[POE][HO] SFP ports forwards this data to the next network device or can be configured for drop and insert operation. The CNGE2FE4SMS[POE][HO] uses ComNet SFPs for connector and distance options. There is no programming required to use this product. The ComNet CNGE2FE4SMS[POE][HO] comes pre-programmed, preventing network video flooding with dip switch selection of fiber ports as uplink or as an unmanaged switch. Ports 1 to 4 can supply up to thirty (30) watts of power ("Power over Ethernet") per port based on the IEEE 802.3at standard. An optional High Output (HO) version is also available that can supply up to thirty (30) watts of PoE from ports 1 and 2 and up to sixty (60) watts of PoE from ports 3 and 4.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	4
Token Ring Port	No
LRE Port	No
Uplink Port	No
Bypass	No
Modular	No
Management Port	No
USB	No
Number of PoE (RJ-45) Ports	2
Number of PoE+ (RJ-45) Ports	2
Stack Port	No
Port/Expansion Slot Details	4 x Fast Ethernet Network

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Fast Ethernet Gigabit Ethernet
Network Technology	10/100Base-TX 1000Base-FX

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP
Shared SFP Slot	No
Number of SFP Slots	2

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
Power Source	PoE

Physical Characteristics

Form Factor	Wall Mountable Desktop Rack-mountable Rail-mountable
Height	1.1"
Width	6.1"
Depth	5.3"
