Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support

by
CISCO
PCN#
8ND552
MFG#
UCSC-10-PK-220M5SX

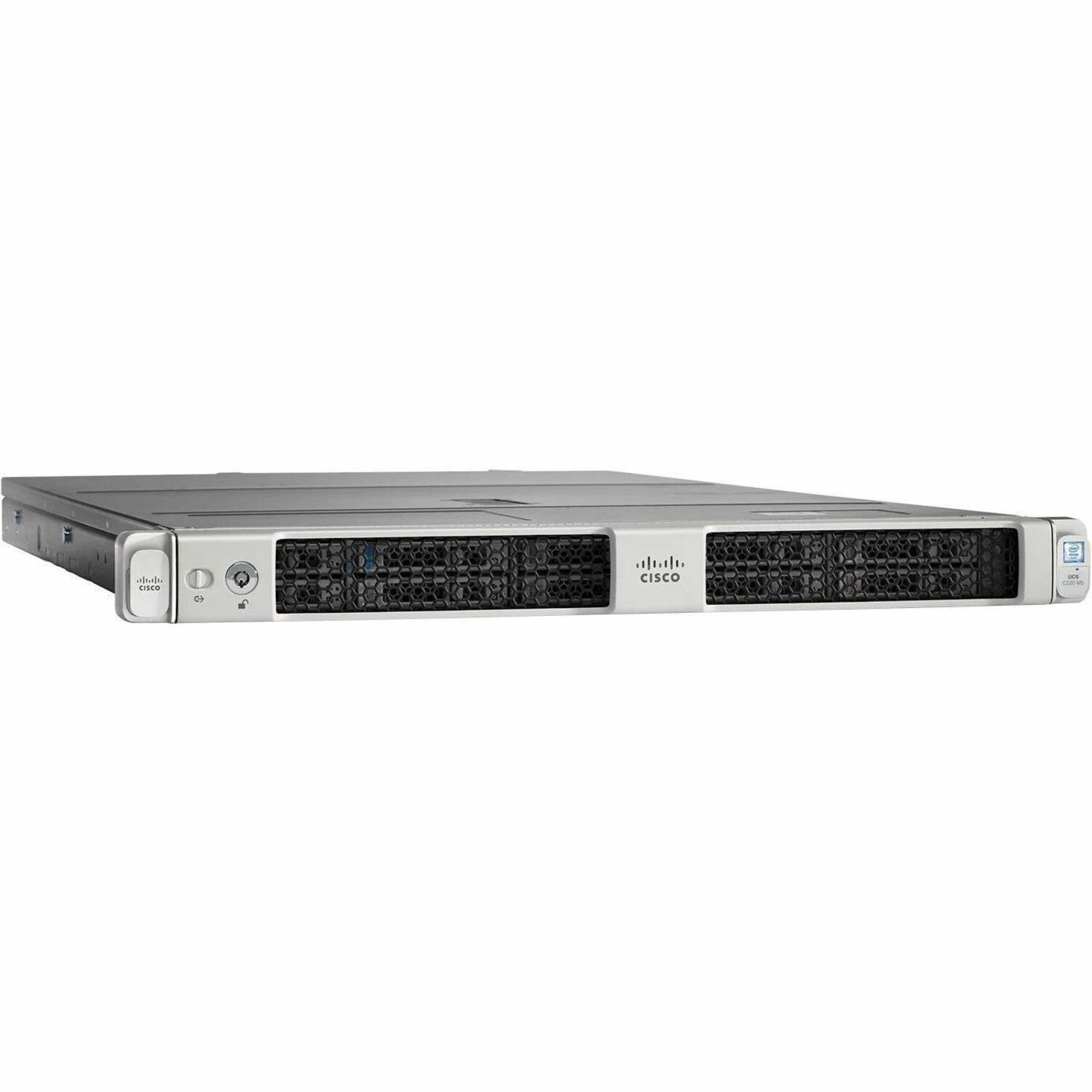

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
CISCO Authorized Dealer
$2,017.03
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel C620 Chip
  • 3 TB DDR4 SDRAM DDR4
  • 2666/PC4

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 YearAdditional Warranty Information Next business day (NBD) parts replacement eight hours a day, five days a week. 90-day software warranty on media.
Shipping Weight: 40 lbs.
Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support
Overview
Tech Specs
Specifications

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

UCSC10PK220M5SX

Manufacturer Website Address

http://www.cisco.com

Brand Name

Cisco

Product Series

C220 M5

Product Name

UCS C220 M5 Barebone System (MultiPack)

Marketing Information

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Packaged Quantity

10

Product Type

Barebone System
Processor

Number of Processors Supported

2

Processor Supported

  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
  • Xeon Platinum

64-bit Processing

Yes
Chipset

Chipset Manufacturer

Intel

Chipset Model

C620
Memory

Maximum Memory Supported

3 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2666/PC4-21300

Total Number of Memory Slots

24.0
Controllers

Controller Type

  • Serial ATA
  • 12Gb/s SAS

RAID Supported

Yes

RAID Levels

0, 1, 5, 6, 10, 50, 60
Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

Pilot 4

Graphics Memory Capacity

16 MB
Network & Communication

Ethernet Technology

  • 10 Gigabit Ethernet
  • Gigabit Ethernet
I/O Expansions

Number of Total Expansion Bays

10

Total Number of Expansion Slots

2.0

Number of PCI Express x16 Slots

2
Interfaces/Ports

Total Number of USB Ports

2

Number of USB 3.0 Ports

2

Network (RJ-45)

Yes

Number of VGA Ports

1
Operating System

Operating System Supported

  • Windows Server 2012
  • Windows Server 2012 R2
  • Red Hat Enterprise Linux 6.5
  • Red Hat Enterprise Linux 6.6
  • Red Hat Enterprise Linux 6.7
  • Red Hat Enterprise Linux 7
  • Red Hat Enterprise Linux 7.2 x64
  • SUSE Linux Enterprise Server 12
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Plug/Connector Type

C13
Physical Characteristics

Form Factor

Rack-mountable

Rack Height

1U

Height

1.7"

Width

19"

Depth

31"

Weight (Approximate)

37.50 lb
Warranty

Limited Warranty

3 Year

Additional Warranty Information

  • Next business day (NBD) parts replacement eight hours a day, five days a week.
  • 90-day software warranty on media.
