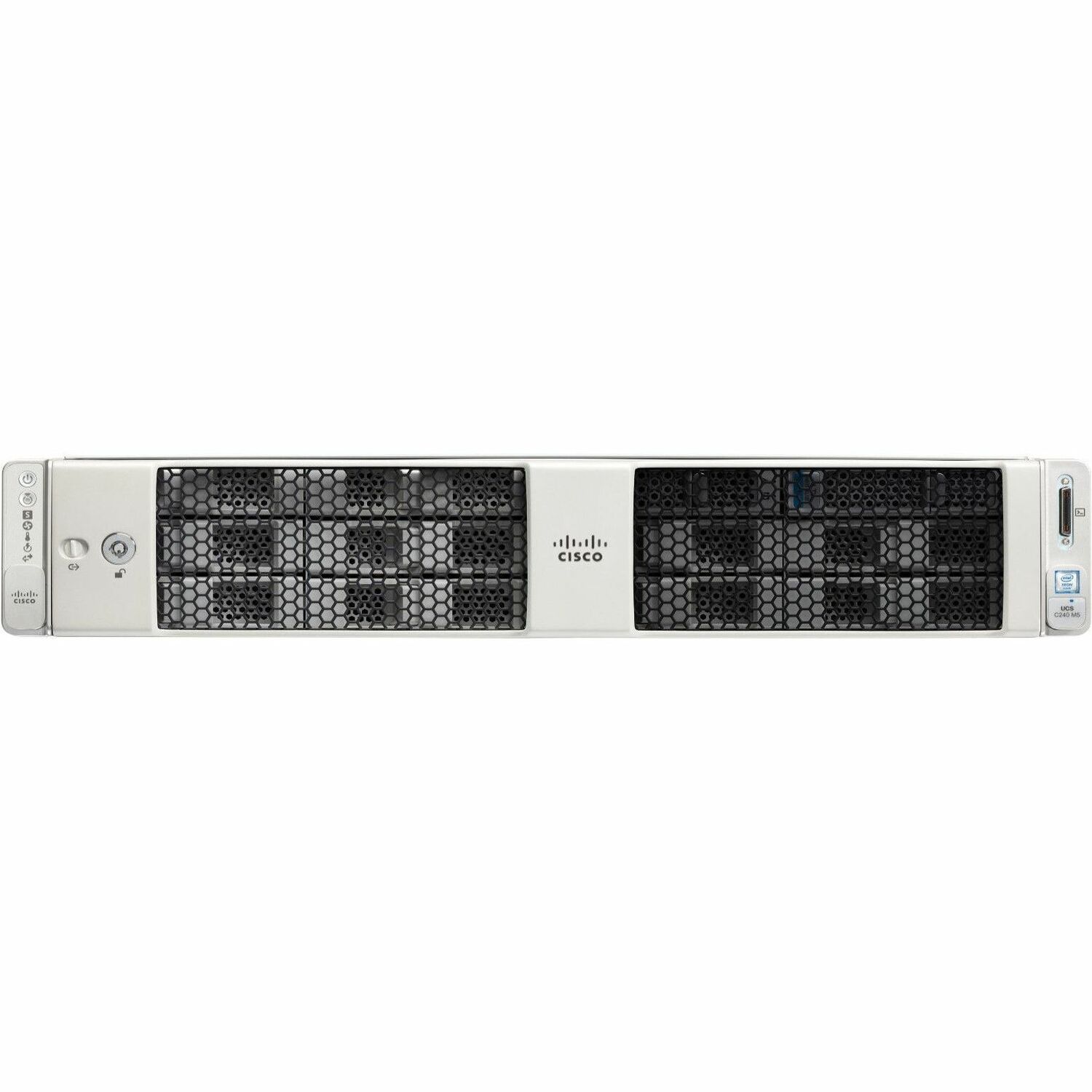

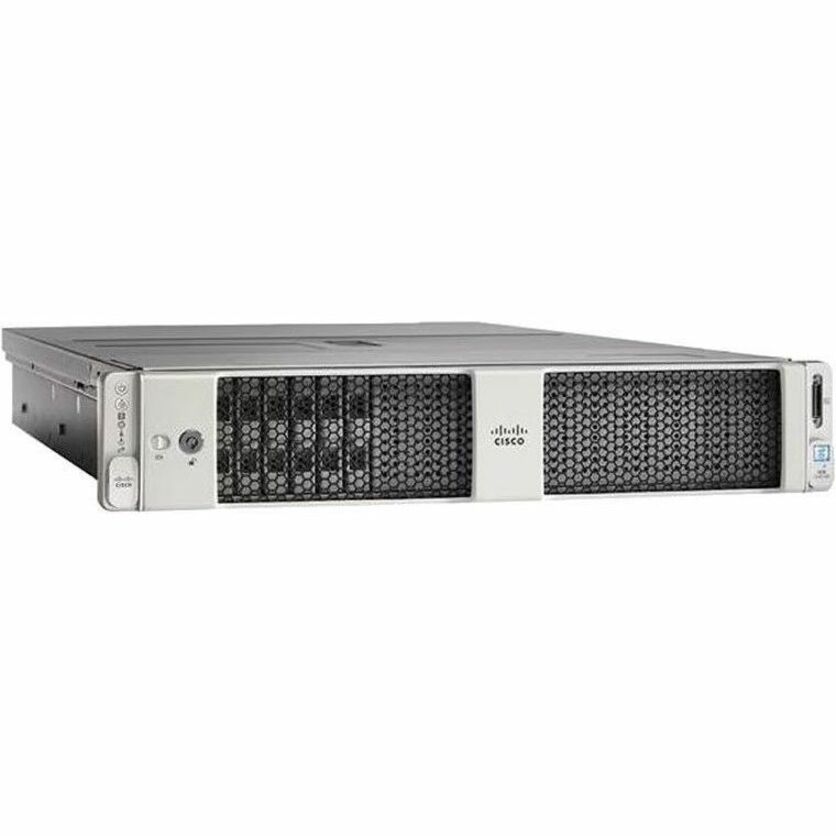

Cisco C240 M5 2U Rack Server - 2 x Intel Xeon Silver 4110 2.10 GHz - 96 GB RAM - 12Gb/s SAS Controller

Name: Cisco C240 M5 2U Rack Server - 2 x Intel Xeon Silver 4110 2.10 GHz - 96 GB RAM - 12Gb/s SAS Controller
Brand: CISCO
SKU: 6GD910
Price: 8093.16 USD
Availability: InStock

CISCO

PCN#

6GD910

MFG#

UCS-SPC240M5L-S3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$8,093.16

Extended & Accidental Damage Protection Plans Available Details

2-Year $462.99

3-Year $582.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621 Chip
2 Processor Support
3 TB RAM Support
DDR4 SDRAM
ASPEED Up to 16 MB Graphic Card
10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
12 x LFF Bay(s)
Hot Swappable Bays
1600 W
Redundant Power Supply

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year parts coverage

Shipping Weight: 40 lbs.

Cisco C240 M5 2U Rack Server - 2 x Intel Xeon Silver 4110 2.10 GHz - 96 GB RAM - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSSPC240M5LS3
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C240 M5
Product Name	UCS C240 M5 Server
Marketing Information	The UCS C240 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Optane™ Persistent Memory (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports. The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	2
Processor Manufacturer	Intel
Processor Type	Xeon Silver
Processor Model	4110
Processor Core	Octa-core (8 Core)
Processor Speed	2.10 GHz
Cache	11 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Standard Memory	96 GB
Maximum Memory Supported	3 TB
Memory Technology	DDR4 SDRAM
Total Number of Memory Slots	24.0
Number of Occupied Memory Slots	6
Signal Processing	Registered (Buffered)

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

I/O Expansions

Number of Total Expansion Bays	12
Number of 3.5" Bays	12
Number of LFF Bays	12
Hot Swappable Bays	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Memory Capacity	16 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
40 Gigabit Ethernet
Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	3
Number of USB 3.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3
VGA	Yes
Remote Management	Yes

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Maximum Power Supply Wattage	1600 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	2U
Height	3.4"
Width	19"
Depth	30.4"

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year parts coverage
