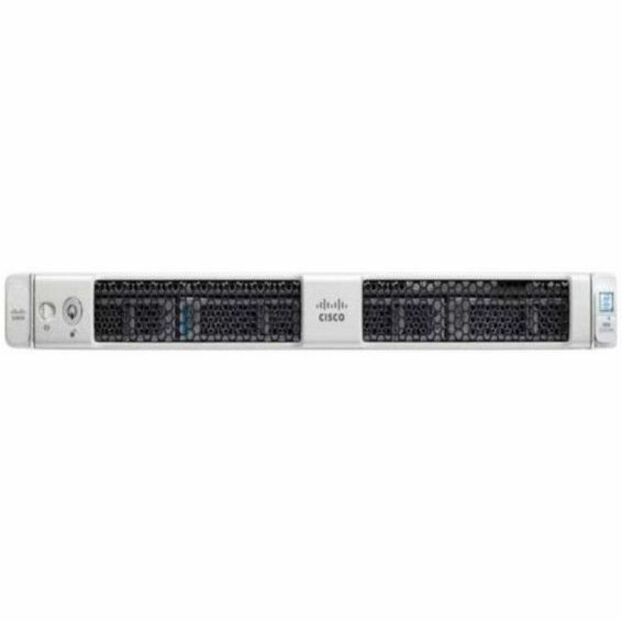

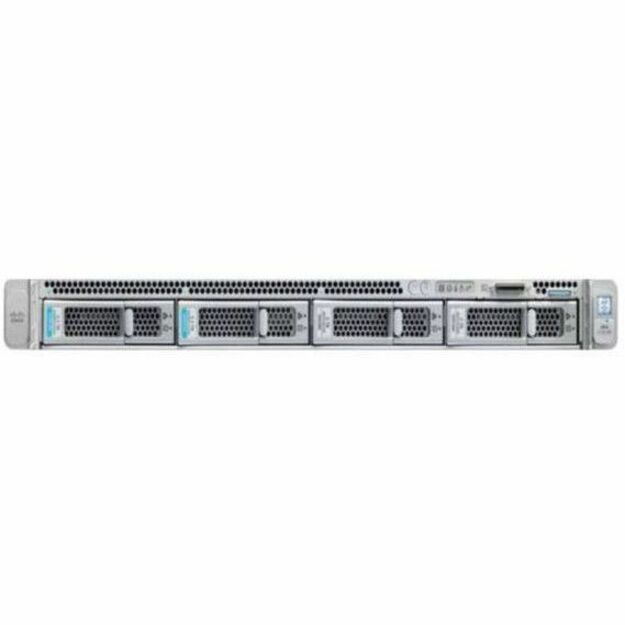

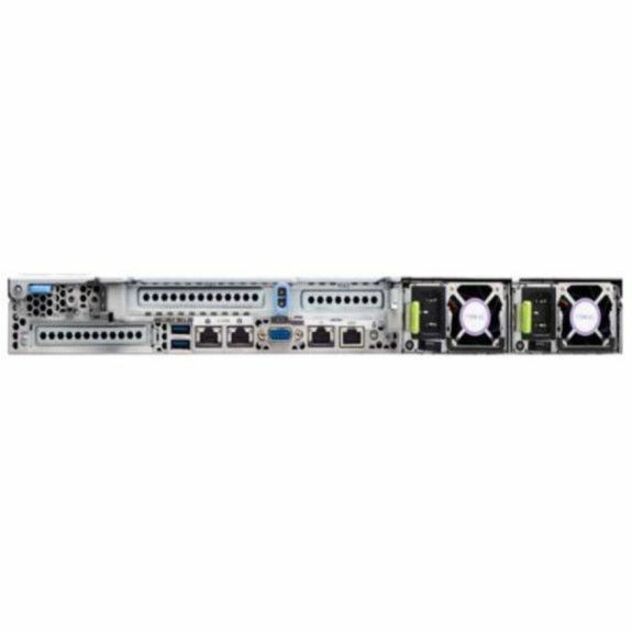

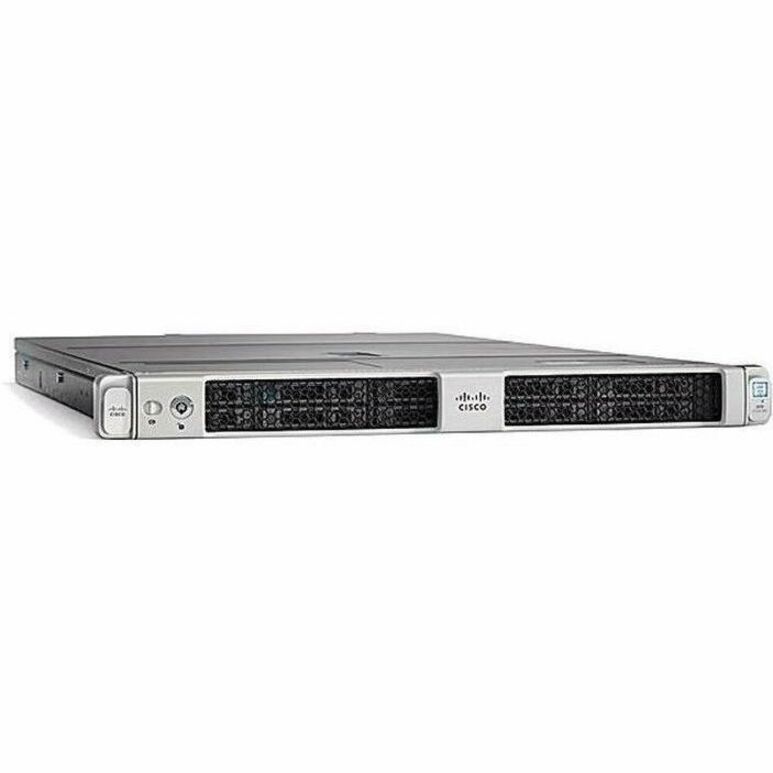

Cisco C220 M5 1U Rack Server - 1 x Intel Xeon Silver 4114 2.20 GHz - 16 GB RAM - 12Gb/s SAS Controller

Name: Cisco C220 M5 1U Rack Server - 1 x Intel Xeon Silver 4114 2.20 GHz - 16 GB RAM - 12Gb/s SAS Controller
Brand: CISCO
SKU: 5FB687
Price: 7661.98 USD
Availability: InStock

CISCO

PCN#

5FB687

MFG#

KIN-UCSM5-1RU-K9

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$7,661.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621 Chip
2 Processor Support
9 TB RAM Support
DDR4 SDRAM
0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels
Matrox G200e Up to 16 MB Graphic Card
Gigabit Ethernet, 10 Gigabit Ethernet
4 x LFF Bay(s)
Hot Swappable Bays
1 x 770 W
Intel Optane Memory Ready

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information Three-year parts coverage. Next business day (NBD) parts replacement eight hours a day, five days a week. 90-day software warranty on media.

Shipping Weight: 40 lbs.

Cisco C220 M5 1U Rack Server - 1 x Intel Xeon Silver 4114 2.20 GHz - 16 GB RAM - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	KINUCSM51RUK9
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C220 M5
Product Name	UCS C220 M5 Server
Marketing Information	The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports. The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	1
Processor Manufacturer	Intel
Processor Type	Xeon Silver
Processor Generation	2nd Gen
Processor Model	4114
Processor Core	Deca-core (10 Core)
Processor Speed	2.20 GHz
Cache	13.75 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Standard Memory	16 GB
Maximum Memory Supported	9 TB
Memory Technology	DDR4 SDRAM
Memory Clock Speed	2.67 GHz
Error Checking	ECC
Total Number of Memory Slots	24.0
Intel Optane Memory Ready	Yes
Signal Processing	Registered (Buffered)

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60, JBOD

I/O Expansions

Number of Total Expansion Bays	4
Number of 3.5" Bays	4
Number of LFF Bays	4
Hot Swappable Bays	Yes
Total Number of Expansion Slots	2.0
PCI Express x16 (Gen 3.x) Slots	2
PCI Express Details	One full-height profile, 3/4-length slot with x24 connector and x16 lane; One half-height profile, half-length slot with x24 connector and x16 lane.
Riser Card	3 PCIe 3.0 slots via riser 1

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	16 MB
Graphics Memory Technology	DDR4 SDRAM

Network & Communication

Ethernet Technology

Gigabit Ethernet
10 Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	Cisco Integrated Management Controller (CIMC)

Operating System

Operating System Supported

Red Hat Enterprise Linux
Windows Server 2022 Datacenter
Windows Server 2019 Standard
Windows Server 2022 Standard
SuSE Linux Enterprise Server
Windows Server 2019 Datacenter

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	770 W
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	19"
Depth	31"
Weight (Approximate)	59.97 lb

Miscellaneous

Package Contents

UCS C220 M5 Server
Friction Rail Kit

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year parts coverage. Next business day (NBD) parts replacement eight hours a day, five days a week. 90-day software warranty on media.
