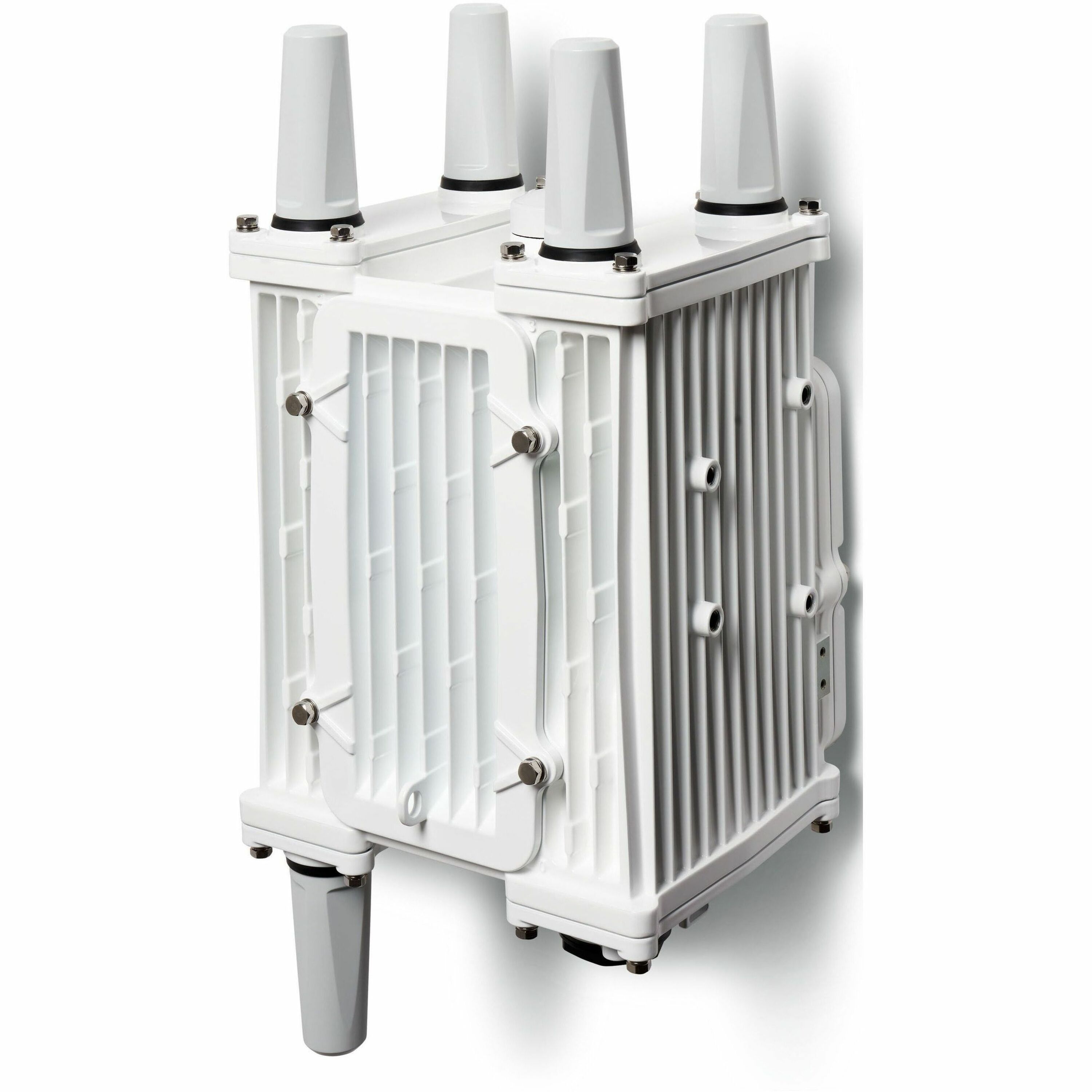

Cisco Catalyst IR8100 Heavy Duty Series Router

Rugged, IP67-rated, 5G router that's fully modular and multi-access capable, allowing you to converge technologies as they evolve.

The Cisco^® Catalyst^® IR8100 Heavy Duty Series Router is Cisco's most versatile 5G multi-access outdoor industrial router. Its flexible and highly modular form factor makes it an ideal solution for remote asset management across multiple industrial markets.

Other than GPS/GNSS built into the base chassis to track the router's location, all the electronics of the router are fully modular - from the supervisor module to the radio modules, power supply, and battery kit - to address a variety of use cases and help ensure a long chassis life. The IR8100's IP67/NEMA Type 4 enclosure is designed to withstand hostile environments, including shock, vibration, dust, salt, and fog. The IR8100 also supports a wide temperature range of -40° to 70°C (-140° to 158°F) standard operation and is type-tested at 85°C (185°F). This durability, coupled with a battery backup for use during extended outages and multiple backhaul connectivity options, makes this router the ideal choice for any application that needs secure, reliable connectivity in a harsh environment, such as utilities, cities, transportation, oil and gas, and mining.

• 10/100/1000Base-T
• 1000Base-X

• IEEE 802.11i
• IEEE 802.1x
• IEEE 802.1AR

• Wall Mountable
• Pole Mount

• FirstNet Ready
• Smart grid
• IEC 61850-3
• IEEE 1613
• FIPS 140-2
• USGv6
• IEC-61850-3
• IEEE1613
• EN61000-4-2 (ESD)
• EN61000-4-3 (RF)
• EN61000-4-4 (EFT)
• EN61000-4-5 (SURGE)
• EN61000-4-6 (CRF)
• EN61000-4-11 (VDI)
• IEC 61000-4-12 (AC, I/O)
• IEEE 1613: High Voltage Impulse
• EN 55035
• CISPR35
• 47 CFR, Part 15 B, Class A
• ICES-003 Class A
• AS/NZS CISPR32 Class A
• VCCI V-3
• CNS 13438
• EN 300-386
• EN 55032 Class A
• CISPR32 Class A
• USA: UL 62368-1, UL 60950
• Canada: CAN/CSA C22.2 No. 62368-1 & 60950
• Europe: EN 62368-1 & EN 60950
• China: GB 4943
• Australia/New Zealand: AS/NZS 60950.1
• Rest of world: IEC 62368-1
• FCC Part 247, AS/NZ 4268:2018
• RSS 247
• EN 303 413
• EN 301 489-1/19
• EN 301 908-1/2/13
• EN 301 489-1/52
• FCC Part 2, 22, 24, 27,90,96
• RSS 130, 132, 133, 139, 199
• EN 50385/62311
• FCC Part 2.1093 and 2.1091
• RSS 102, AS/NZ 2772:2017
• IEEE 802.15.4 g/e
• 802.1X/802.11i
