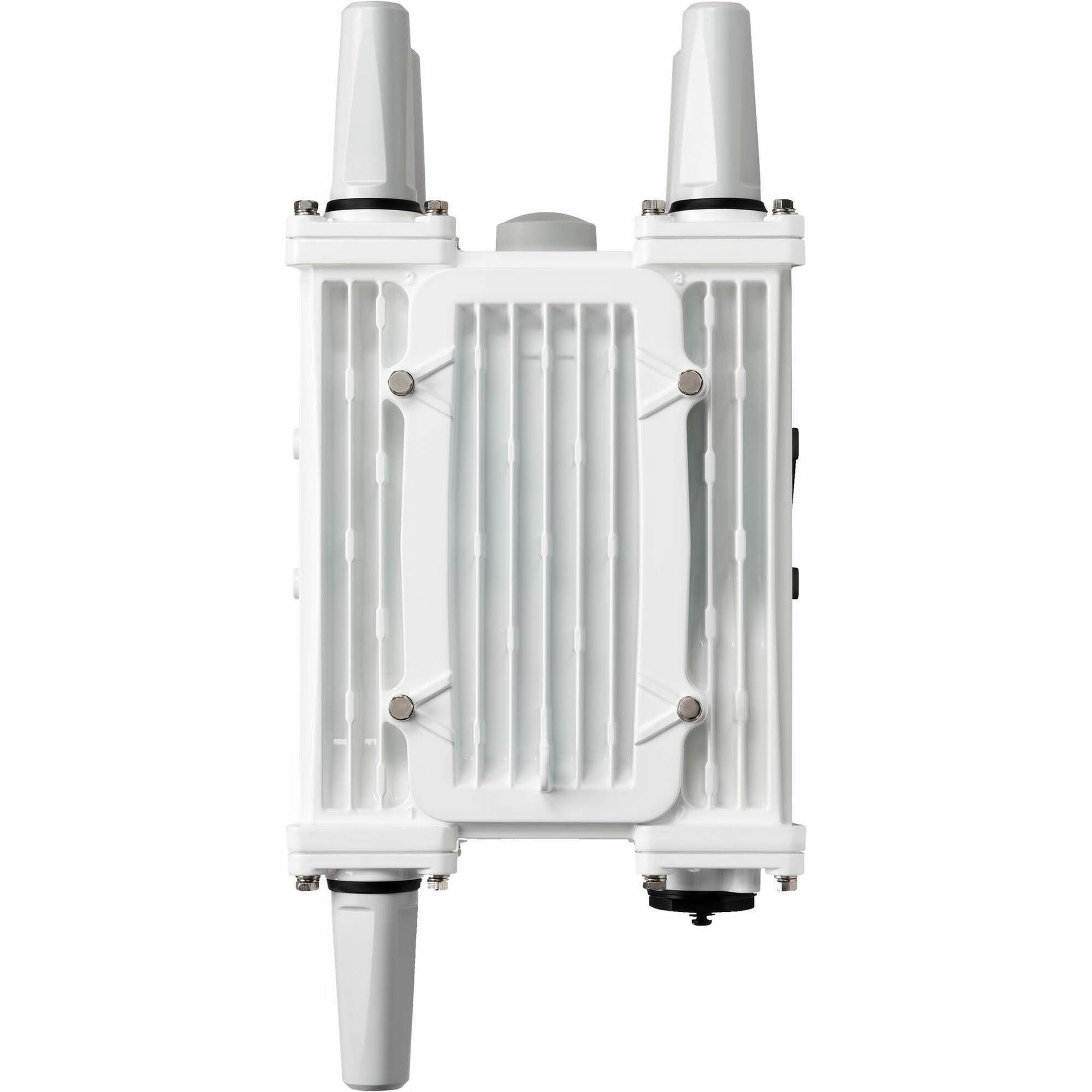

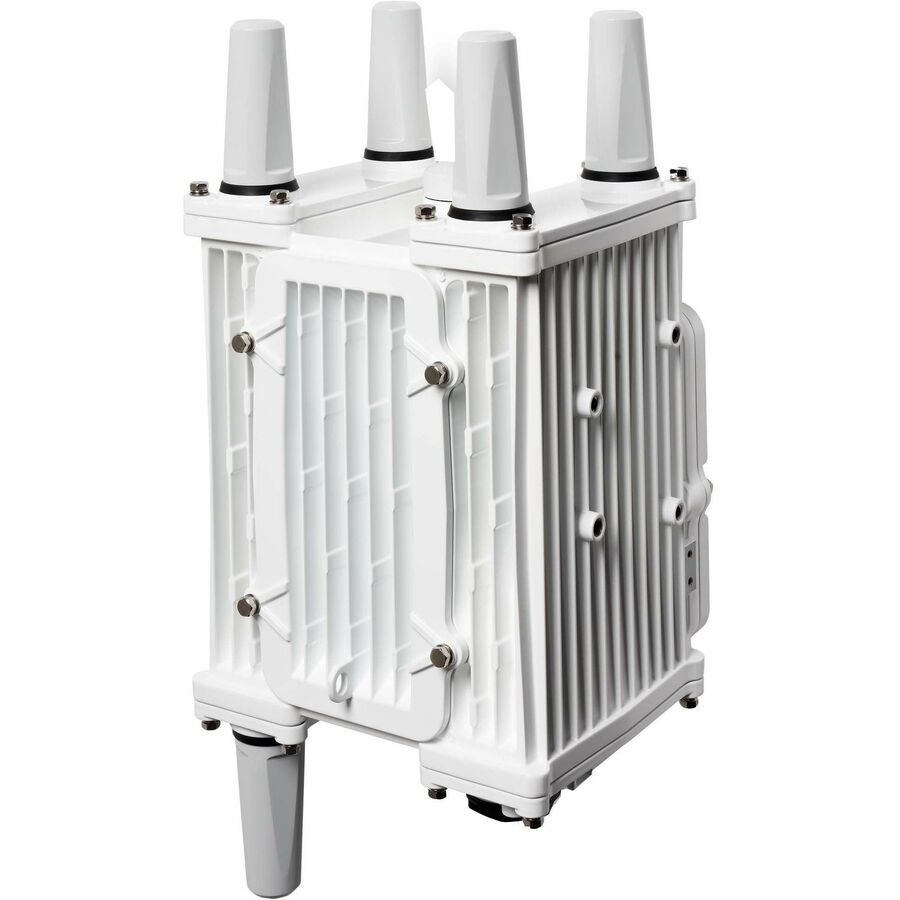

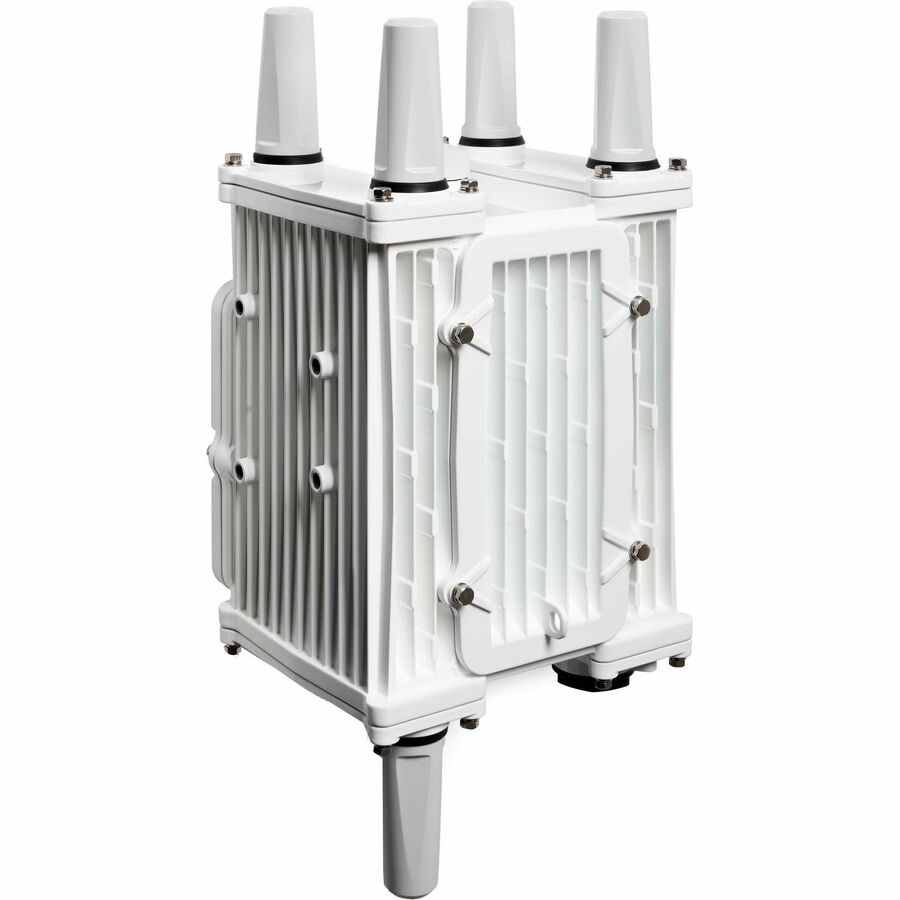

Cisco Catalyst IR8140H Router

Rugged, IP67-rated, 5G router that's fully modular and multi-access capable, allowing you to converge technologies as they evolve.

The Cisco® Catalyst® IR8100 Heavy Duty Series Router is Cisco's most versatile 5G multiaccess outdoor industrial router. Its flexible and highly modular form factor makes it an ideal solution for remote asset management across multiple industrial markets.

? Other than GPS/GNSS built into the base chassis to track the router's location, all the electronics of the router are fully modular - from the supervisor module to the radio modules, power supply, and battery kit - to address a variety of use cases and help ensure a long chassis life. The IR8100's IP67/NEMA Type 4 enclosure is designed to withstand hostile environments, including shock, vibration, dust, salt, and fog. The IR8100 also supports a wide temperature range of -40° to 70°C (-140° to 158°F) standard operation and is type-tested at 85°C (185°F). This durability, coupled with a battery backup for use during extended outages and multiple backhaul connectivity options, makes this router the ideal choice for any application that needs secure, reliable connectivity in a harsh environment, such as utilities, cities, transportation, oil and gas, and mining.

• 10/100/1000Base-T
• 1000Base-X

• IEEE 802.1x
• IEEE 802.11i
• IEEE 802.1AR

• Wall Mountable
• Pole Mount

• FirstNet Ready
• IEC 61850-3
• IEEE 1613
• FIPS 140-2
• Common Criteria
• USGv6
• EN61000-4-2 (ESD)
• EN61000-4-3 (RF)
• EN61000-4-4 (EFT)
• EN61000-4-5 (SURGE)
• EN61000-4-6 (CRF)
• EN61000-4-11 (VDI)
• IEC 61000-4-12 (AC, I/O)
• IEEE 1613: High Voltage Impulse
• EN 55035
• CISPR35
• 47 CFR, Part 15 B, Class A
• ICES-003 Class A
• AS/NZS CISPR32 Class A
• VCCI V-3
• CNS 13438
• EN 300-386
• EN 55032 Class A
• CISPR32 Class A
• USA: UL 62368-1, UL 60950
• Canada: CAN/CSA C22.2 No. 62368-1 & 60950
• Europe: EN 62368-1 & EN 60950
• China: GB 4943
• Australia/New Zealand: AS/NZS 60950.1
• Rest of world: IEC 62368-1
• FCC Part 247, AS/NZ 4268:2018
• RSS 247
• EN 303 413
• EN 301 489-1/19
• EN 301 908-1/2/13
• EN 301 489-1/52
• FCC Part 2, 22, 24, 27,90,96
• RSS 130, 132, 133, 139, 199
• EN 50385/62311
• FCC Part 2.1093 and 2.1091
• RSS 102, AS/NZ 2772:2017
