Cisco HyperFlex Barebone System - 2U Rack-mountable - 2 x Processor Support

Name: Cisco HyperFlex Barebone System - 2U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 02CG01
Price: 2540.74 USD
Availability: InStock

CISCO

PCN#

02CG01

MFG#

HXAF240C-M5SD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,540.74

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621 Chip
3 TB DDR4 SDRAM DDR4
2933/PC4
23466 Maximum RAM Support
24.0 Total Memory Slots
12Gb/s SAS RAID Supported Controller
Matrox G200e 16 MB Graphic(s)
Network (RJ
45)
Processor Support (Xeon Gold, Xeon Silver, Xeon Bronze, Xeon Platinum)
10 Gigabit Ethernet, Gigabit Ethernet
2 USB 3.0 Port(s)

Product Condition: New and Factory Fresh

Shipping Weight: 40 lbs.

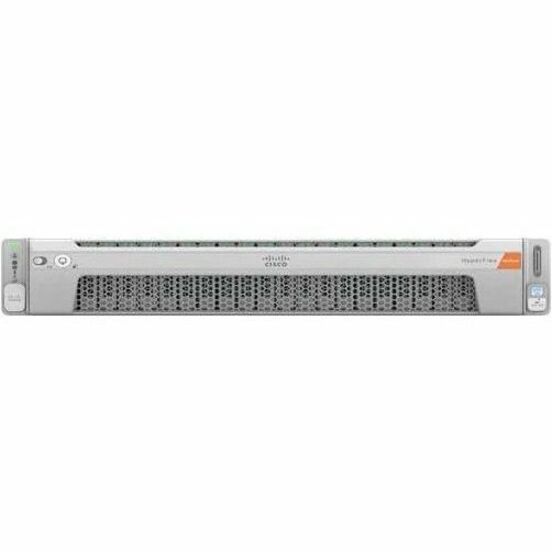

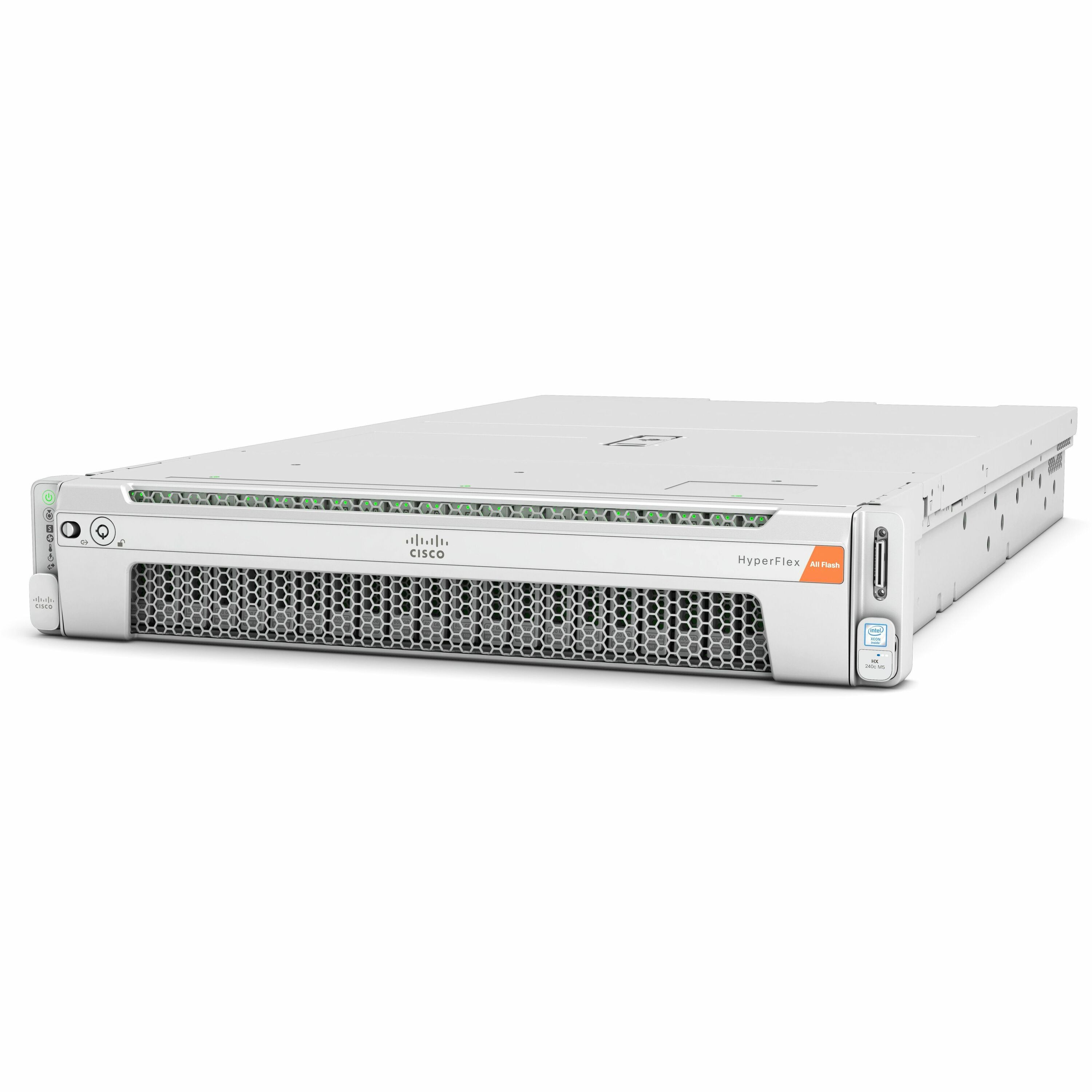

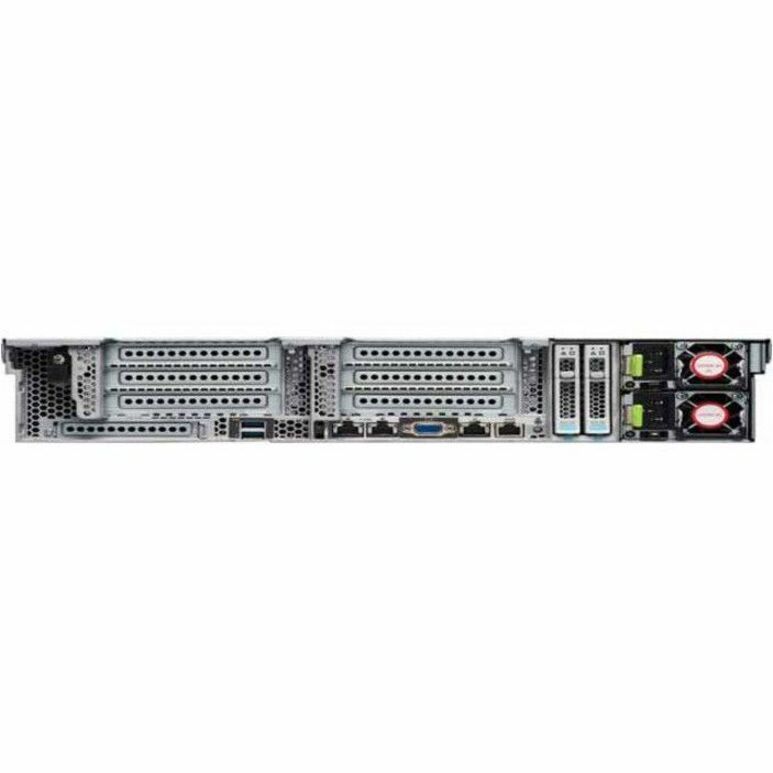

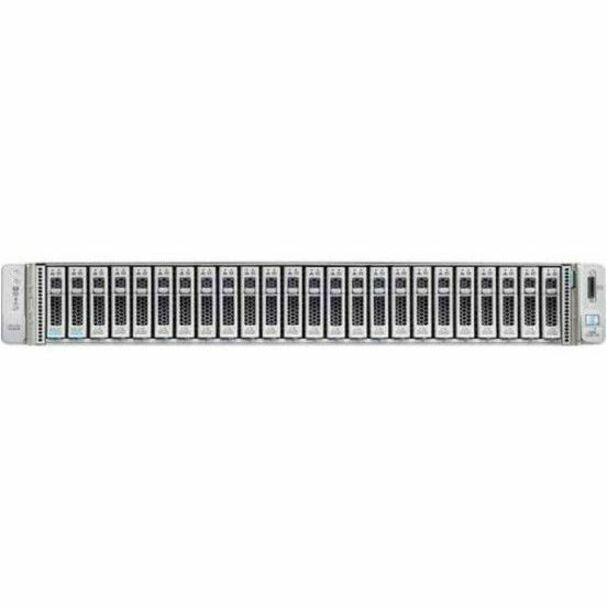

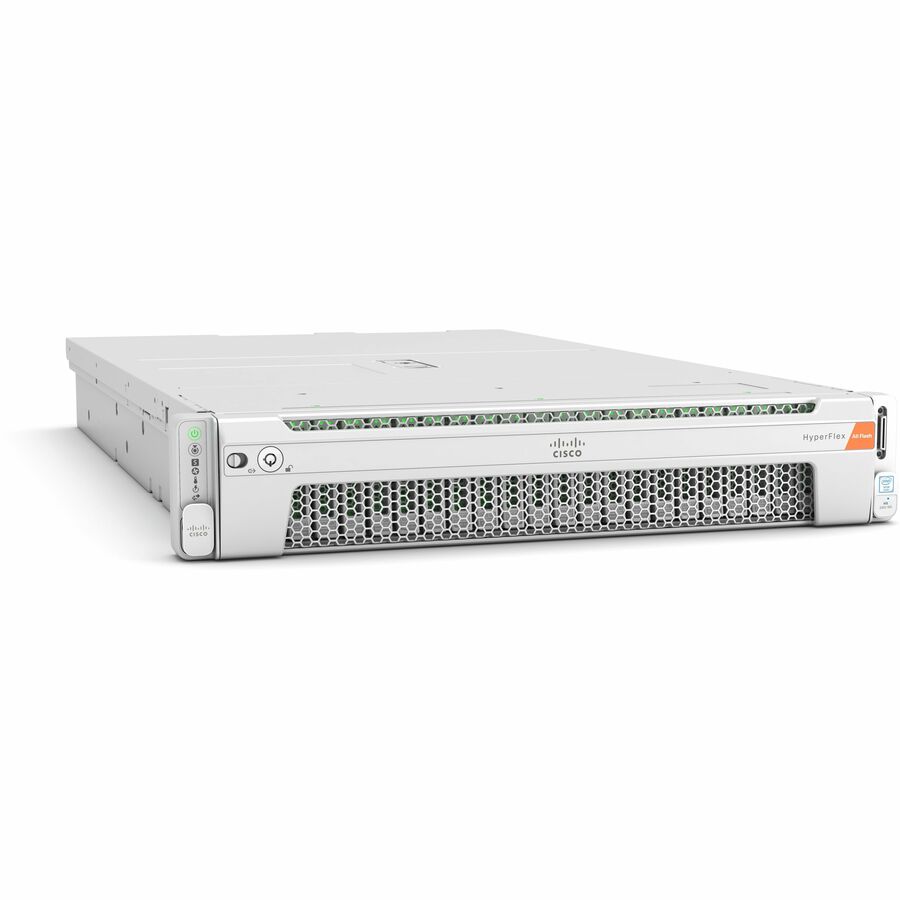

Cisco HyperFlex Barebone System - 2U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	HXAF240CM5SD
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	HyperFlex
Product Series	HX240c M5
Product Name	HyperFlex HX240c SD (Short Depth) Edge M5 Barebone System
Marketing Information	The HX240 All Flash and Hybrid M5 SD edge server is a two-socket 2U short depth chassis designed to operate in Edge environments. Built upon the Cisco UCS C240 SD M5 Rack Server, it enables Intersight managed HyperFlex Edge solutions in more places and smaller spaces. The following list summarizes the HX240 All Flash and Hybrid M5 SD Edge features: 2U form factor, short depth chassis 2nd Gen Intel® Xeon® Processor Scalable Family (1 or 2 CPU sockets) 24 DIMM slots (12 slots per CPU socket) for 2933-MHz DIMMs. Supporting 16-128GB DIMM module sizes. Maximum memory size is 3 TB (using 24 x 128 GB DDR4 DIMMs compatible CPU)
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon Gold Xeon Silver Xeon Bronze Xeon Platinum
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Maximum Memory Supported	3 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2933/PC4-23466
Total Number of Memory Slots	24.0

Storage

Supported Storage Drive Types

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	16 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	6
Total Number of Expansion Slots	2.0
Number of PCI Express x16 Slots	2

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Number of VGA Ports	1

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	19"
Depth	22.9"
Weight (Approximate)	40.57 lb
