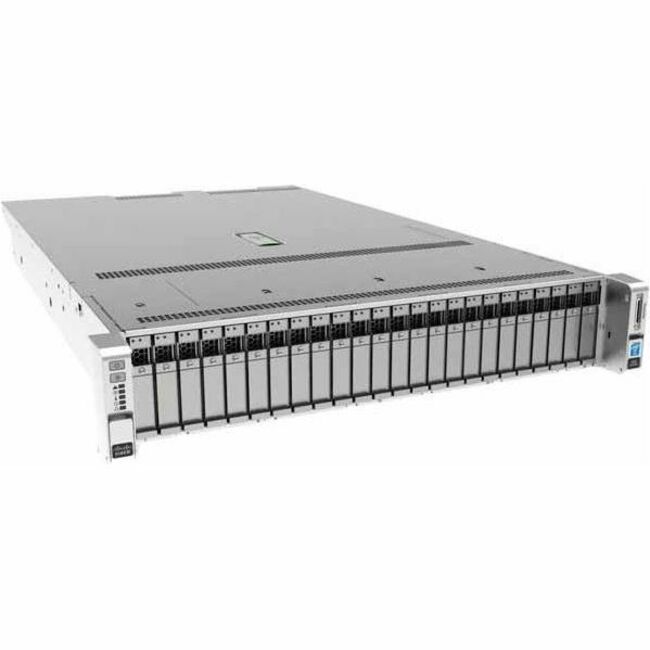

Cisco C240 M4 2U Rack Server - 2 x Intel Xeon E5-2620 v3 3.20 GHz - 32 GB RAM - 12Gb/s SAS Controller

Name: Cisco C240 M4 2U Rack Server - 2 x Intel Xeon E5-2620 v3 3.20 GHz - 32 GB RAM - 12Gb/s SAS Controller
Brand: CISCO
SKU: 6F4682
Price: 8347.41 USD
Availability: InStock

CISCO

PCN#

6F4682

MFG#

CPS-UCSM4-2RU-K9

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$8,347.41

Extended & Accidental Damage Protection Plans Available Details

2-Year $462.99

3-Year $582.99

Estimated Shipment:

Product Highlights:

Intel Chip
2 Processor Support
DDR4 SDRAM
0, 1, 5, 6 RAID Levels
Up to 256 MB Graphic Card
Gigabit Ethernet
12 x LFF Bay(s)
Hot Swappable Bays
2 x 650 W
Redundant Power Supply

Product Condition: New and Factory Fresh

Limited Warranty1 YearAdditional Warranty InformationLimited warranty - replacement - 1 year - response time: 10 days

Shipping Weight: 69 lbs.

Cisco C240 M4 2U Rack Server - 2 x Intel Xeon E5-2620 v3 3.20 GHz - 32 GB RAM - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	CPSUCSM42RUK9
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C240 M4
Product Name	Connected Safety and Security UCS M4 2-RU
Marketing Information	The Cisco® Connected Safety and Security Unified Computing System™ (Cisco UCS®) platform series offers you performance and density for deploying and managing Cisco Video Surveillance Manager. Cisco Connected Safety and Security UCS comprises a suite of two server models and a wide array of features in a single, easy-to-use, and easy-to-deploy configuration. The Cisco Connected Safety and Security UCS C220 model (CSS UCS C220 M4) is an enterprise-class server in a one-rack unit (1 RU) form factor with Intel® Xeon® E5-2600 series processor family CPUs that deliver significant performance and efficiency. In addition, it supports up to four 3.5-inch drives for added density in a compact 1 RU package. The Cisco Connected Safety and Security UCS C240 model (CSS UCS C240 M4) is an enterprise-class server in a 2RU form factor with dual Intel Xeon E5-2600 series processor family CPUs that deliver significant performance and efficiency. In addition, it supports up to twelve 3.5-inch drives for storage expandability and performance.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	2
Processor Manufacturer	Intel
Processor Type	Xeon
Processor Model	E5-2620 v3
Processor Core	Hexa-core (6 Core)
Processor Speed	3.20 GHz
Cache	15 MB

Chipset

Chipset Manufacturer

Intel

Memory

Standard Memory	32 GB
Memory Technology	DDR4 SDRAM
Memory Clock Speed	2.13 GHz

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 6

I/O Expansions

Number of Total Expansion Bays	12
Number of 3.5" Bays	12
Number of LFF Bays	12
Hot Swappable Bays	Yes
Total Number of Expansion Slots	6.0

Display & Graphics

Graphics Memory Capacity

256 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes

Power Description

Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	650 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	2U
Height	3.4"
Width	17.6"
Depth	29.1"

Warranty

Limited Warranty	1 Year
Additional Warranty Information	Limited warranty - replacement - 1 year - response time: 10 days
