Cisco CFP Module

by
CISCO
PCN#
3207AJ
MFG#
CFP-100G-LR4=

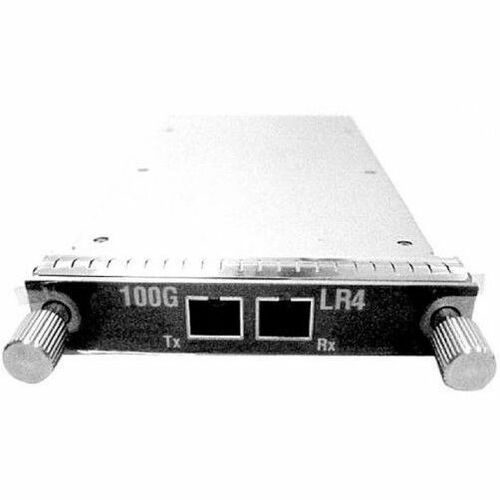

main product photo
fotorama-image
CISCO Authorized Dealer
$40,857.80
  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • For Data Networking, Optical Network
  • 1 x SC/PC Duplex 100GBase
  • LR4 Network

Show more

Product Condition: New and Factory Fresh
Limited Warranty90 Day
Shipping Weight: 1 lbs.
Cisco CFP Module
Overview
Tech Specs
Specifications

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CFP100GLR4WITHEQUAL

Manufacturer Website Address

http://www.cisco.com

Brand Name

Cisco

Product Name

CFP Module

Marketing Information

The Cisco® 100GBASE CFP modules offer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.

Features and benefits

Main features of Cisco 100GBASE CFP modules include:

  • Supports 100GBASE Ethernet
  • Hot-swappable input-output device that plugs into an Ethernet CFP port of a Cisco switch or router
  • Provides flexibility of interface choice
  • Supports "pay-as-you-populate" model
  • Supports Digital Optical Monitoring (DOM)
  • Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco

Cisco CFP-100G-LR4

The Cisco 100GBASE-LR4 CFP module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652). 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

Product Type

CFP
Technical Information

Application/Usage

  • Data Networking
  • Optical Network
Interfaces/Ports

Total Number of Ports

1

Connector Type

SC/PC

Interfaces/Ports Details

1 x SC/PC Duplex 100GBase-LR4 Network
Media & Performance

Media Type Supported

Optical Fiber

Fiber Mode Supported

Single-mode

Ethernet Technology

100 Gigabit Ethernet

Network Technology

100GBase-LR4

Maximum Distance Supported

10 km
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

158°F (70°C)
Physical Characteristics

Form Factor

Hot-swappable

Height

0.5"

Width

3.2"

Depth

5.7"

Weight (Approximate)

0.66 lb
Miscellaneous

Compatibility

MSA Compliant

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

90 Day
