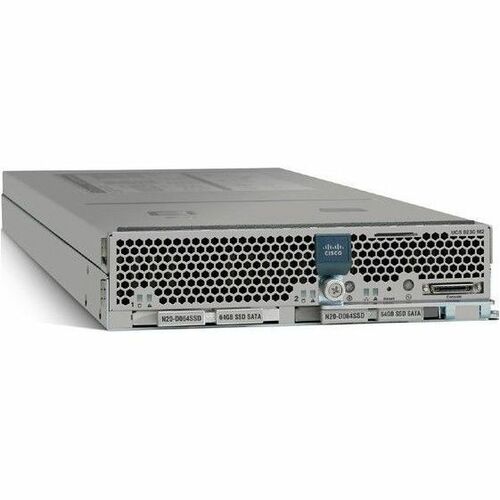

Cisco B230 M2 Barebone System - Blade - 2 x Processor Support

Name: Cisco B230 M2 Barebone System - Blade - 2 x Processor Support
Brand: CISCO
SKU: 6KY620
Price: 3330.7 USD
Availability: OutOfStock

CISCO

PCN#

6KY620

MFG#

B230-BASE-M2UPG

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

Intel 7510 Chip
512 GB DDR3 SDRAM DDR3
1333/PC3
10600 Maximum RAM Support
32 Total Memory Slots
6Gb/s SAS RAID Supported, Serial ATA/600 Controller
Processor Support (Xeon)
Windows Server 2008 Standard, Windows Server 2008 Enterprise Edition, Red Hat Enterprise Linux, Windows Server 2008 R2 Enterprise, Windows Server 2008 R2 Standard, SuSE Linux Enterprise Server Supported Operating System

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Cisco B230 M2 Barebone System - Blade - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	B230BASEM2UPG
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Model	B230 M2
Product Name	UCS B230 M2 Barebone System
Marketing Information	The Cisco® UCS B230 M2 Blade Server is a two-socket, half-width blade server that extends the capabilities of the Cisco Unified Computing System™, using Intel's Xeon E7-2800 Series multi-core processors with 32 DIMM slots, one mezzanine slot and up to two solid-state drives (SSD). Up to eight half-width blade servers can be accommodated in the Cisco UCS 5108 Blade Server Chassis.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	7510

Memory

Maximum Memory Supported	512 GB
Memory Technology	DDR3 SDRAM
Memory Standard	DDR3-1333/PC3-10600
Number of Total Memory Slots	32

Storage

Supported Storage Drive Interfaces	SAS-2 Serial ATA III
Supported Storage Drive Types	SSD

Controllers

Controller Type	6Gb/s SAS Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1

I/O Expansions

Number of Total Expansion Bays	2
Number of Total Expansion Slots	1

Operating System

Operating System Supported

Windows Server 2008 Standard
Windows Server 2008 Enterprise Edition
Red Hat Enterprise Linux
Windows Server 2008 R2 Enterprise
Windows Server 2008 R2 Standard
SuSE Linux Enterprise Server

Physical Characteristics

Form Factor	Blade
Height	2"
Width	8"
Depth	24.4"
