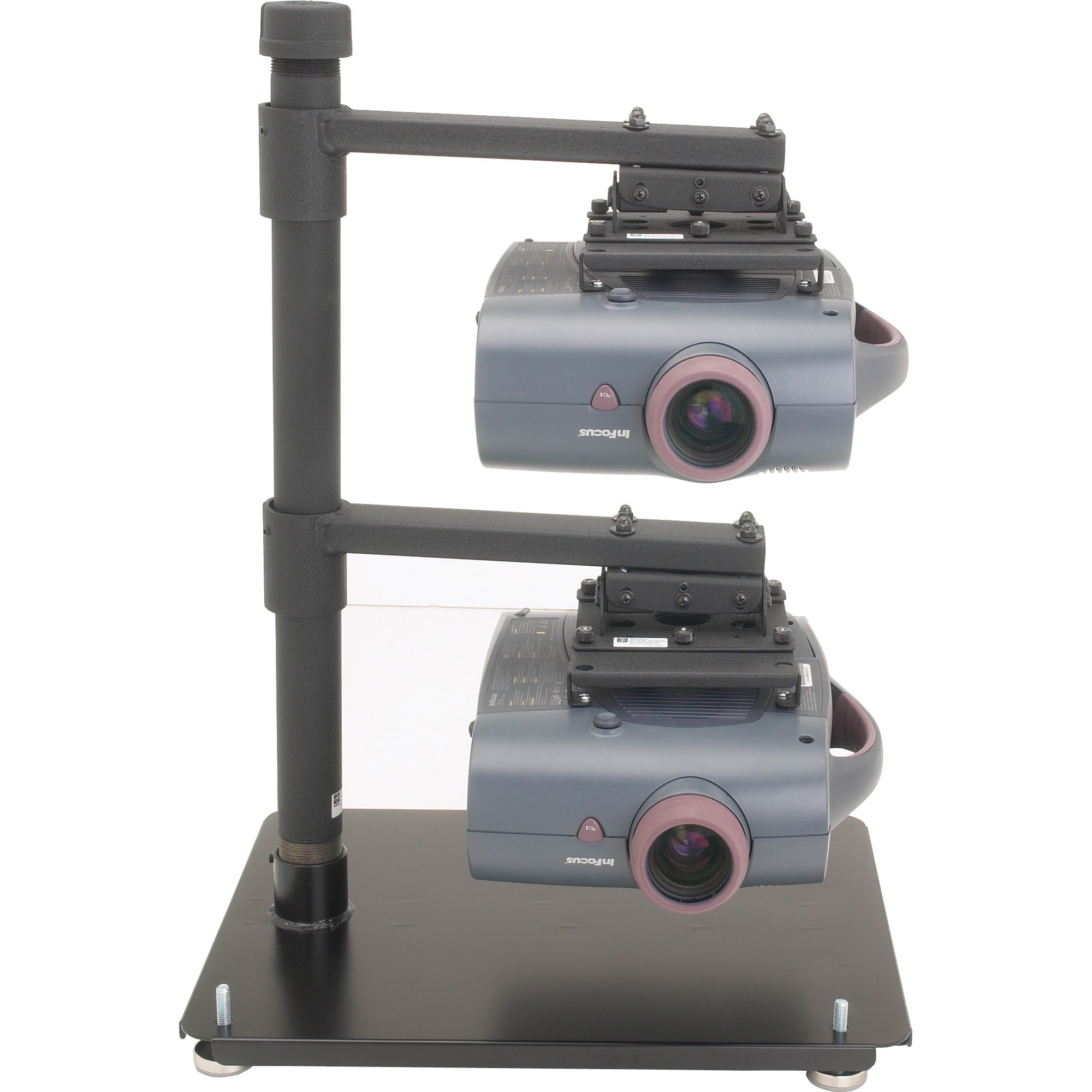

Chief LCD-PA Projector Arm

The Chief LCDPA Projector Arm is designed to support Chief RPA and LCDA series mounts.

• 1 x LCD-PA Projector Arm
• 4 x 1/4-20 X 1 1/2" Carriage Bolts
• 1 x Allen Wrench
• 4 x 1/4-20 Acorn Nuts
• 2 x 5/16-18 Set Screws
• 4 x 1/4 Flat Washers

• Projectors can be installed inverted or non-inverted
• Projectors can be installed to face the same direction or opposing directions
• Adjustable vertical projector spacing
• 360 degrees of rotation on arm
• Keeps registration with disconnect
• Convenient lamp and filter access

Projector Adjustments:

• Roll ±4 degrees
• Pitch ±25 degrees
• Yaw ±12 degrees

LCD/DLP Projectors
