RS-232 TO RS-422 CONVERTER-DB25M TO DB25F

Name: RS-232 TO RS-422 CONVERTER-DB25M TO DB25F
Brand: B+B SMARTWORX
SKU: 0376AH
Price: 118.77 USD
Availability: OutOfStock

B+B SMARTWORX

PCN#

0376AH

MFG#

422LCON

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

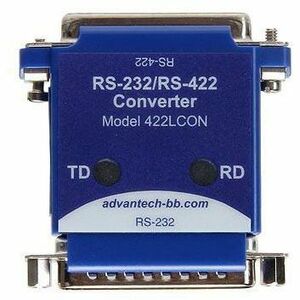

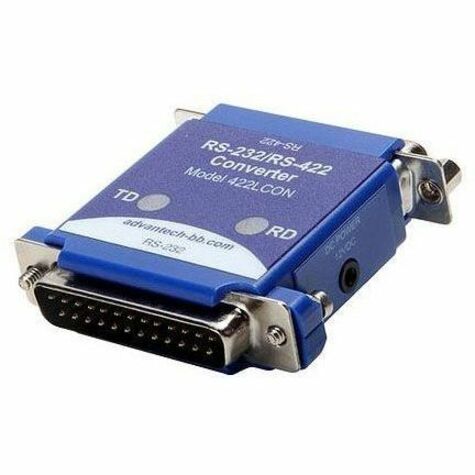

Advantech BB-422LCON Serial Converter, RS-232 DB-25 M to RS-422 DB25 F

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	422LCON
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	422LCON
Product Name	BB-422LCON Serial Converter, RS-232 DB-25 M to RS-422 DB25 F
Marketing Information	Mode 422LCON, non-isolated RS-232 to RS-422 converter, converts unbalanced RS-232 signals to balanced RS-422 signals. The RS-422 Standard uses a balanced voltage digital interface to allow communications of 90K bits per second on cable lengths of 1200 meters (4000 ft). Ten receivers can be connected to any one driver for use in multi-drop systems. The RS-232 port is a DB25 male connector with pins 2 (TD input) and 3 (RD output) supported. Protective Ground (pin 1) and Signal Ground (pin 7) are also connected. The RS-422 port is a DB25 female connector with Send Data outputs on pins 2 and 14, and Receive Data inputs on pins 5 and 17. Protective Ground (pin 1) and Signal Ground (pin 7) are connected through to the RS-232 connector. LEDs indicate Transmit Data and Receive Data. An external power supply is required (not included, sold separately).
Product Type	Data Transfer Adapter

Technical Information

Adapter Type	Serial
Connector Type on First End	DB-25 RS-232 Serial - Male
Connector Gender on First End	Male
Connector on First End Details	1 x DB-25 RS-232 Serial Male
Connector Type on Second End	DB-25 RS-422 Serial
Connector Gender on Second End	Female
Connector on Second End Details	1 x DB-25 RS-422 Serial Female

Miscellaneous

Environmentally Friendly	Yes
Environmental Certification	RoHS EU RoHS EU WEEE
