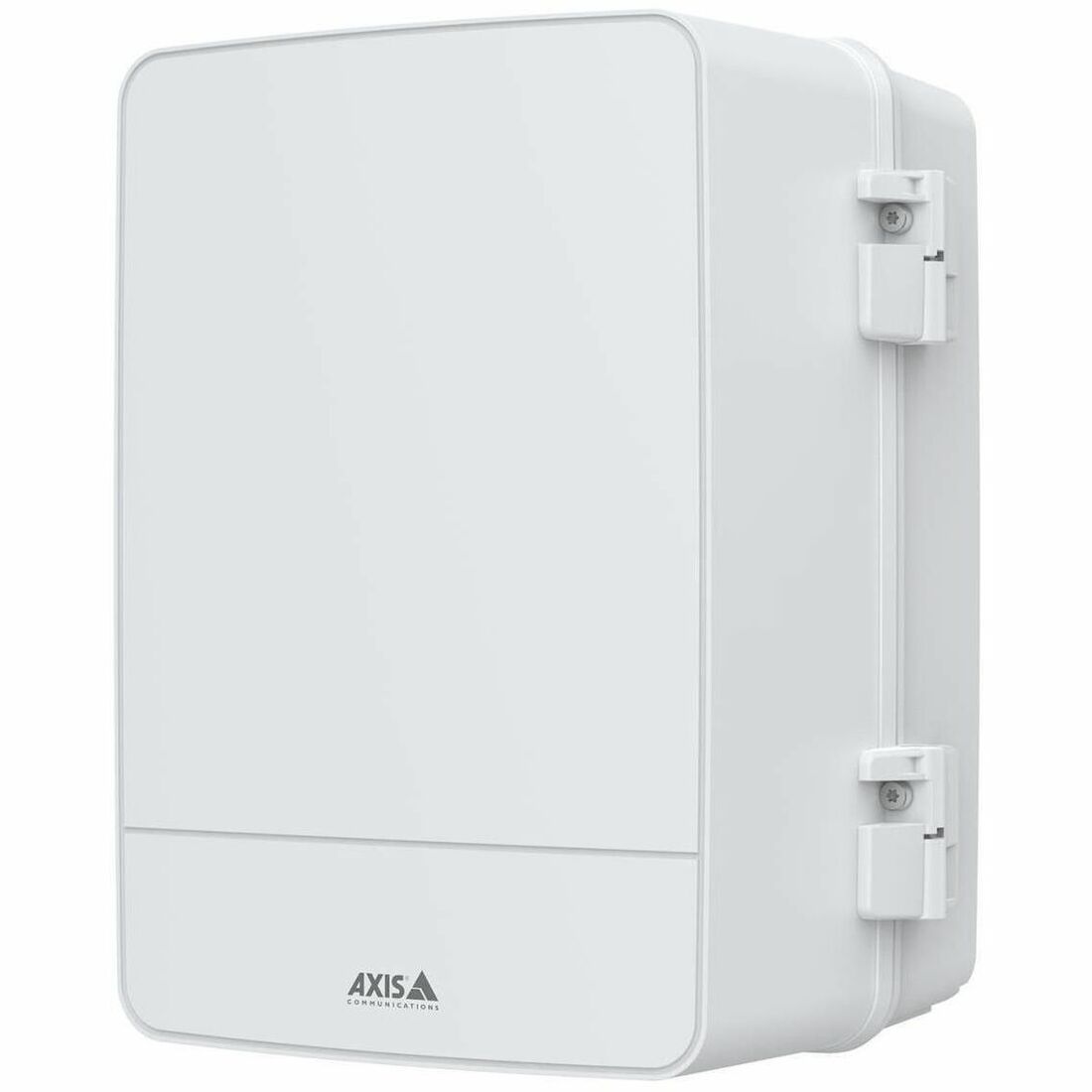

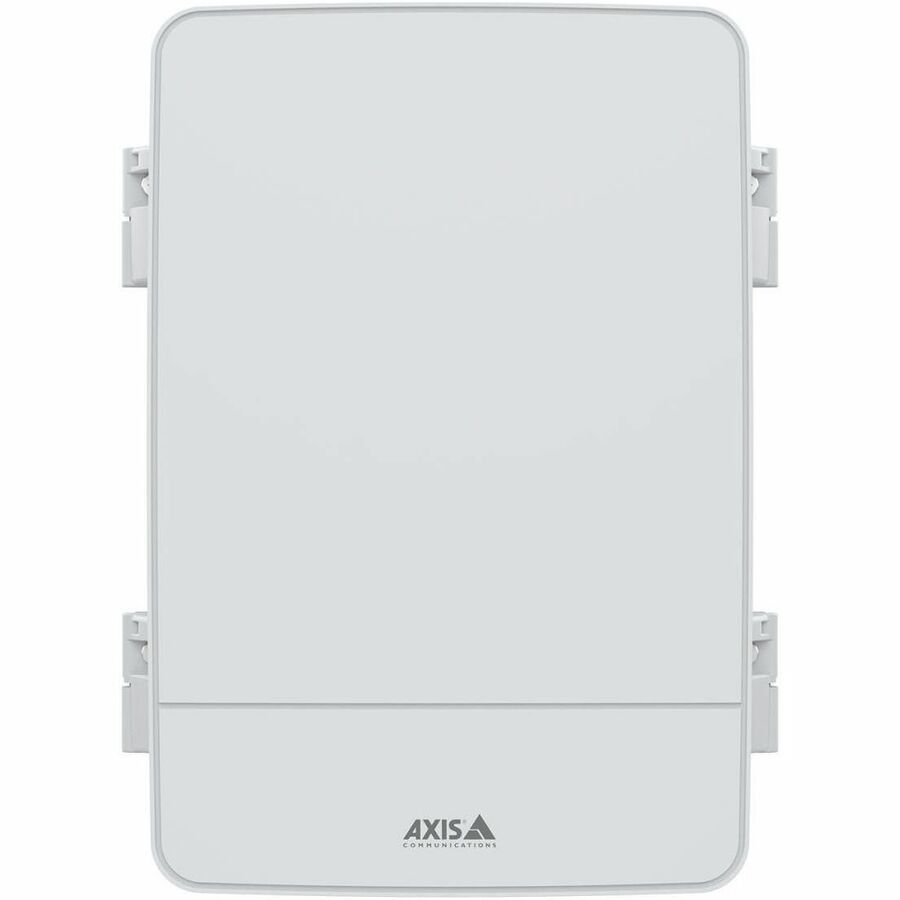

AXIS A1214 Network Door Controller Kit

This kit includes everything you need to control four doors. With intelligence on the edge, it can internally handle all tasks related to door access even if the network is down.

Flexible and cost efficient

This all-in-one, out-of-the-box-ready kit can control up to four doors. It includes four AXIS A1210-B units and AXIS TA1601 Mounting Plate enclosed in AXIS TQ1808-VE Surveillance Cabinet, a robust, vandal-resistant IK10, IP66, and NEMA 4x-rated cabinet. It offers fast and easy installation. Plus, if needed, you can take out and mount each door controller individually.

Reliable and secure

Each of the four barebone units feature two reader connections as well as a Form C relay to power the lock. Thanks to intelligence on the edge, it can internally handle all tasks related to door access-even if the network is down. Additionally, built-in cybersecurity features help prevent unauthorized access and safeguard your system.

Grows with your needs

AXIS A1214 Kit is fully integrated within Axis end-to-end solutions and supported by our partner solutions. This scalable solution is optimized for both small and large installations and designed to meet your changing needs as they develop. You can store up to 250k credentials and 250k event logs on each of the four barebone units. Furthermore, it ensures flexible and secure authentication using different types of credentials. Such as, card or PIN codes, as well as dynamic QR code for visitor access, and license plates for vehicle access.

• White
• Stainless Steel

5.97 kg (13.2 lb)

• A1214 Network Door Controller Kit
• Installation guide
• Connector kit (mounted)
• Grounding kit, cable ties
• Pre-mounted cable gaskets
• Pre-mounted DIN rail
• Cable clamps
• Cable straps
• Power cover
• Device mounting bracket

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
