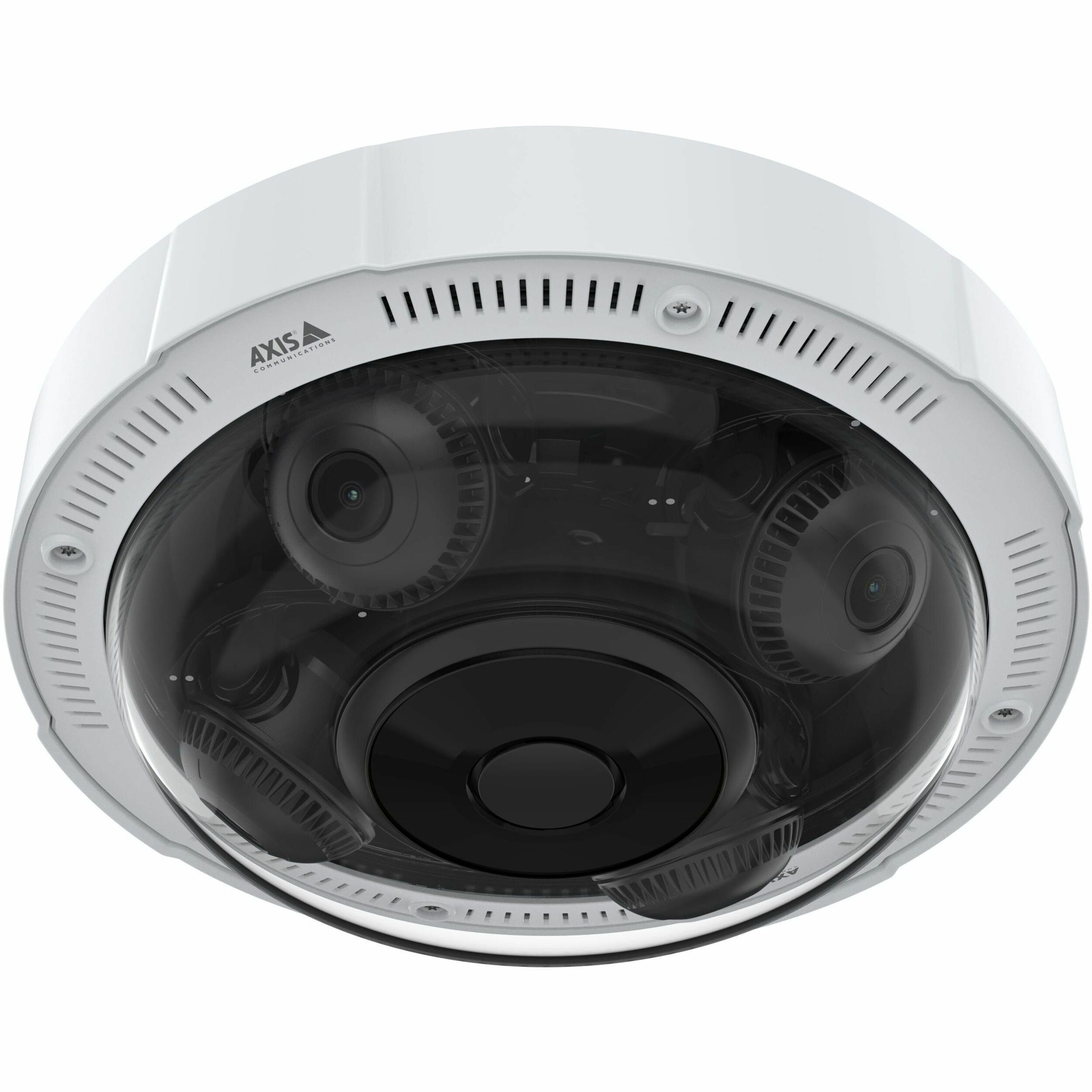

AXIS Panoramic P3737-PLE 5 Megapixel 2K Network Camera - Color - White - TAA Compliant

Name: AXIS Panoramic P3737-PLE 5 Megapixel 2K Network Camera - Color - White - TAA Compliant
Brand: AXIS
SKU: JJ6712
Price: 1636.05 USD
Availability: InStock

AXIS

PCN#

JJ6712

MFG#

02634-001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,636.05

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Zipstream, Motion JPEG, H.265 (MPEG
H Part 2/HEVC) Main Profile, H.264B (MPEG
4 Part 10/AVC), H.264M (MPEG
4 Part 10/AVC), H.264H (MPEG
4 Part 10/AVC), H.264B, H.264M, H.264H, H.265B, H.265H, ...
2560 x 1440
3.20 mm
8.10 mm Varifocal Lens
2.5x Optical
30 fps
CMOS
Gigabit Ethernet
IK09
IP66, IP67
Tamper Resistant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 6 lbs.

AXIS Panoramic P3737-PLE 5 Megapixel 2K Network Camera - Color - White - TAA Compliant

Overview

Tech Specs

Specifications

Manufacturer	Axis Communications
Manufacturer Part Number	02634001
Manufacturer Website Address	http://www.axis.com
Brand Name	AXIS
Product Line	Panoramic
Product Series	P37
Product Model	P3737-PLE
Product Name	P3737-PLE Panoramic Camera
Marketing Information	This multidirectional camera offers four channels with 5 MP per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device's integrity and protects it from unauthorized access > 4x 5 MP at 20 fps per channel > 360° IR illumination with individually controlled LEDs > Flexible mounting options > Support for advanced analytics > Axis Edge Vault safeguards the device
Product Type	Network Camera

Technical Information

Recording Formats	2K
HD Recording	Yes
Camera Iris	Fixed

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.7"
Color Supported	Color
Field of View	Horizontal field of view: 99°-37° Vertical field of view: 70°-28° Diagonal field of view: 134°-47°
Effective Camera Resolution	5 Megapixel
Number of Sensors	4

Video

Video Formats	Zipstream Motion JPEG H.265 (MPEG-H Part 2/HEVC) Main Profile H.264B (MPEG-4 Part 10/AVC) H.264M (MPEG-4 Part 10/AVC) H.264H (MPEG-4 Part 10/AVC) H.264B H.264M H.264H H.265B H.265H H.265M
Maximum Video Resolution	2560 x 1440
Maximum Frame Rate	30 fps

Lens

Lens Type	Varifocal
Minimum Focal Length	3.20 mm
Maximum Focal Length	8.10 mm
Lens Included	Yes
Minimum Aperture	f/3.2
Maximum Aperture	f/1.9
Optical Zoom	2.5x

Exposure

Shortest Shutter Speed	1/28000 Second
Longest Shutter Speed	1.5 Second

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Gigabit Ethernet
Protocols	IPv4 IPv6 USGv6 ICMPv4/ICMPv6 HTTP HTTPS TLS FTP SFTP SMTP SNMP (v1/v2c/v3) DNSv6 DNS NTP RTSP IGMPv1/v2/v3 DHCPv4/v6 LLDP MQTT SMB/CIFS mDNS (Bonjour) UPnP SNMPv1/v2c/v3 (MIB2) DNS/DNSv6 DDNS NTS RTP SRTP/RTSPS TCP UDP RTCP ICMP DHCPv6 ARP SSH CDP MQTT v3.1.1 UDP/TCP/TLS IEEE 802.1X IEEE 802.1AR
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Maximum Power Consumption	23.30 W
Power Source Type	PoE

Physical Characteristics

Durability	Tamper Resistant
Color Family	White
Product Color	White
Weight (Approximate)	4.41 lb

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	122°F (50°C)
Maximum Operating Humidity	100%

Miscellaneous

Features	Back Light Compensation (BLC) Highlight Compensation (HLC) Wide Dynamic Range 3D Digital Noise Reduction Noise Detection Mirror Password Protection Cross Line Detection Vehicle Detection Human Detection Motion Detection
Package Contents	P3737-PLE Panoramic Camera installation guide connector guard cable gaskets
Impact Protection Rating	IK09
Ingress Protection Rating	IP66 IP67
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
