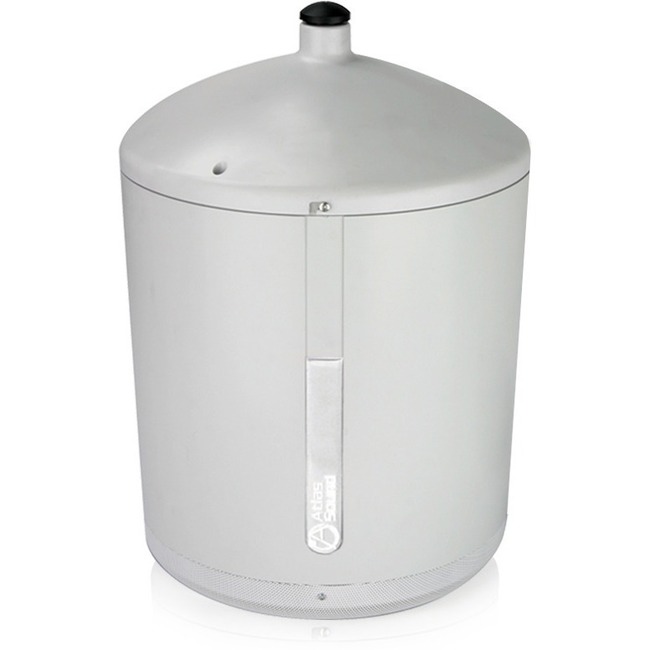

4IN 2-WAY PENDENT MOUNT SPEAKER W/ 16WATT 70.7V TRANSFORMER - WHITE

Name: 4IN 2-WAY PENDENT MOUNT SPEAKER W/ 16WATT 70.7V TRANSFORMER - WHITE
Brand: ATLASIED
SKU: RF6184
Price: 167.81 USD
Availability: InStock

ATLASIED

PCN#

RF6184

MFG#

PM4FA-WH

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$167.81

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

4" Polypropylene Cone Woofer
Polyetherimide Dome Tweeter
70 Hz to 20 kHz
8 Ohm

Product Condition: New and Factory Fresh

Shipping Weight: 12 lbs.

AtlasIED PM4FA 2-way Indoor Pendant Mount, Ceiling Mountable Speaker - 25 W RMS - White

Overview

Tech Specs

Specifications

Manufacturer	AtlasIED
Manufacturer Part Number	PM4FA-WH
Manufacturer Website Address	http://www.atlassound.com
Brand Name	AtlasIED
Product Model	PM4FA
Product Name	4" 2-Way Pendent Mount Speaker with 16-Watt 70.7V Transformer - White
Marketing Information	General Description The AtlasIED PM4FA features the familiar response and dispersion of AtlasIED's model FA134 high performance 4" Strategy Series driver. This loudspeaker is the same FA Series device used in AtlasIED's successful model FAP42T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM4FA provides natural sounding, wide coverage for low height installations while retaining impressive full range frequency response for both music and paging applications. Attaching a PM4FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3 /4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC™ brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (up to 45°). Either installation solution is discreetly implemented via the PM series innovative top cover design concealment cap. This "cap" includes a cable access plug that is easily removed for down pipe mounting. The cover also completely conceals the speaker cable terminations and the suspension anchor points. Several packages are offered to suit various coverage pattern and installation scenarios. For low ceilings, AtlasIED offers a discrete enclosure system containing an ultra wide coverage 4" FA series driver. For higher ceiling applications, AtlasIED PM series answers the need for a variety of budget and performance requirements with three different 8" driver options, factory assembled into in a larger yet still attractive pedant style enclosure Available in black or white enclosure finish.
Packaged Quantity	1
Product Type	Speaker

Technical Information

Crossover Type	2-way
RMS Output Power	25 W
Woofer Driver Size	4"
Woofer Driver Material	Polypropylene Cone
Tweeter Driver Material	Polyetherimide Dome
Minimum Frequency Response	70 Hz
Maximum Frequency Response	20 kHz
Impedance	8 Ohm
Sensitivity	88 dB
Features	Bass Reflex
Ingress Protection (IP) Rating	IP30

Physical Characteristics

Product Color	White
Form Factor	Pendant Mount Ceiling Mountable
Speaker Installation	Indoor
Height	13.9"
Diameter	9.3"
Weight (Approximate)	13 lb

Miscellaneous

Package Contents	4" 2-Way Pendent Mount Speaker with 16-Watt 70.7V Transformer - White 1 x Cable Kit (3m) 1 x Manual
Country of Origin	Taiwan
