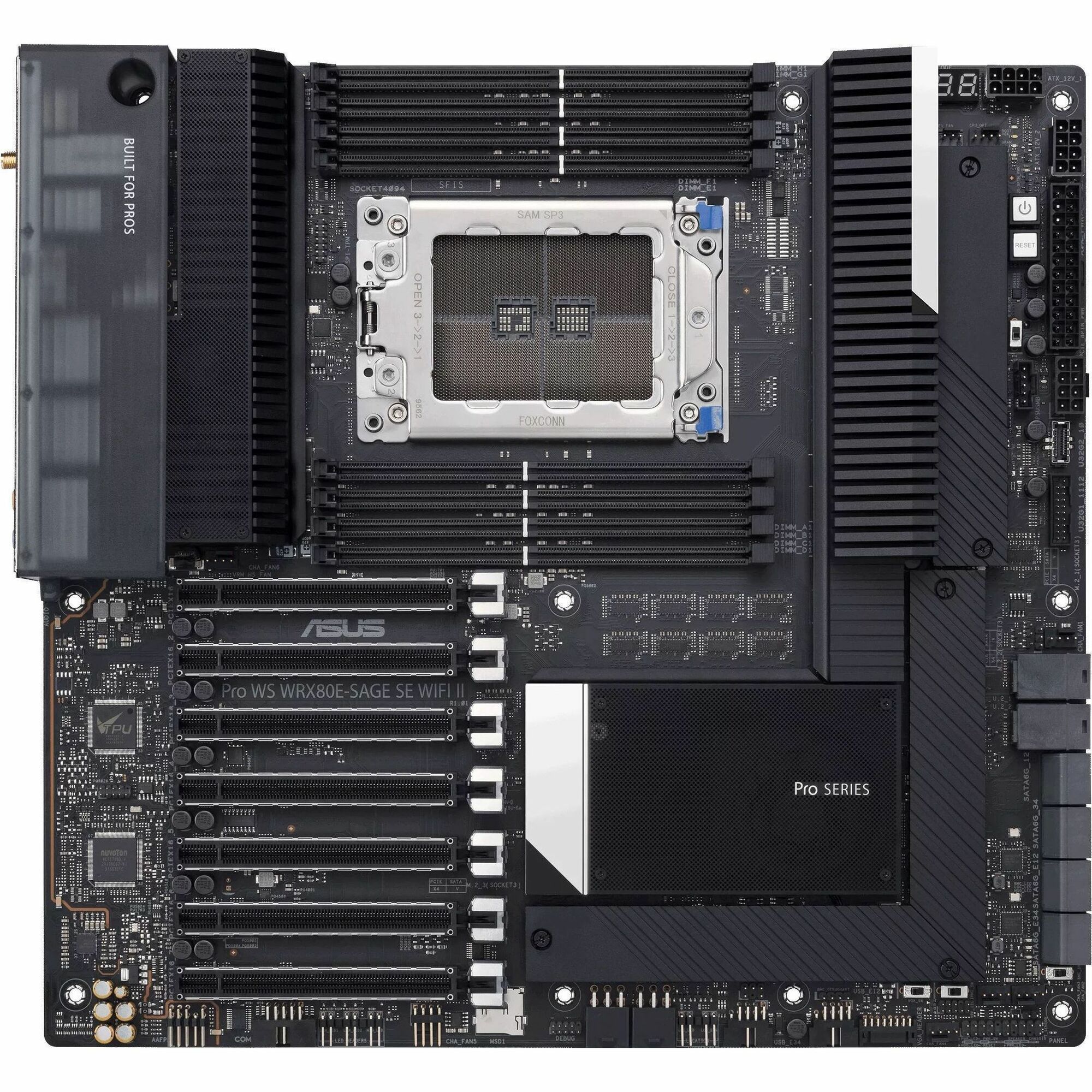

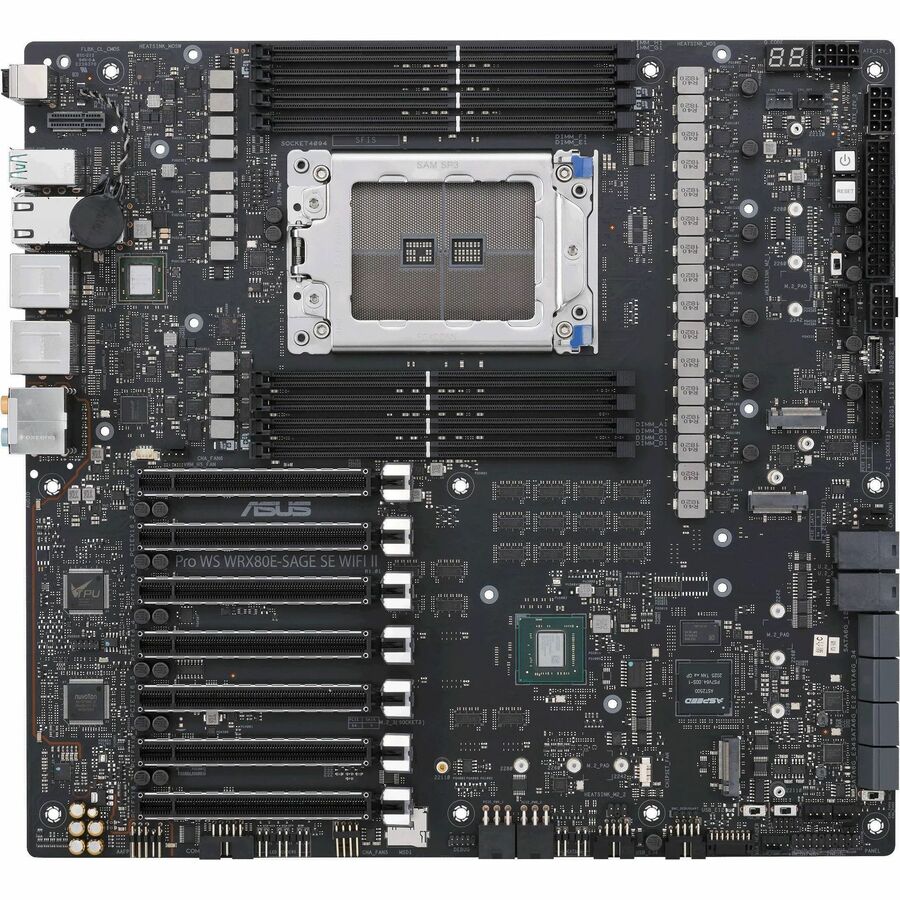

PRO WS WRX80E-SAGE SE WIFI II AMD WRX80 RYZEN SI PACKAGE

AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages, and WIFI 6E

• AMD sWRX8 Socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors, with overclocking available to dip into untapped potential and performance

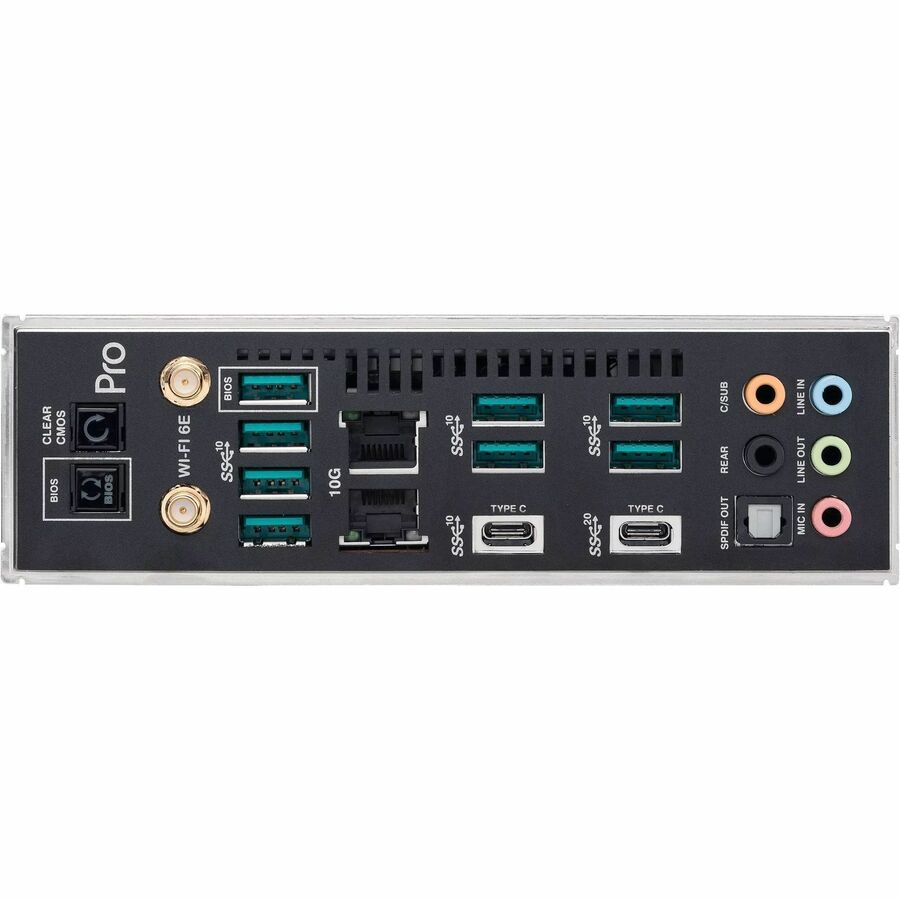

• Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel^®X550-AT2 dual 10Gb Ethernet, WiFi 6E
• ASMB9-iKVM remote management: AST-2500 BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
• Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
• Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security

Ultimate power for professional productivity

The ASUS Pro WS WRX80E-SAGE SE WIFI II is engineered to unleash the incredible power of the latest AMD Ryzen™ Threadripper™ Pro series processors, with support for overclocking to dip into untapped potential and performance. This reliable multi-core CPU foundation is the ideal choice for professional creative workloads like video editing and 3D rendering. Additionally, seven PCIe® 4.0 slots with SafeSlot fortification can deliver exceptional performance for the latest high-powered graphics cards and storage devices.

FUNCTION-FIRST AESTHETICS Low-profile professionalism

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI II presents a professional, low-profile look for content creators.

Multi-GPU support

Pro WS WRX80E-SAGE SE WIFI II features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

ULTRAFAST CONNECTIVITY TO POWER CREATIVITY | 3 M.2 PCIe 4.0

Pro WS WRX80E-SAGE SE WIFI II includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three M.2 slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads and comes with ASUS Q-Latch.

More storage

With NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput - up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.

Supreme memory capability

The ASUS Pro WS WRX80E-SAGE SE WIFI II supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes. Being infused with proprietary memory trace layout that improve signal integrity and mitigate noise, this motherboard enables DDR4 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.

WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

• DIMM
• UDIMM
• RDIMM
• LRDIMM

• PCI Express 3.0
• PCI Express 4.0

• PRO WS WRX80E-SAGE SE WIFI II Desktop Motherboard
• 6 x SATA 6Gb/s cables
• 1 x VGA cable

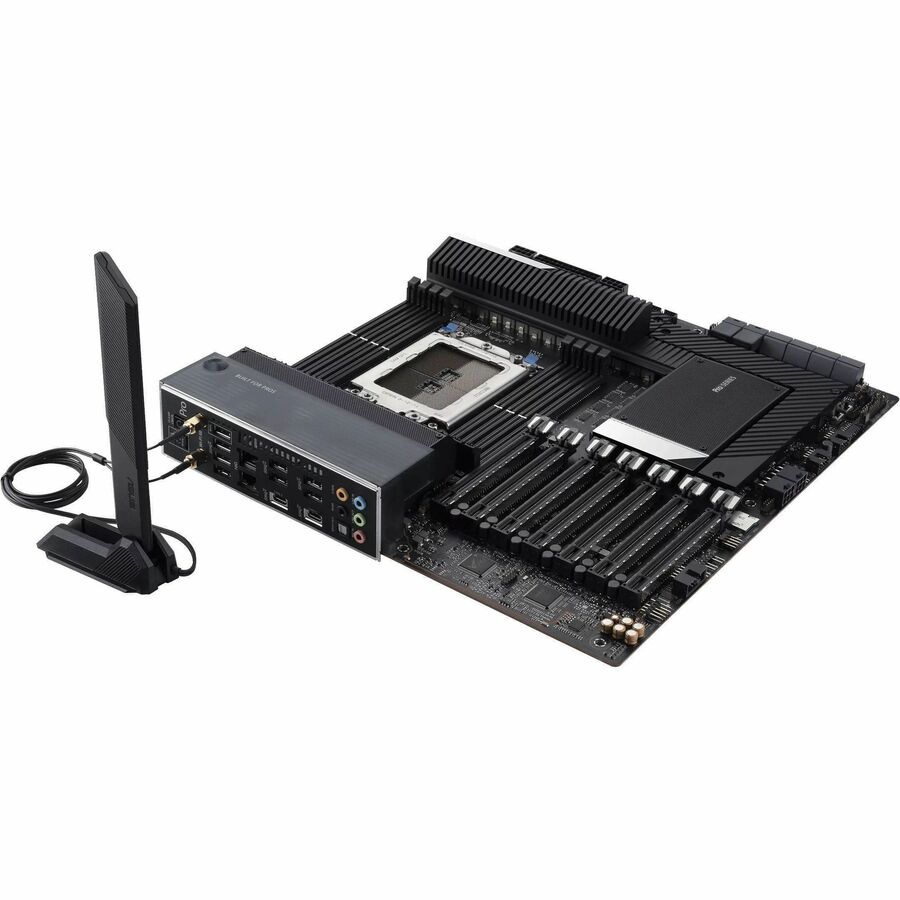

• 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

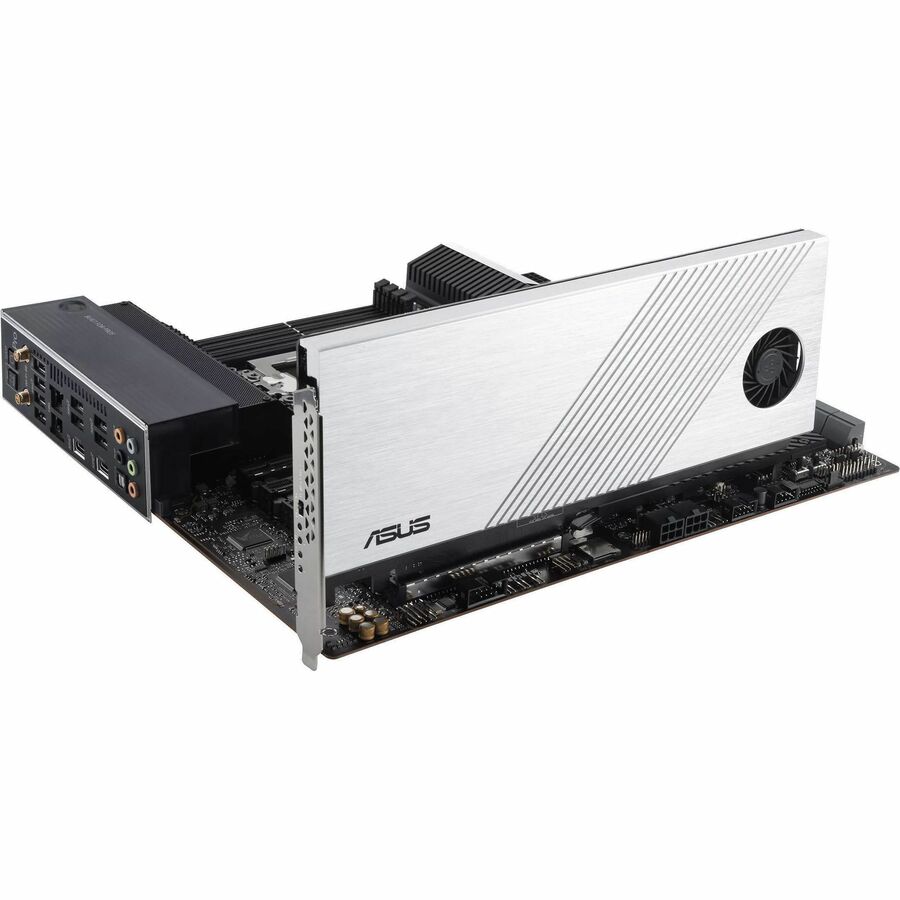

• 1 x Hyper M.2 X16 Gen 4 Card
• 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card
• 3 x Q Latch
• 7 x M.2 Rubber Packages
• 1 x Q-connector
• 1 x Support DVD
• 1 x User manual
