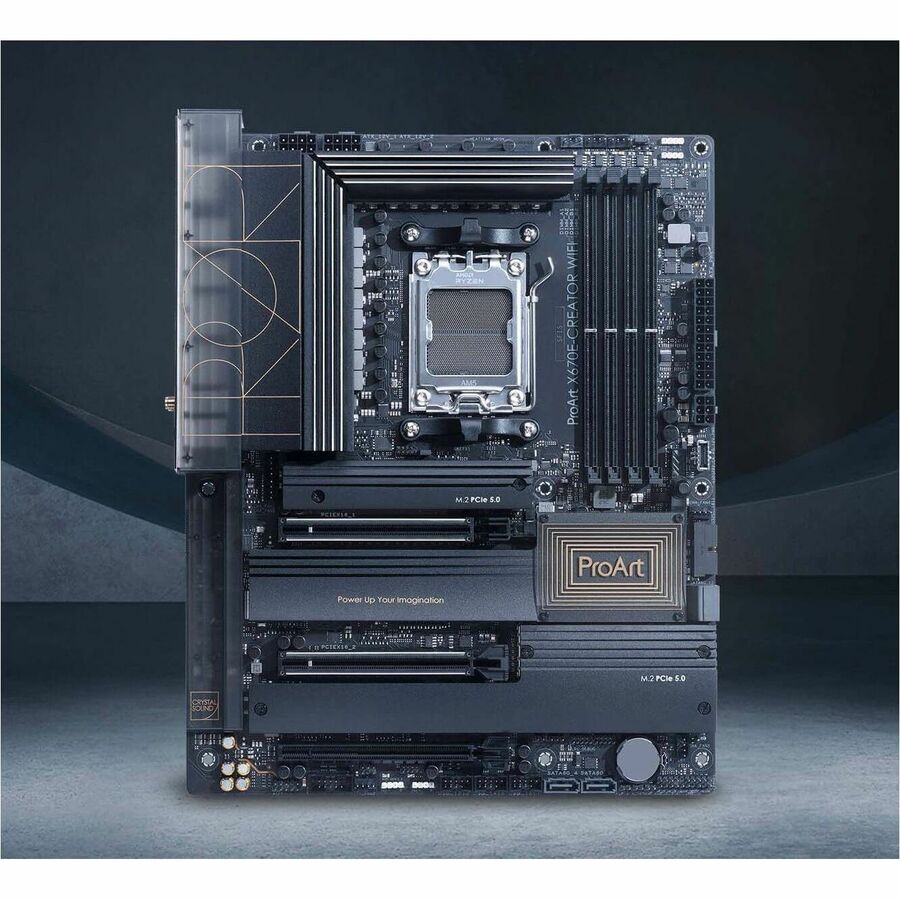

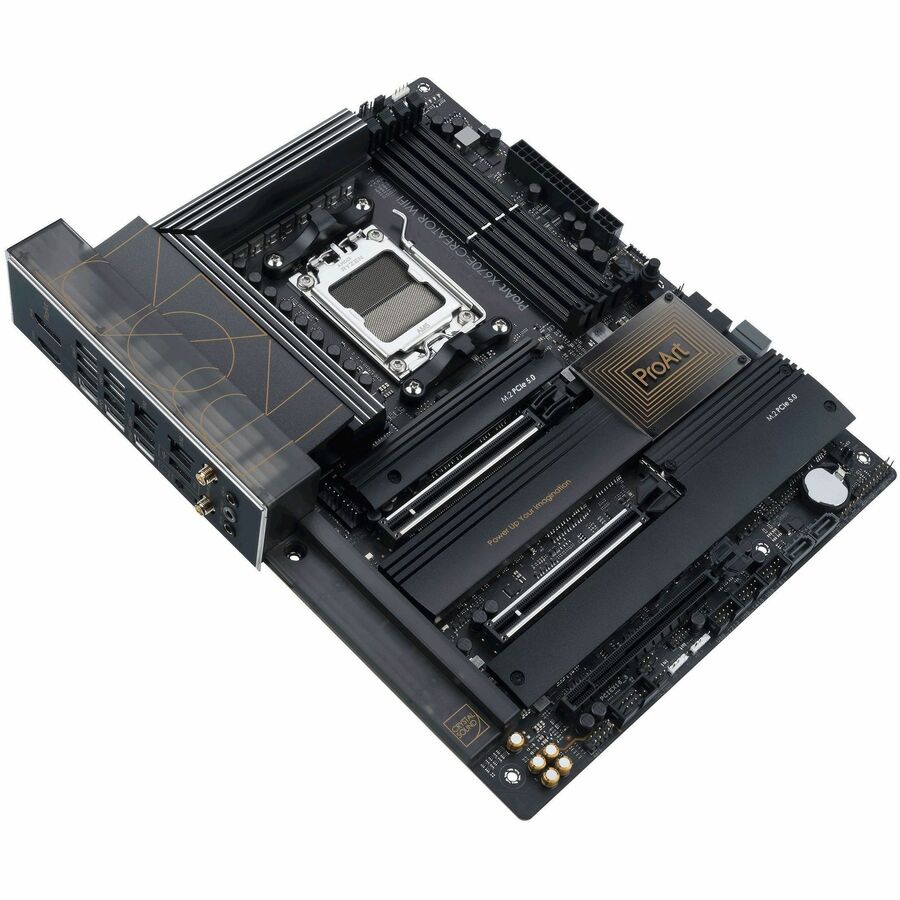

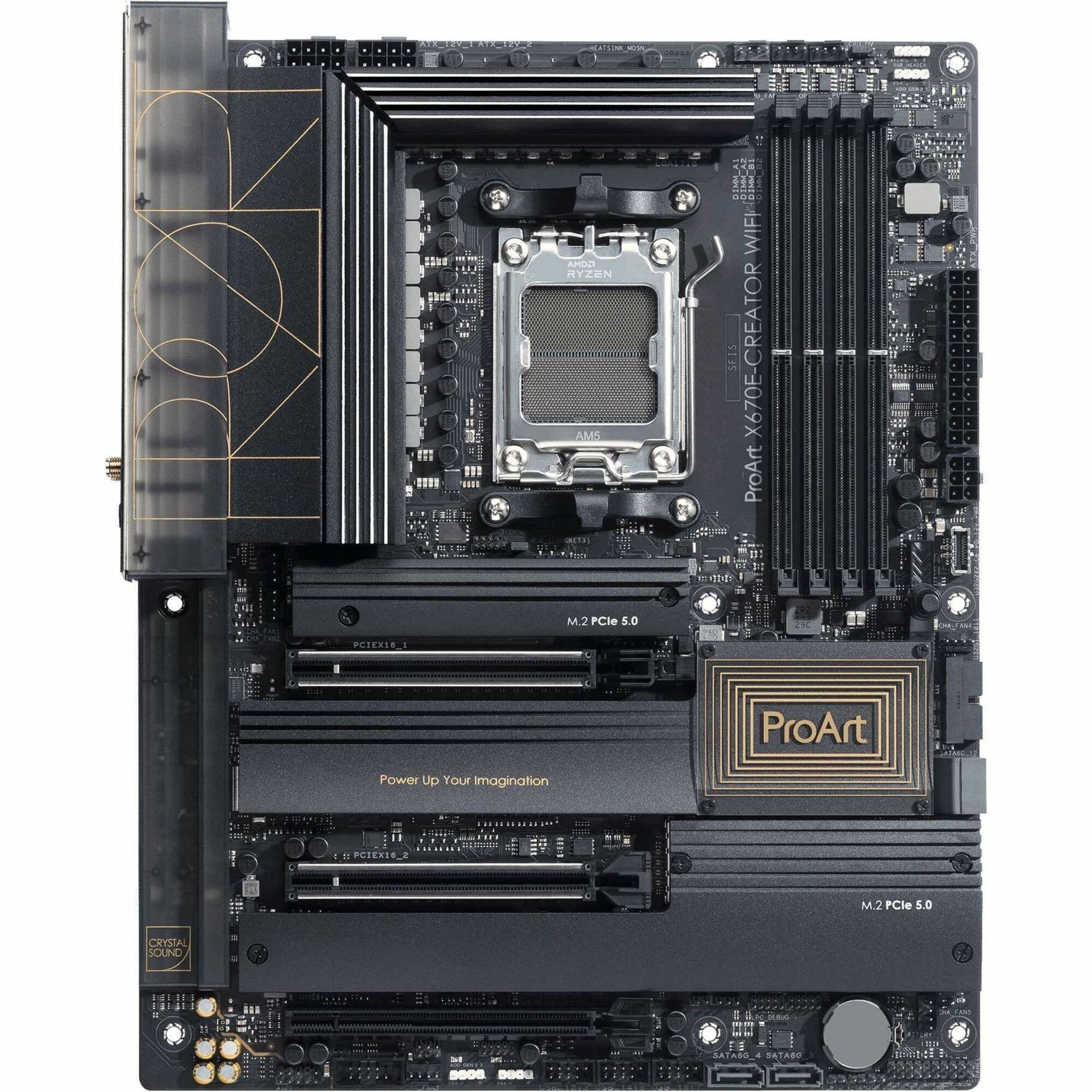

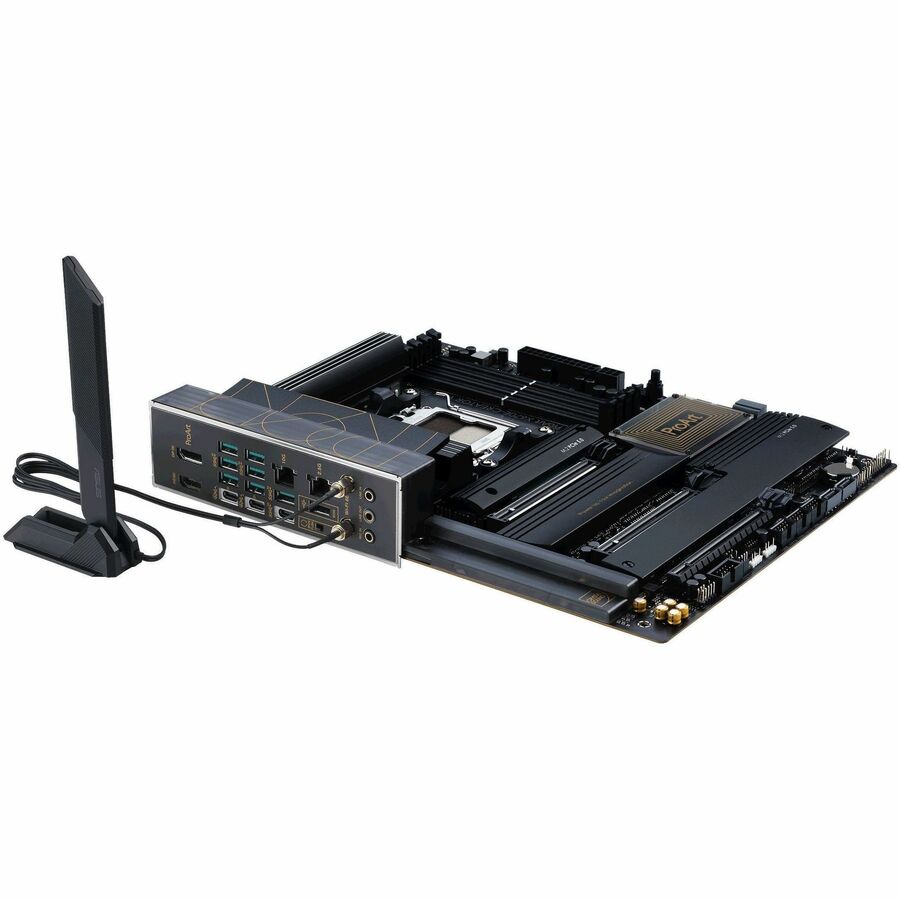

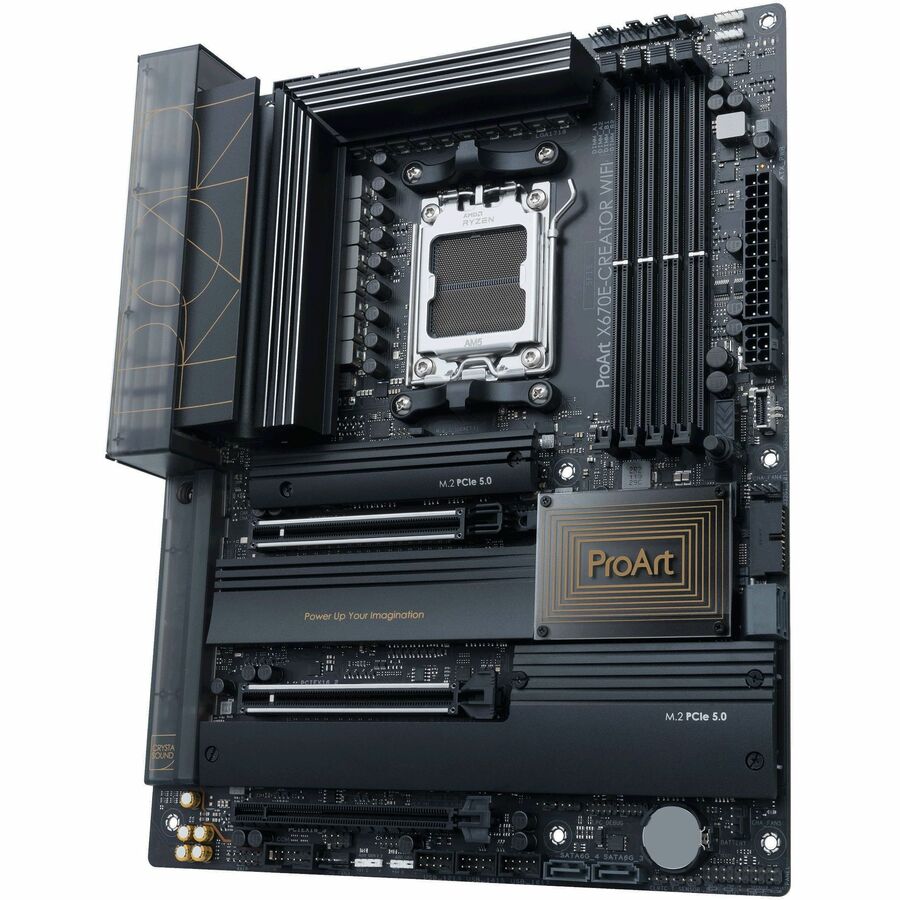

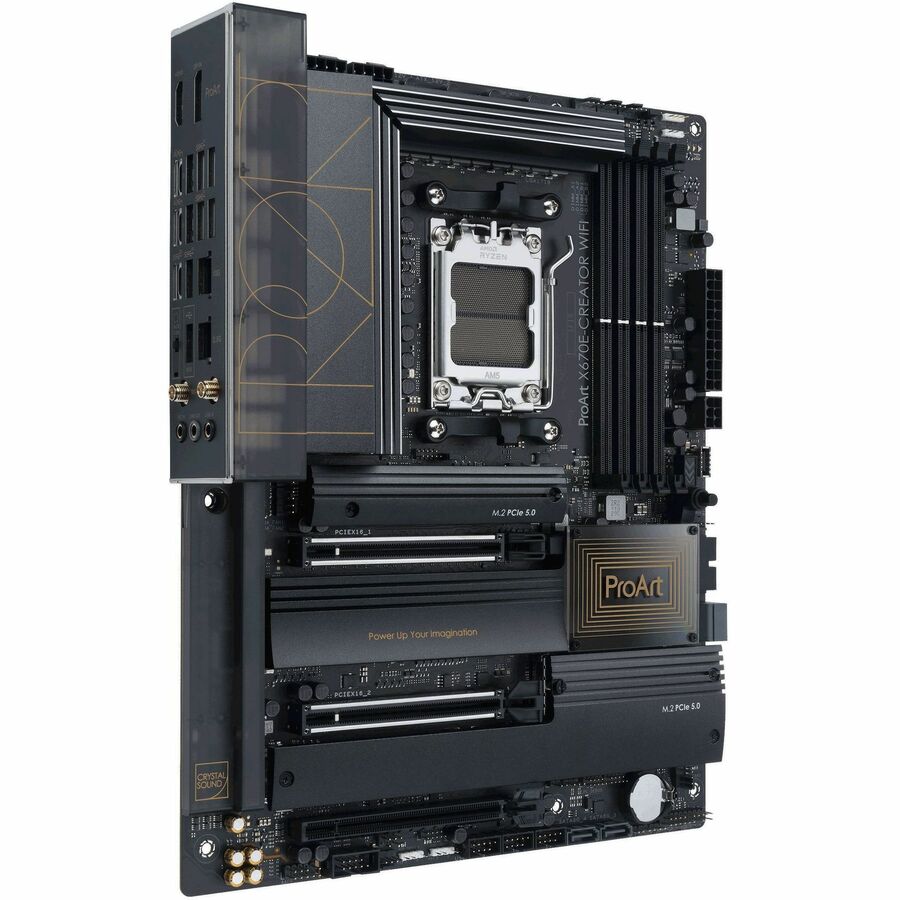

Asus ProArt X670E-CREATOR WIFI Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

ProArt X670E-Creator WiFi

The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4^®, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.

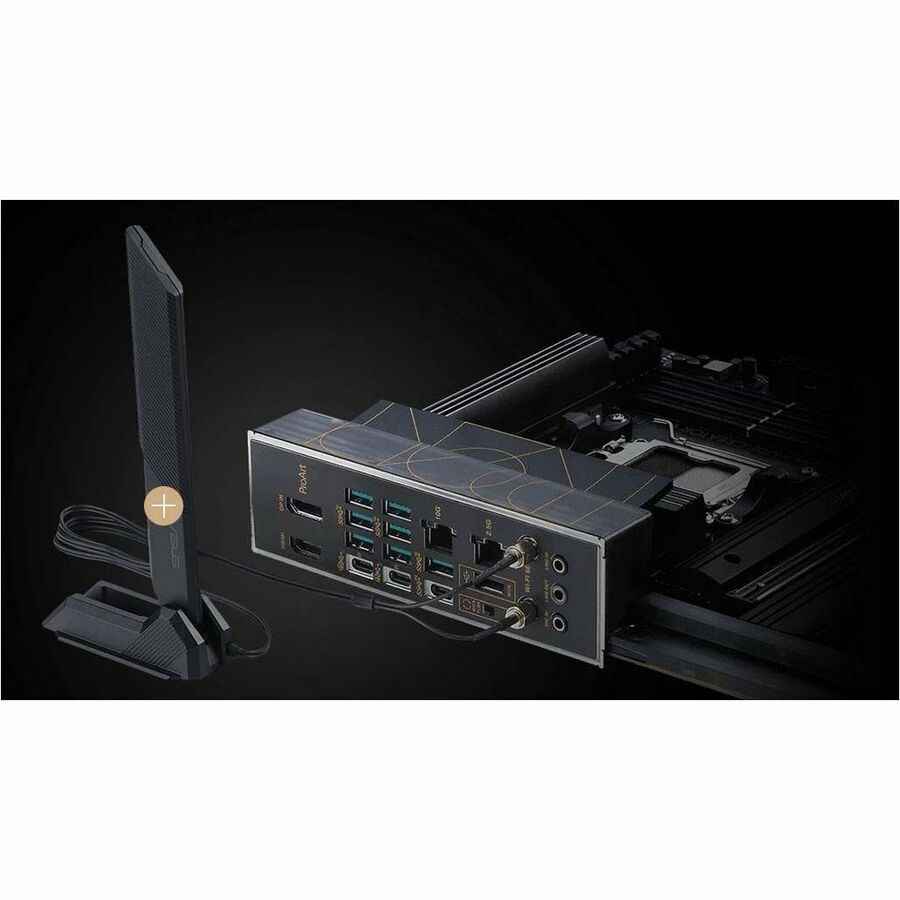

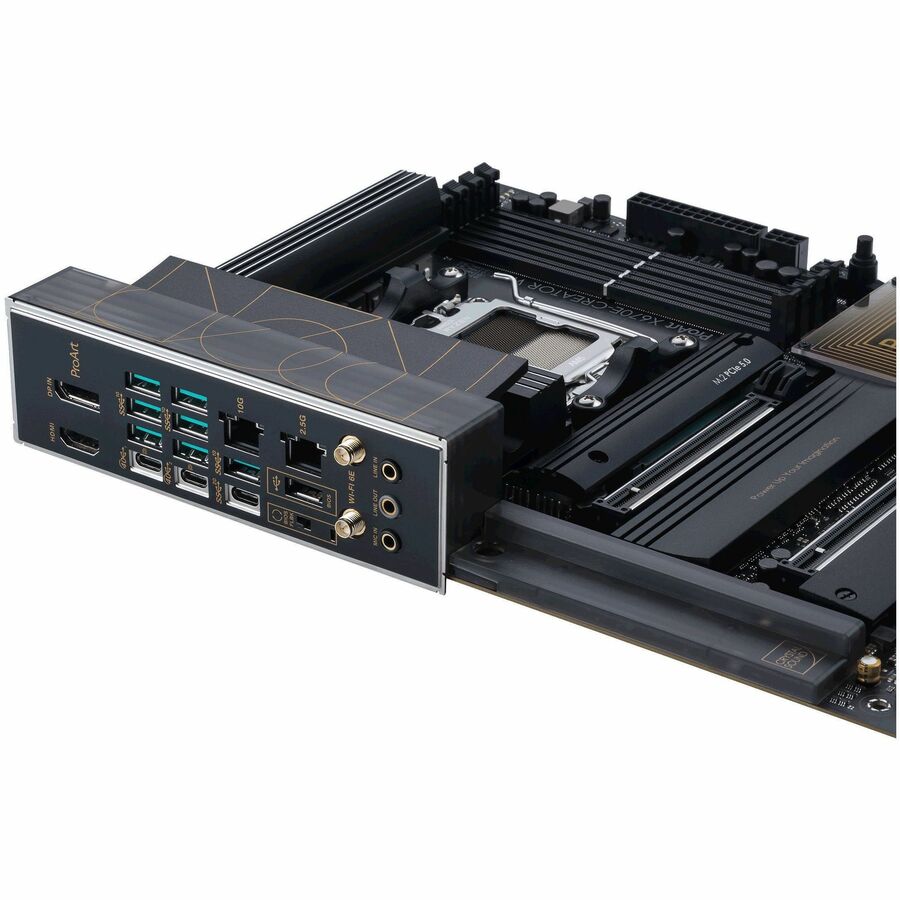

It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

All you need for maximum productivity

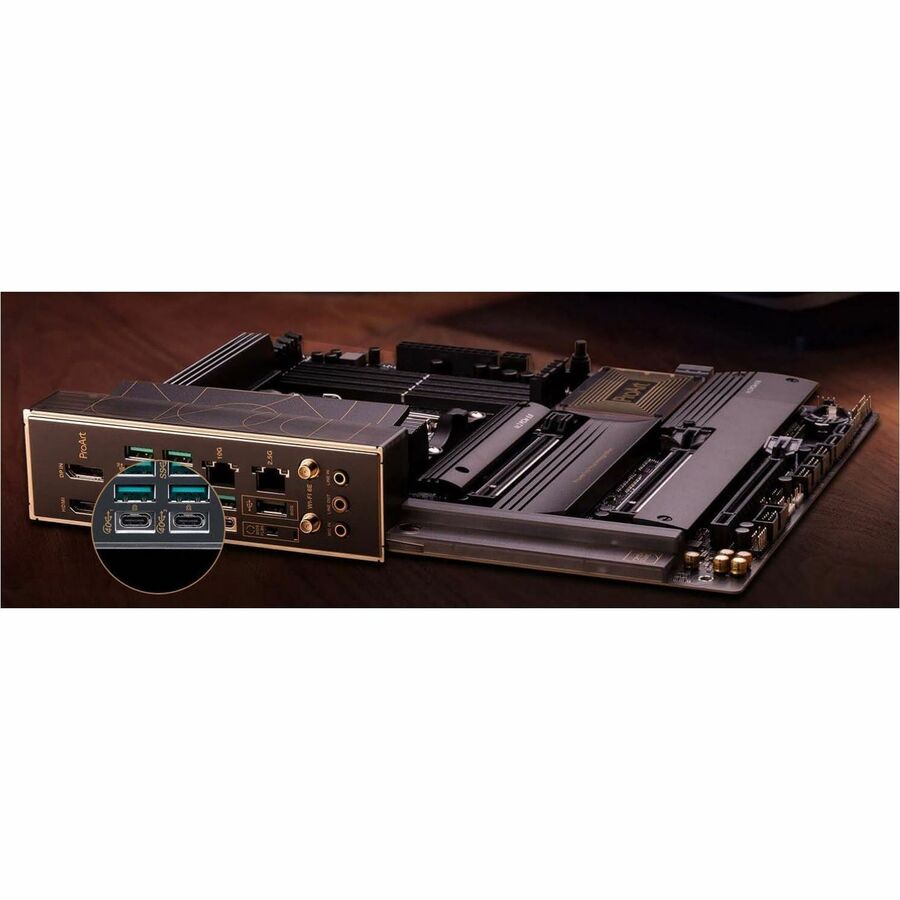

Dual USB4^®connectivity

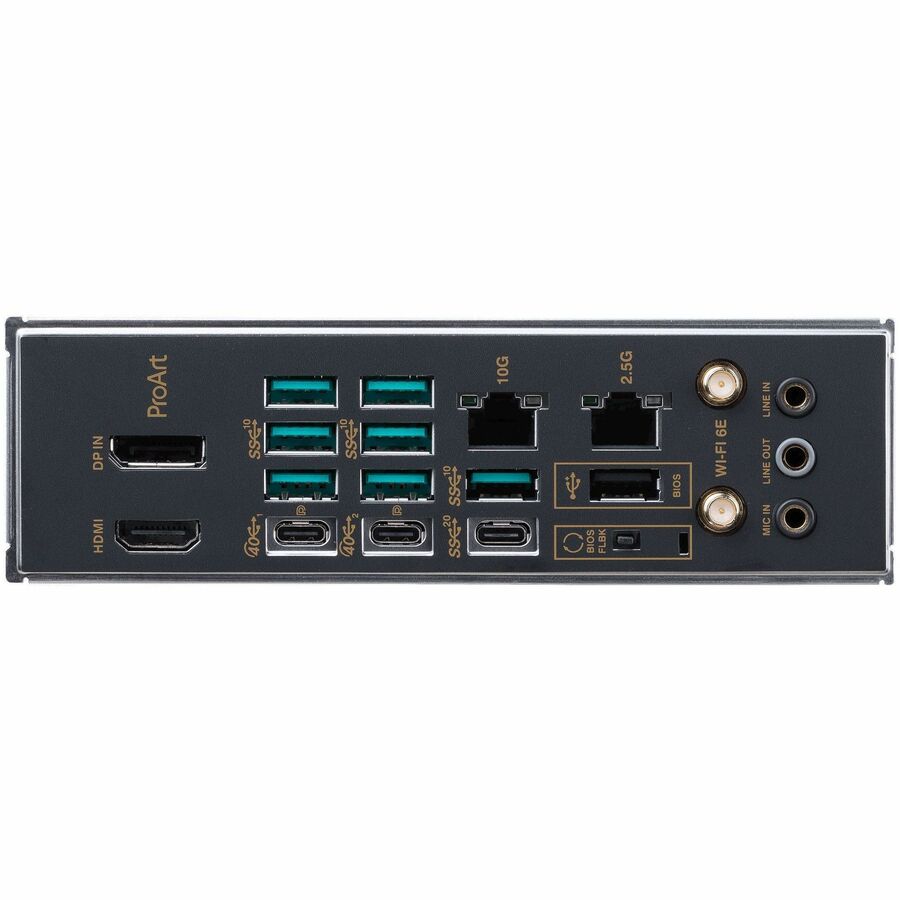

Get immersed in your creations with two USB4^®ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4^®port.

Ultrafast networking | WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

PCIe 5.0 support

Fully embracing the new standard, the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four onboard M.2 slots

The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

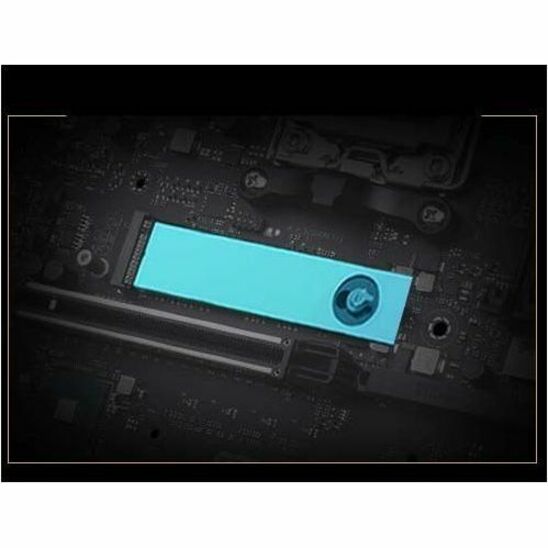

M.2 slot heatsinks and backplate

An integrated M.2 backplate helps ensure that high-performance PCIe 5.0 drives deliver peak performance, even when airflow is restricted.

PCIe 5.0 expansion slots

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

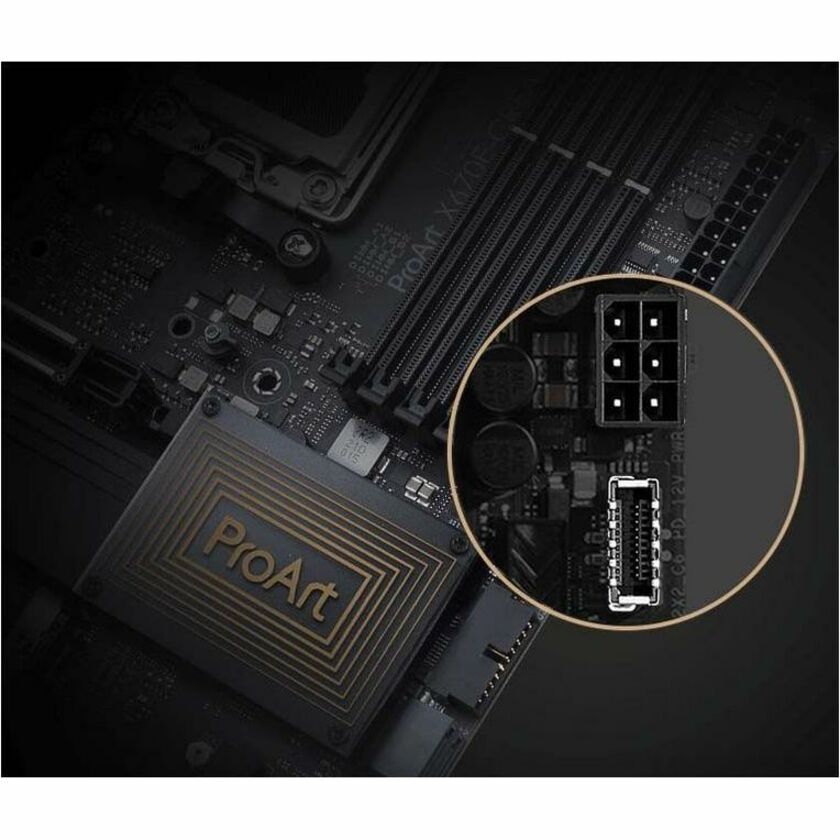

Quick charging your USB devices USB 3.2 Gen 2x2 Type-C^®front-panelconnector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

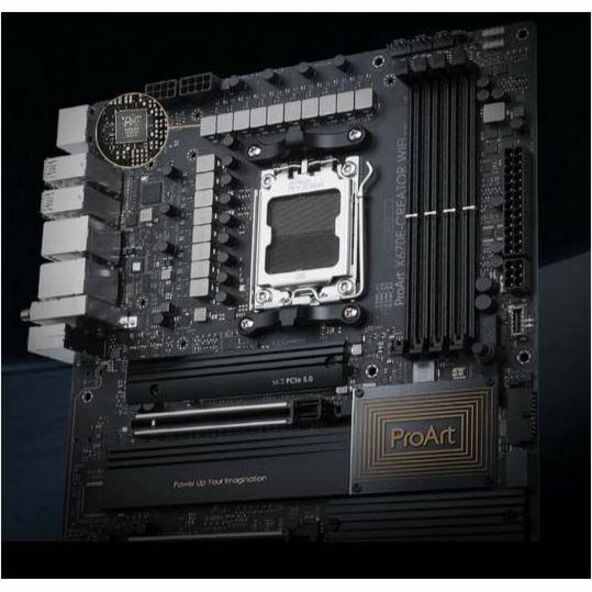

The core of your powerful workstation | Robust power design 16+2 teamed power stages

Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.

Digi+ power control

The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

• Ryzen 5
• Ryzen 7

• DIMM
• UDIMM

• 8000 MHz
• 7800 MHz
• 7600 MHz
• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

• 0
• 1
• 10

• PCI Express 4.0
• PCI Express 5.0

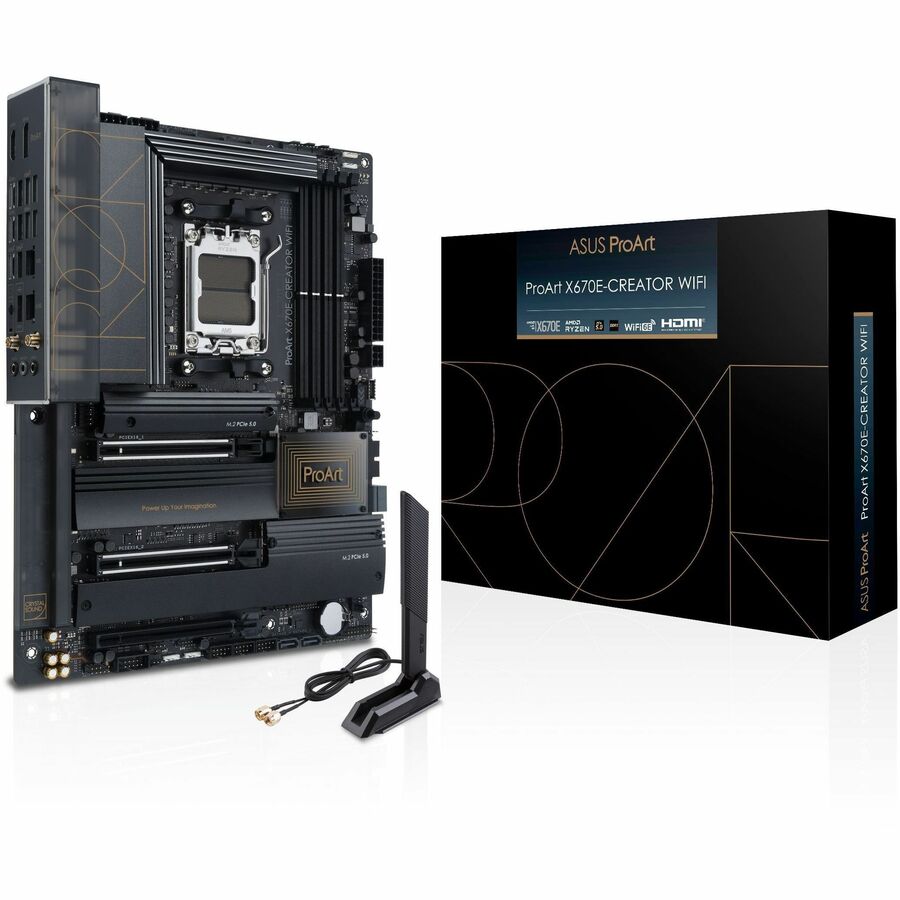

• ProArt X670E-CREATOR WIFI Desktop Motherboard
• 1 x DisplayPort cable
• 4 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x Q-connector
• 1 x M.2 Q-Latch package for M.2 backplate
• 2 x Rubber Packages for M.2
• 1 x Rubber Package for M.2 backplate
• 1 x Screw packages for M.2 SSD
• 1 x ProArt ruler
• 1 x ACC Express Activation Key Card
• 1 x User guide
