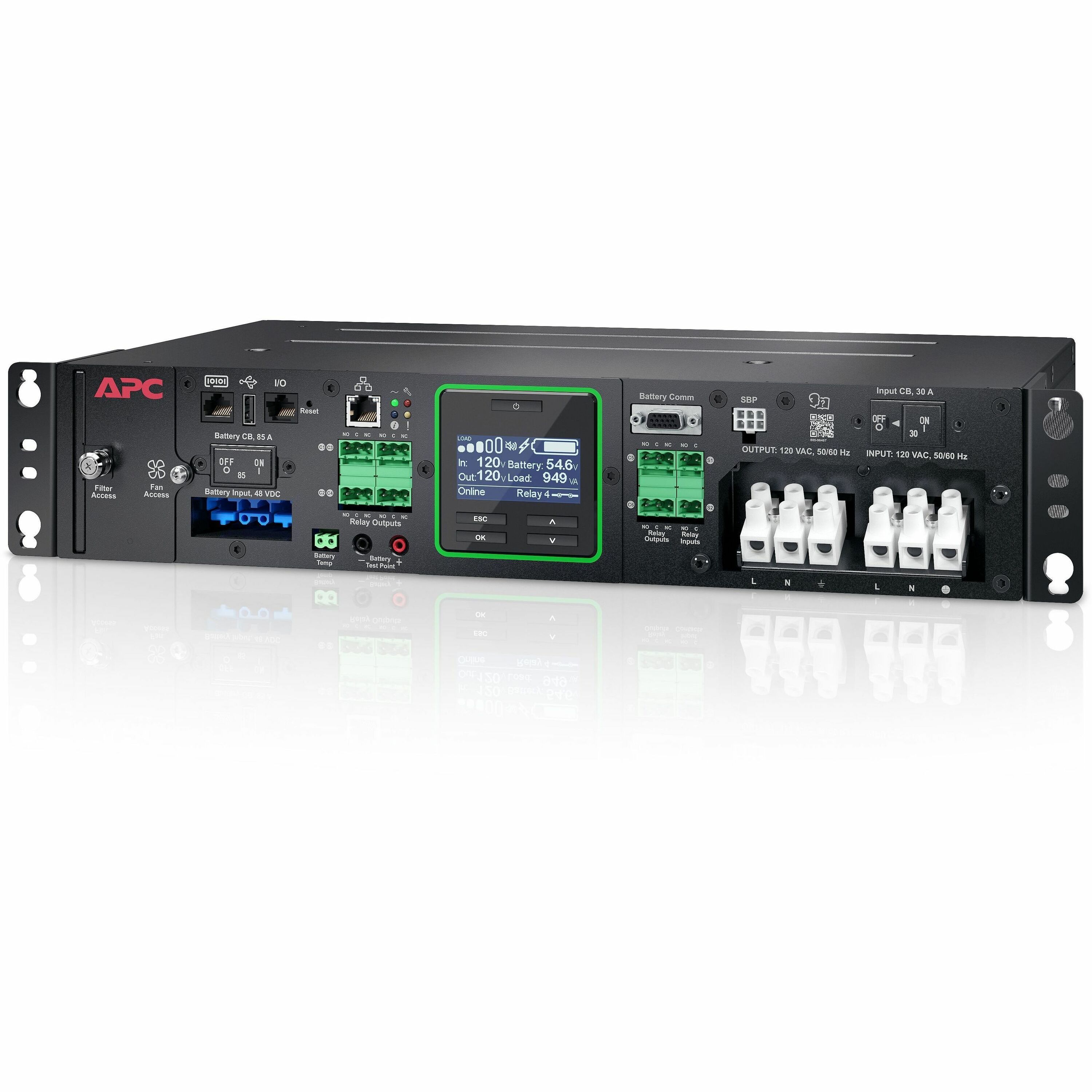

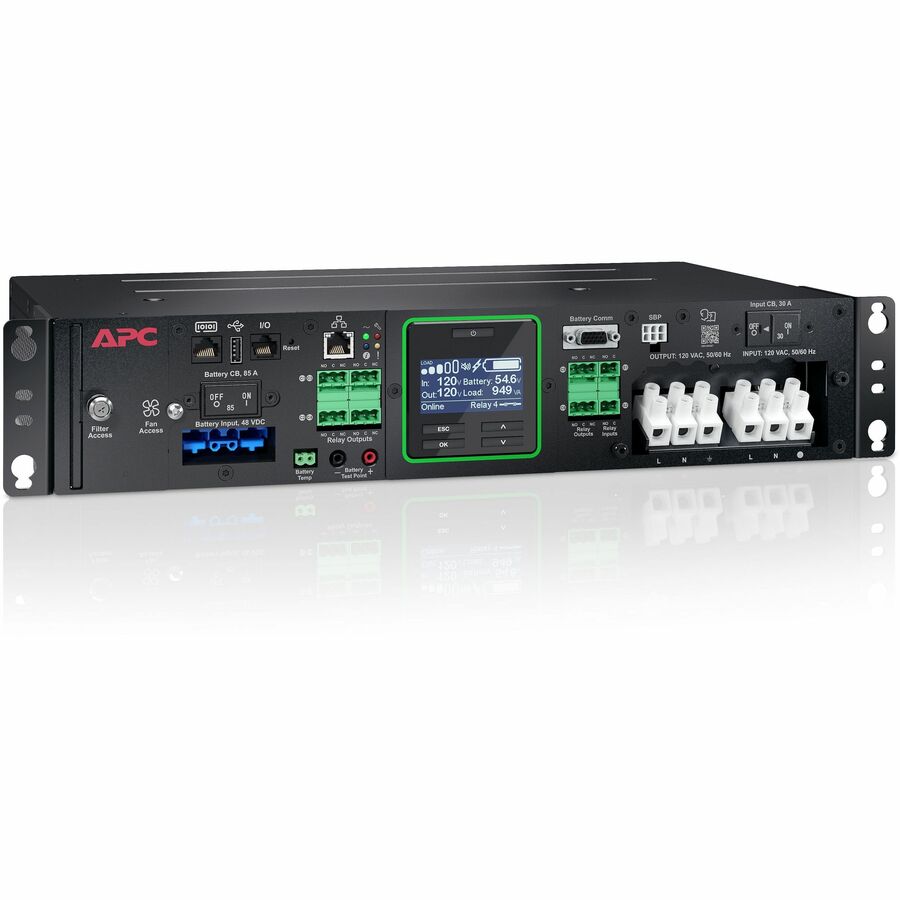

APC by Schneider Electric SecureUPS 1.3kVA Rack-mountable UPS

Name: APC by Schneider Electric SecureUPS 1.3kVA Rack-mountable UPS
Brand: APC
SKU: 5UQ631
Price: 3215.45 USD
Availability: OutOfStock

APC

PCN#

5UQ631

MFG#

XU1K3LLXXRCC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

Rack
mountable
120 V Input
120 V AC Output
Single Phase
Sine Wave
1 x Hard Wire 3
wire (H N + G)
1 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace

Shipping Weight: 27 lbs.

APC by Schneider Electric SecureUPS 1.3kVA Rack-mountable UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	XU1K3LLXXRCC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	SecureUPS
Product Name	SecureUPS 1.3kVA Rack-mountable UPS
Marketing Information	Proven Industrial UPS power protection for control applications and harsh environments.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hard Wire 3 wire (1PH+N+G)
Receptacle Type	Hard Wire 3-wire (H N + G)
Receptacle Detail	1 x Hard Wire 3-wire (H N + G)
Number of Battery & Surge Outlets	1
Phase	Single Phase
Application/Usage	Industry Embedded Controller

Power Description

Load Capacity (VA)	1300 VA
Load Capacity (Watt)	1300 W
Input Voltage	120 V
Input Voltage Range	88 V AC - 148 V AC
Output Voltage	120 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	432 J

Controls/Indicators

Status Indicators

Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Energy Meter: Provides actual kilowatt hours of usage for energy conscious users

LCD Graphics Display:

Text and mimic diagrams that display modes of operation
System parameters
Alarms

Battery Information

DC System Voltage	48 V DC
Battery Characteristics	External Battery System
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	165.2°F (74°C)
Storage Temperature	-40°F (-40°C) - 185°F (85°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	95%
Storage Relative Humidity	95%
Sound Emission (A-Weighted)	55 dB(A)

Physical Characteristics

Height	3.5"
Width	17"
Depth	10.2"
Form Factor	Rack-mountable
Weight (Approximate)	22.05 lb

Miscellaneous

Package Contents	SecureUPS 1.3kVA Rack-mountable UPS Dust filter Integrated network management Rack mounting brackets Rack mounting hardware Temperature probe Web/SNMP management card
Certifications & Standards	CSA
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=XU2K0LLXXRCC_ROHS_DECLARATION&p_FileName=XU2K0LLXXRCCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490327120&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301638&lang=en-us
REACH free of SVHC	Yes
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Canada
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace
