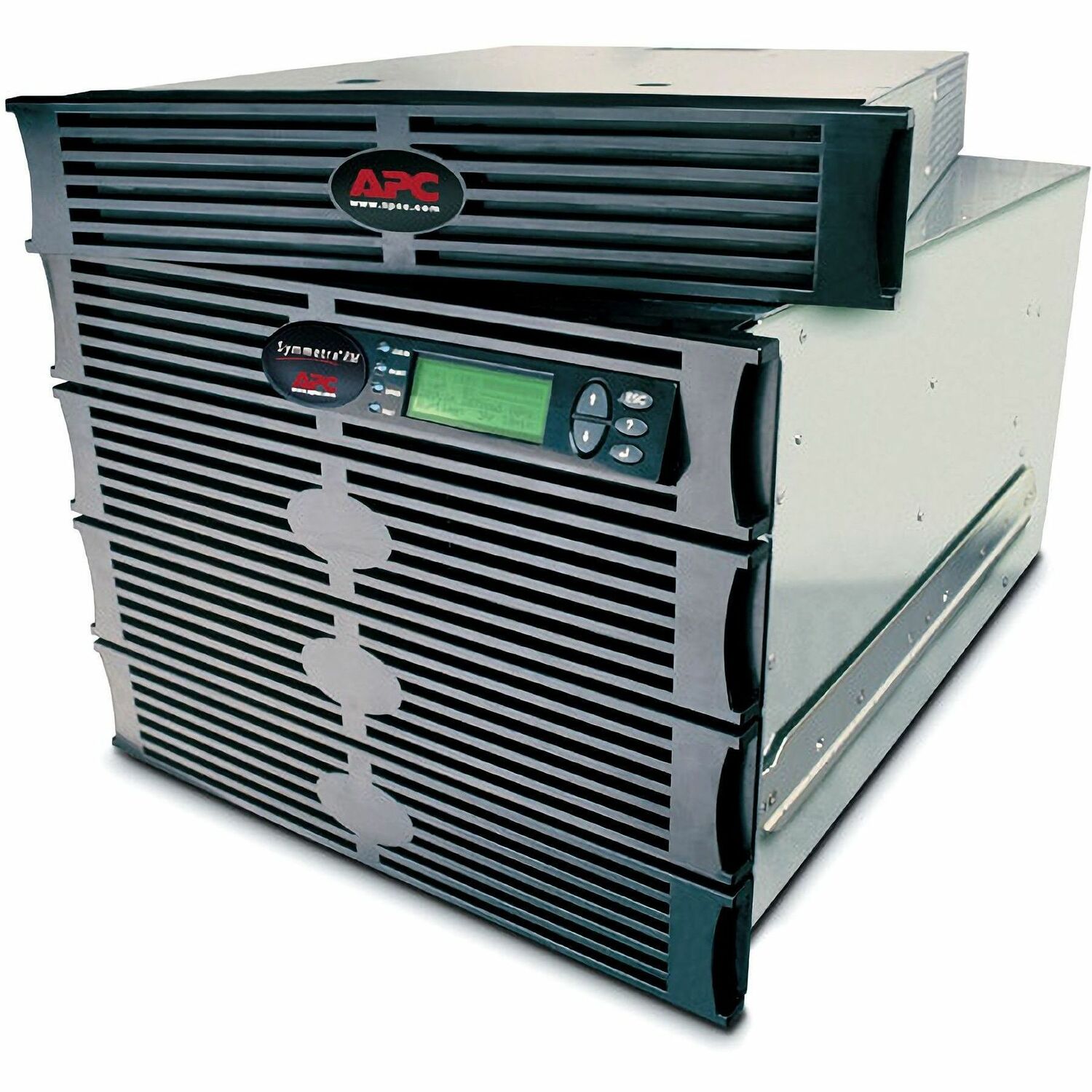

APC Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer

Name: APC Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer
Brand: APC
SKU: LC8116
Price: 4900.95 USD
Availability: InStock

APC

PCN#

LC8116

MFG#

SYH2K6RMT-P1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$4,900.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Estimated Shipment:

Product Highlights:

11.9 Minute Full Load
6kVA
SNMP Manageable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace, optional on-site warranties available, optional extended warranties available

Shipping Weight: 295 lbs.

APC Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYH2K6RMT-P1
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Name	Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer
Marketing Information	Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hard Wire 3-wire NEMA L6-30P
Receptacle Type	NEMA L6-30P 30A
Receptacle Detail	12 x NEMA 5-20R 2 x NEMA L6-20R
Number of Battery & Surge Outlets	14
Overload Protection	Yes
Cord Length	10 ft

Power Description

Load Capacity (VA)	2000 VA
Input Voltage	208 V AC
Output Voltage	120 V AC 208 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave

Management

Network Management	SNMP Manageable
Alarm	On Battery Low Battery Configurable Delay
Bypass Switch	Automatic & Manual
Emergency Power OFF	Yes

Interfaces/Ports

Modular Slots

1 x SmartSlot

Battery Information

Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	11.90 Minute
Backup/Run Time (Half Load)	27.70 Minute
Typical Battery Recharge Time	4 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Sound Emission (A-Weighted)	60 dB(A)

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	10U
Mounting Location	Front
Mounting Preference	Lower
Height	17.5"
Width	19"
Depth	28.7"
Weight (Approximate)	259.55 lb

Miscellaneous

Package Contents	Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer CD with software Rack mounting brackets Rack mounting support rails User manual
Additional Information	Efficiency at full load: 85 % Output Voltage Distortion: Less than 5% at full load Crest Factor: Up to 5 : 1 Battery Slots Empty: 4 Automatic restart of loads after UPS shutdown Generator compatible
Certifications & Standards	CSA
Green Premium	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH2K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH2K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036251&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036251&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace, optional on-site warranties available, optional extended warranties available
