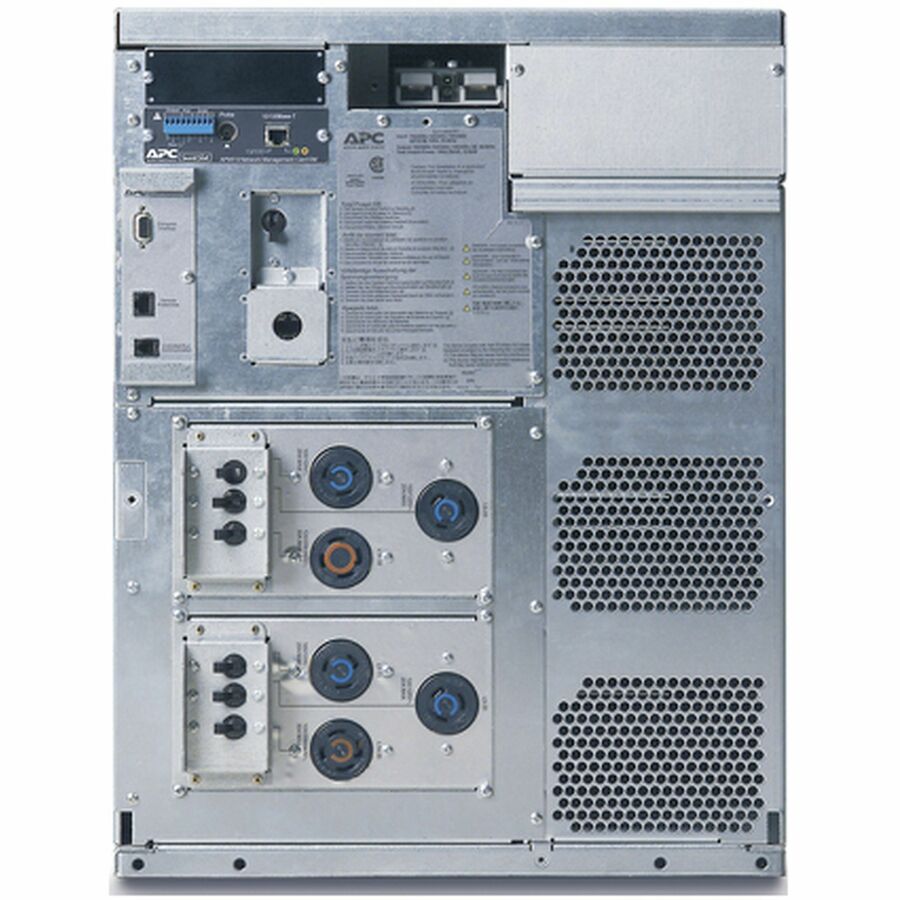

APC Symmetra LX 4kVA Scalable to 8kVA Rack-mount UPS

Name: APC Symmetra LX 4kVA Scalable to 8kVA Rack-mount UPS
Brand: APC
SKU: LB1146
Price: 11308.28 USD
Availability: InStock

APC

PCN#

LB1146

MFG#

SYA4K8RMP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$11,308.28

Extended & Accidental Damage Protection Plans Available Details

2-Year $892.99

3-Year $1,226.99

Estimated Shipment:

Product Highlights:

5.9 Minute Full Load
8kVA
SNMP Manageable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace

Shipping Weight: 366 lbs.

APC Symmetra LX 4kVA Scalable to 8kVA Rack-mount UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA4K8RMP
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 4kVA Scalable to 8kVA Rack-mount UPS
Marketing Information	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hard Wire 4-wire
Receptacle Type	NEMA L5-20R NEMA L14-30R
Receptacle Detail	2 x NEMA L14-30R 4 x NEMA L5-20R
Number of Battery & Surge Outlets	7
Overload Protection	Yes

Power Description

Load Capacity (VA)	4000 VA
Input Voltage	208 V AC
Output Voltage	120 V AC 208 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	18 A
Waveform Type	Sine Wave

Management

Network Management	SNMP Manageable
Bypass Switch	Automatic & Manual External (Optional)
Emergency Power OFF	Yes

Interfaces/Ports

Modular Slots

1 x SmartSlot

Battery Information

Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5.90 Minute
Backup/Run Time (Half Load)	16.90 Minute
Typical Battery Recharge Time	3 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	1086.41 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Form Factor	Rack-mountable
Rack Height	13U
Mounting Location	Front
Mounting Preference	Lower
Height	22.5"
Width	18.6"
Depth	27.1"
Weight (Approximate)	295.62 lb

Miscellaneous

Package Contents	Symmetra LX 4kVA Scalable to 8kVA Rack-mount UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown Automatic self-test Battery modules connected in parallel Cold-start capable Disconnected battery notification Field-replaceable power distribution panel Frequency and voltage regulation Generator Compatible Plug-and-Play external batteries Power conditioning Power Modules connected in parallel Predictive failure notification Programmable Frequency Removable input/output wiring tray Shippable with modules installed
Certifications & Standards	CSA
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA4K8RMP_ROHS_DECLARATION&p_FileName=SYA4K8RMPKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036077&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036077&lang=en-us
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
