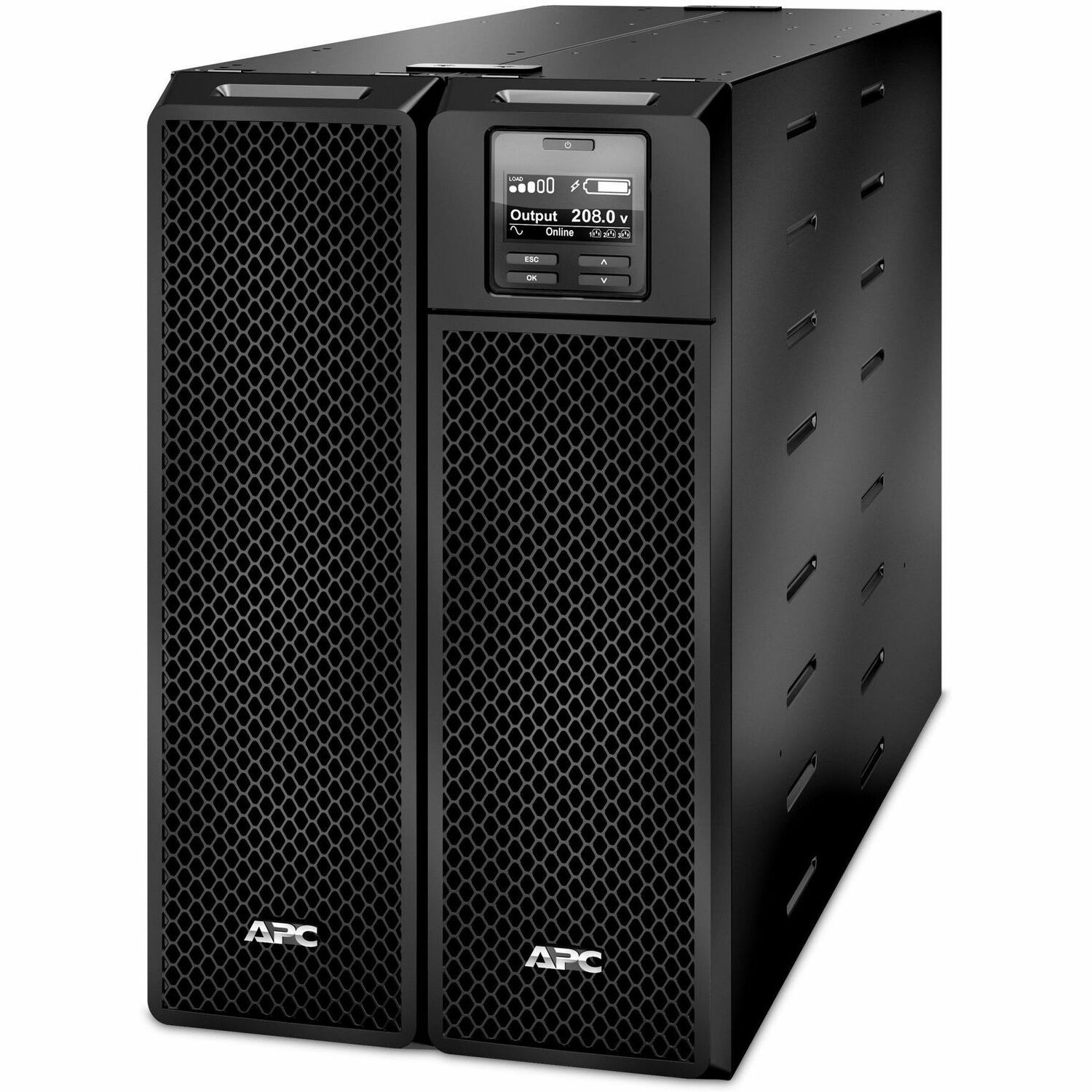

APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer

Name: APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer
Brand: APC
SKU: 1Q1751
Price: 6191.22 USD
Availability: InStock

APC

PCN#

1Q1751

MFG#

SRT5KXLT-5KTF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$6,191.22

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Estimated Shipment:

Product Highlights:

Rack
mountable
1.50 Hour Recharge
4 Minute Stand
by
208 V Input
120 V AC, 208 V AC Output
Sine Wave
1 x NEMA L14
30R, 2 x NEMA L6
30R, 4 x NEMA L6
20R, 8 x NEMA 5
20R
15 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery

Shipping Weight: 248 lbs.

APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRT5KXLT-5KTF
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS On-Line
Product Name	Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer
Marketing Information	This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4800W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input, 8x NEMA 5-20R, 1x NEMA L14-30R, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It Its dimensions are 719mm (depth) x 432mm (height) x 259mm (width) and weighs 112.49kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA L6-30P
Receptacle Detail	1 x NEMA L14-30R 2 x NEMA L6-30R 4 x NEMA L6-20R 8 x NEMA 5-20R
Number of Battery & Surge Outlets	15
Cord Length	10 ft

Power Description

Load Capacity (VA)	5000 VA
Load Capacity (Watt)	4250 W
Input Voltage	208 V
Output Voltage	120 V AC 208 V AC
Waveform Type	Sine Wave
Surge Energy Rating	480 J

Battery Information

Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	4 Minute
Typical Battery Recharge Time	1.50 Hour

Physical Characteristics

Color Family	Black
Product Color	Black
Height	17"
Width	10.2"
Depth	28.3"
Form Factor	Rack-mountable
Mounting Location	Vertical
Weight (Approximate)	248 lb

Miscellaneous

Package Contents	Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer CD with software Documentation CD Installation guide Integrated network management Removable support feet Temperature probe
Certifications & Standards	ENERGY STAR V2.0 (USA)
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT5KXLT-5KTF_ROHS_DECLARATION&p_FileName=SRT5KXLT-5KTFKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135488&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135488&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
