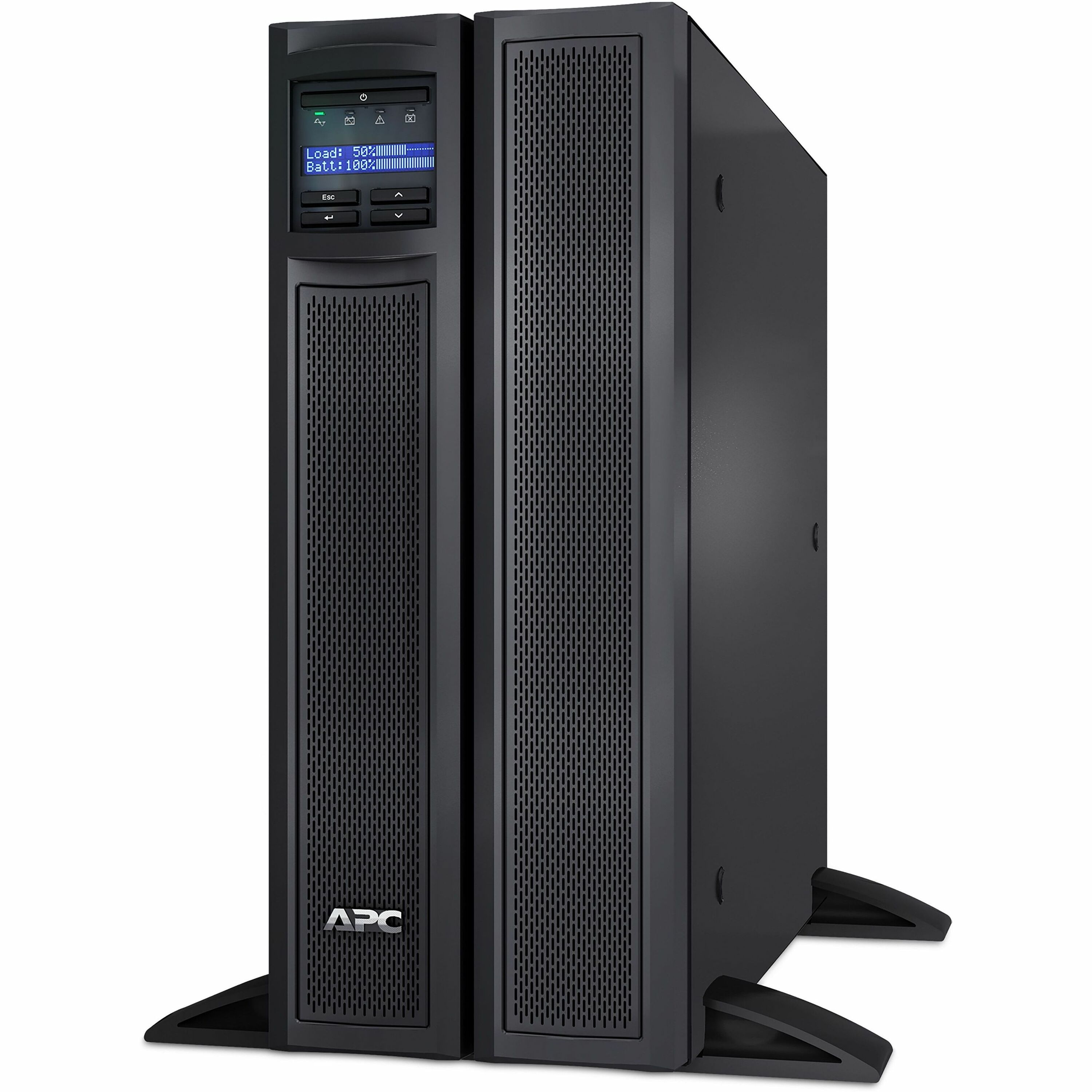

APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V

Name: APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Brand: APC
SKU: 5HM206
Price: 2247.11 USD
Availability: InStock

APC

PCN#

5HM206

MFG#

SMX3000HVTUS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,247.11

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Estimated Shipment:

Product Highlights:

4U Rack
mountable
3 Hour Recharge
6.30 Minute Stand
by
208 V Input
208 V AC Output
Sine Wave
2 x IEC 320
C19, 2 x NEMA L6
20R, 3 x IEC Jumper, 4 x IEC 320
C13
11 x Battery/Surge Outlet
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Shipping Weight: 105 lbs.

APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX3000HVTUS
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS X
Product Model	SMX3000HVTUS
Product Name	Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Marketing Information	This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA L6-20P
Receptacle Type	NEMA L6-20P
Receptacle Detail	2 x IEC 320-C19 2 x NEMA L6-20R 3 x IEC Jumper 4 x IEC 320-C13
Number of Battery & Surge Outlets	11
Cord Length	8.01 ft
Transfer Time	2 ms
Application/Usage	Server Router Network Switch Network Hub Security System Network Device

Power Description

Load Capacity (VA)	3000 VA
Load Capacity (Watt)	2700 W
Input Voltage	208 V
Input Voltage Range	141 V AC - 280 V AC
Output Voltage	208 V AC
Waveform Type	Sine Wave
Surge Energy Rating	645 J

Battery Information

Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	6.30 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Height	17"
Width	7"
Depth	19"
Rack Height	4U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	85.19 lb

Miscellaneous

Package Contents	Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V CD with software Documentation CD Rack mounting brackets Smart UPS signalling RS-232 cable USB cable User manual
Certifications & Standards	C-tick\|CE\|CSA\|GOST\|IRAM\|TAA compliance\|VDE
Software Included	Powerchute Serial Edition
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVTUS_ROHS_DECLARATION&p_FileName=SMX3000HVTUSKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326964&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326964&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHC	No
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
