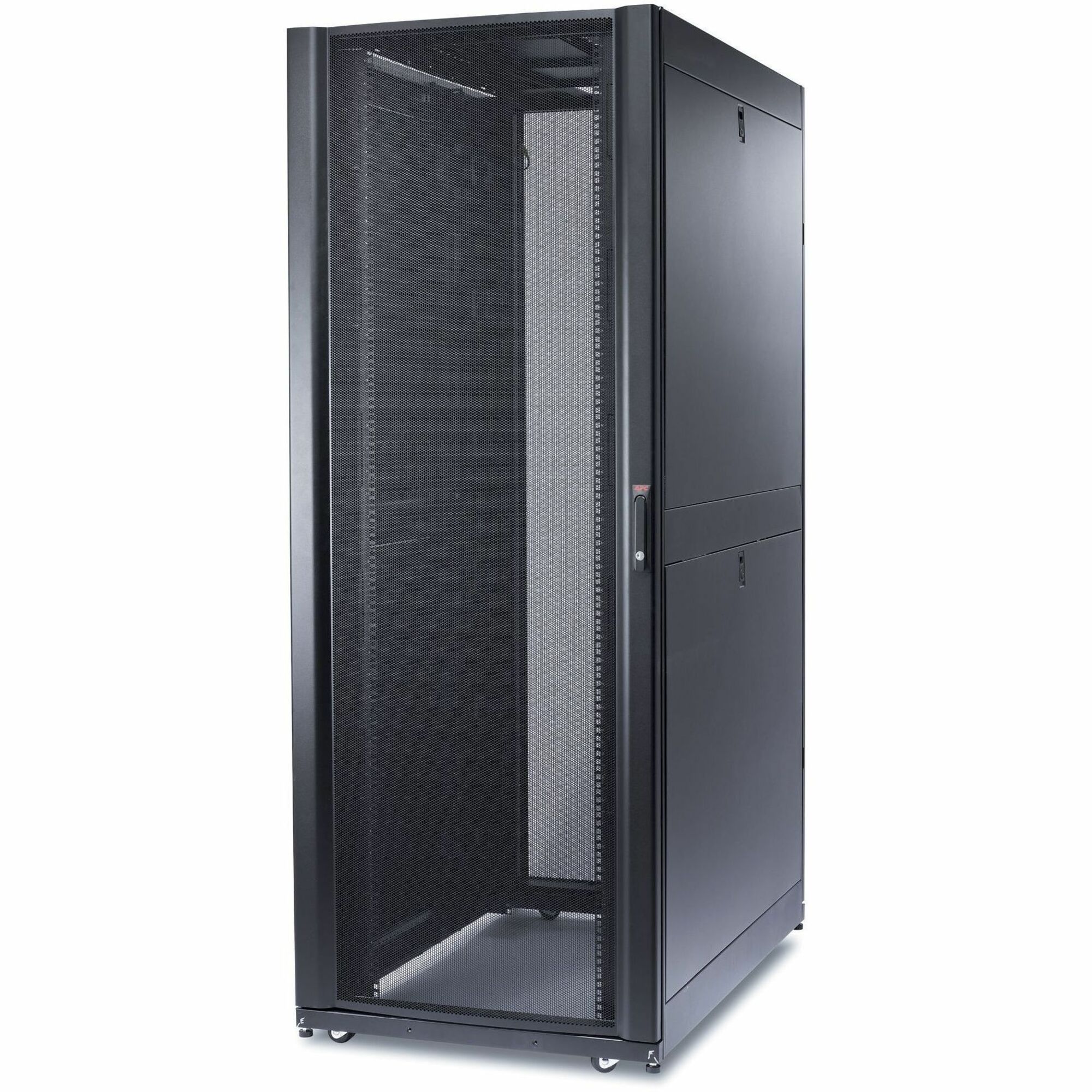

APC by Schneider Electric NetShelter SX Enclosure Rack Cabinet

Name: APC by Schneider Electric NetShelter SX Enclosure Rack Cabinet
Brand: APC
SKU: LC9852
Price: 3048.08 USD
Availability: InStock

APC

PCN#

LC9852

MFG#

AR3355

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,048.08

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

45U Rack Height x 19" Rack Width
Black
2250 lb Dynamic/Rolling Weight Capacity
3000 lb Static/Stationary Weight Capacity

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replace

Shipping Weight: 415 lbs.

APC by Schneider Electric NetShelter SX Enclosure Rack Cabinet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3355
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	NetShelter SX
Product Name	NetShelter SX Enclosure Rack Cabinet
Marketing Information	Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. Includes: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels. Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing. Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers. Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside.
Product Type	Rack Cabinet

Physical Characteristics

Color Family	Black
Product Color	Black
Units Per Pallet	1
Dynamic/Rolling Weight Capacity	2250 lb
Static/Stationary Weight Capacity	3000 lb
Door Material Gauge	18
Rail Material Gauge	14
Roof/Top Material Gauge	18
Side Panel Material Gauge	18
Height	83.6"
Width	29.5"
Depth	47.2"
Weight (Approximate)	372.58 lb
Rack Height	45U
Rack Width	19"

Miscellaneous

Package Contents	NetShelter SX Enclosure Rack Cabinet Baying Hardware Key(s) Keyed-Like Doors Side Panels Leveling Feet Mounting Hardware Pre-Installed Side Panels User Manual
Additional Information	Regulatory Approvals: UL 60950-1 Standards: EIA-310-E
Certifications & Standards	Free of Substances of Very High Concern above the threshold
Green Premium	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3355_ROHS_DECLARATION&p_FileName=AR3355KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194534&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194534&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace

Reviews
