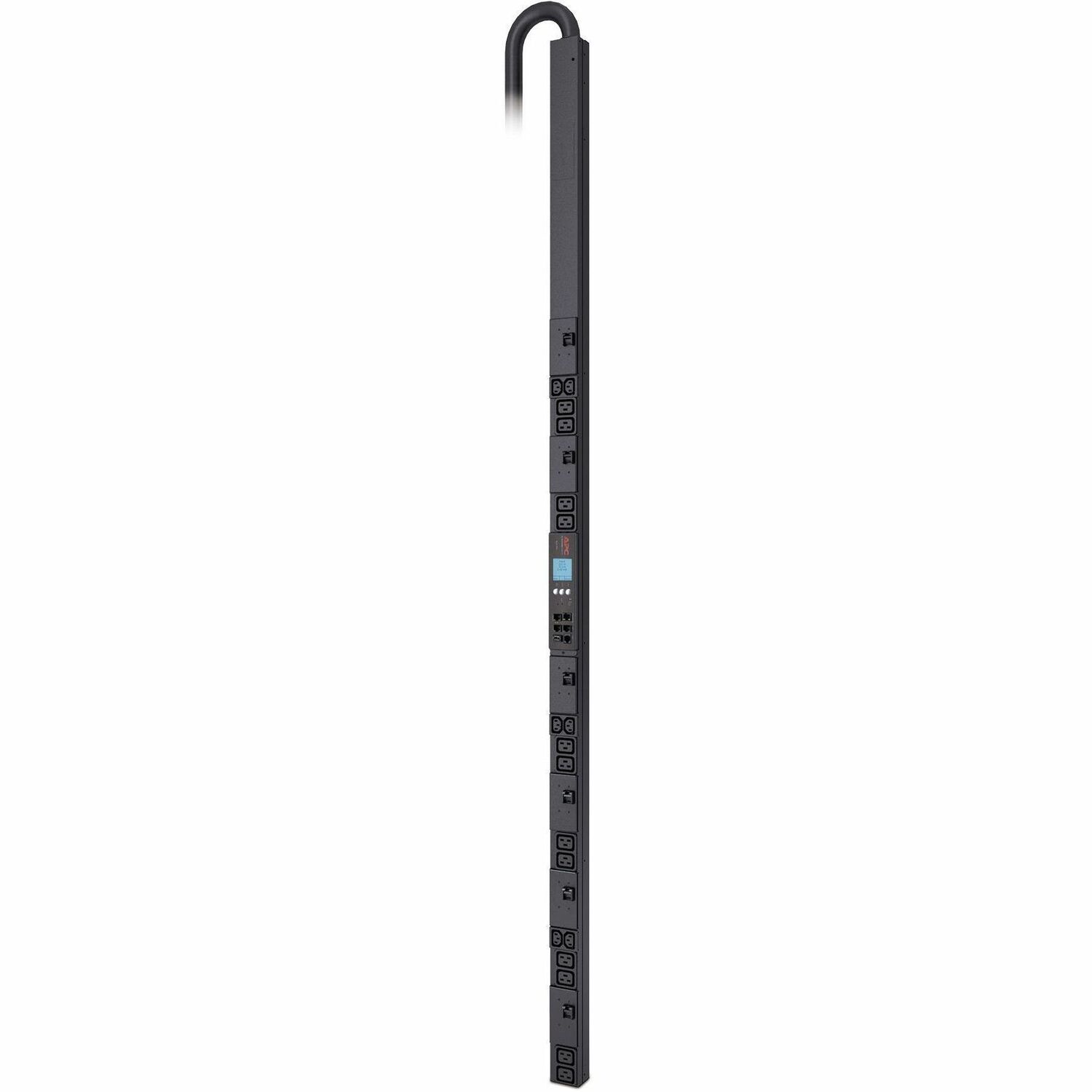

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19

Name: APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Brand: APC
SKU: PR7221
Price: 2389.31 USD
Availability: InStock

APC

PCN#

PR7221

MFG#

AP8866

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,389.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
IEC 60309 60A 3P+PE
6 x IEC 60320 C13, 12 x IEC 60320 C19
208 V
17.30 kW
6 ft Cord Length
0U
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace

Shipping Weight: 48 lbs.

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8866
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Metered Rack
Product Name	Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Marketing Information	APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable.
Packaged Quantity	1 Each
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	IEC 60309 60A 3P+PE
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	6 x IEC 60320 C13 12 x IEC 60320 C19
Protection Type	Overload Protection

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (VA)	17.30 kVA

Management

Protocols:

SNMP
Telnet
Web

Physical Characteristics

Color Family	Black
Product Color	Black
Mount Type	Rack-mountable
Rack Height	0U
Number of Cord/Cable	1
Cord Length	6 ft
Height	72"
Width	2.2"
Depth	2"
Weight (Approximate)	20.94 lb

Miscellaneous

Package Contents	Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 Installation guide Rack mounting brackets Safety guide Serial configuration cable
Additional Information	Input Connections: IEC 309 60A 3P+PE
Certifications & Standards	cUL Listed\|UL Listed\|VCCI Class A
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
REACH free of SVHC	No
Mercury Free	Yes
Lead Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8866_ROHS_DECLARATION&p_FileName=AP8866KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194460&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194460&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
