T3MK77L16S/K3 MAG/FUSE/115VAC

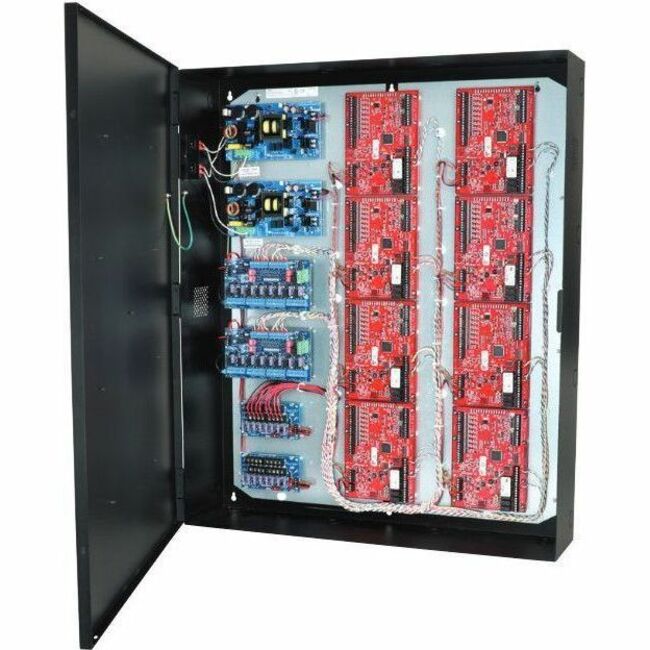

Altronix T3M77LCK3 is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77LCK3 accommodates up to eight (8) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

Also compatible with these authentic Mercury partners:

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.

• Door
• Wall Mount Enclosure

• 30.12" Wx36.12 "Hx7.06 "D (768.1 mm W x 917.5 mm H x 179.3 mm D).

• 85.6 Lbs. (38.83 kg).

• 1 x Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
• 1 x Trove3 Backplane for Altronix & Mercury
• 2 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
• 2 x Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
• 2 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• 2 x Dual Input Power Distribution Module, 8 Fused Outputs
• 1 x Dual Power ON/OFF Rocker Switches with Mounting Bracket
