Altronix 8-Door Altronix/Lenel-S2 Access and Power Integration Kit

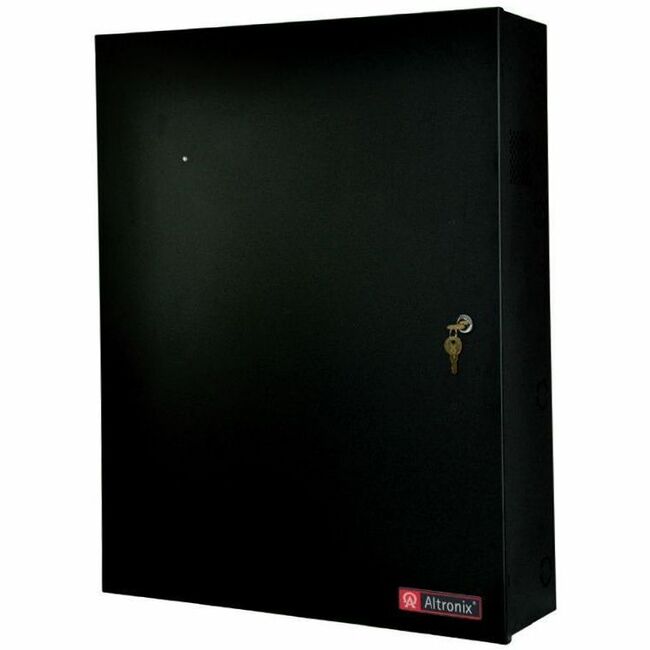

Altronix T2SSK78D kit consists of Trove2 enclosure, TSS2 Lenel-S2 (S2 Security Platform)/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module.

This kit also accommodates S2-INST Installation Kit For Lenel-S2 (S2 Security Platform) S2 Network Node for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Dimensions:

• 21.5"Wx27.25"Hx6.5"D(546.1 mm W x 692.15 mm H x 165.1 mm D).

Product Weight:

• 47 Lbs.(21.3 kg).

• 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
• 1 x Trove2 Backplane for Altronix/S2
• 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
• 1 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
• 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• 1 x Dual Input Power Distribution Module, 8 PTC Outputs
• 1 x Single Power ON/OFF Rocker Switch with Mounting Bracket
