24V 10AAND12V 10A/ULX/S2/PTC

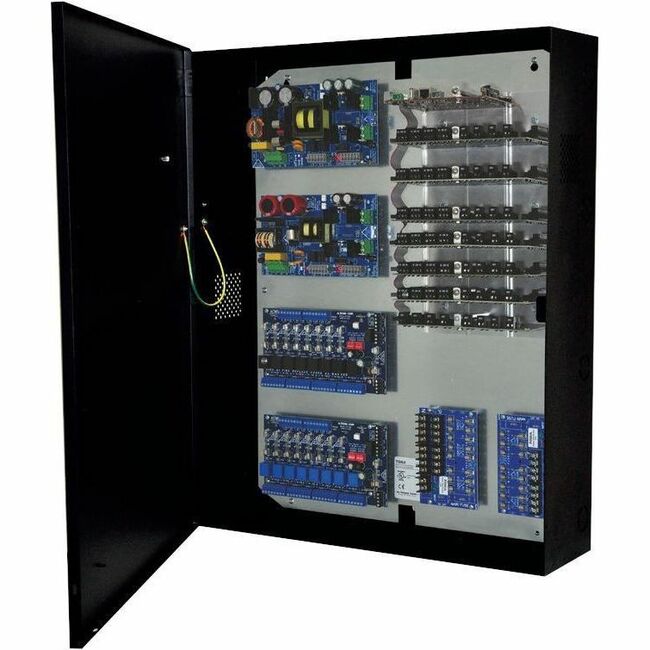

Altronix T2SSK7514D kit consists of Trove2 enclosure, TSS2 Lenel-S2 (S2 Security Platform)/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, two (2) PTC access power controllers and two (2) PTC power distribution modules. This kit also accommodates S2-INST Installation Kit For Lenel-S2 (S2 Security Platform) S2 Network Node for up to fourteen (14) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

• Door
• Wall Mount Enclosure

Dimensions: 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).

Product Weight: 49 Lbs.(22.23 kg).

• 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
• 1 x Trove2 Backplane for Altronix/S2
• 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
• 1 x Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
• 2 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
• 2 x Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
• 1 x Dual Power ON/OFF Rocker Switches with Mounting Bracket
