Altronix 8-Door Altronix/Paxton Access and Power Integration Kit

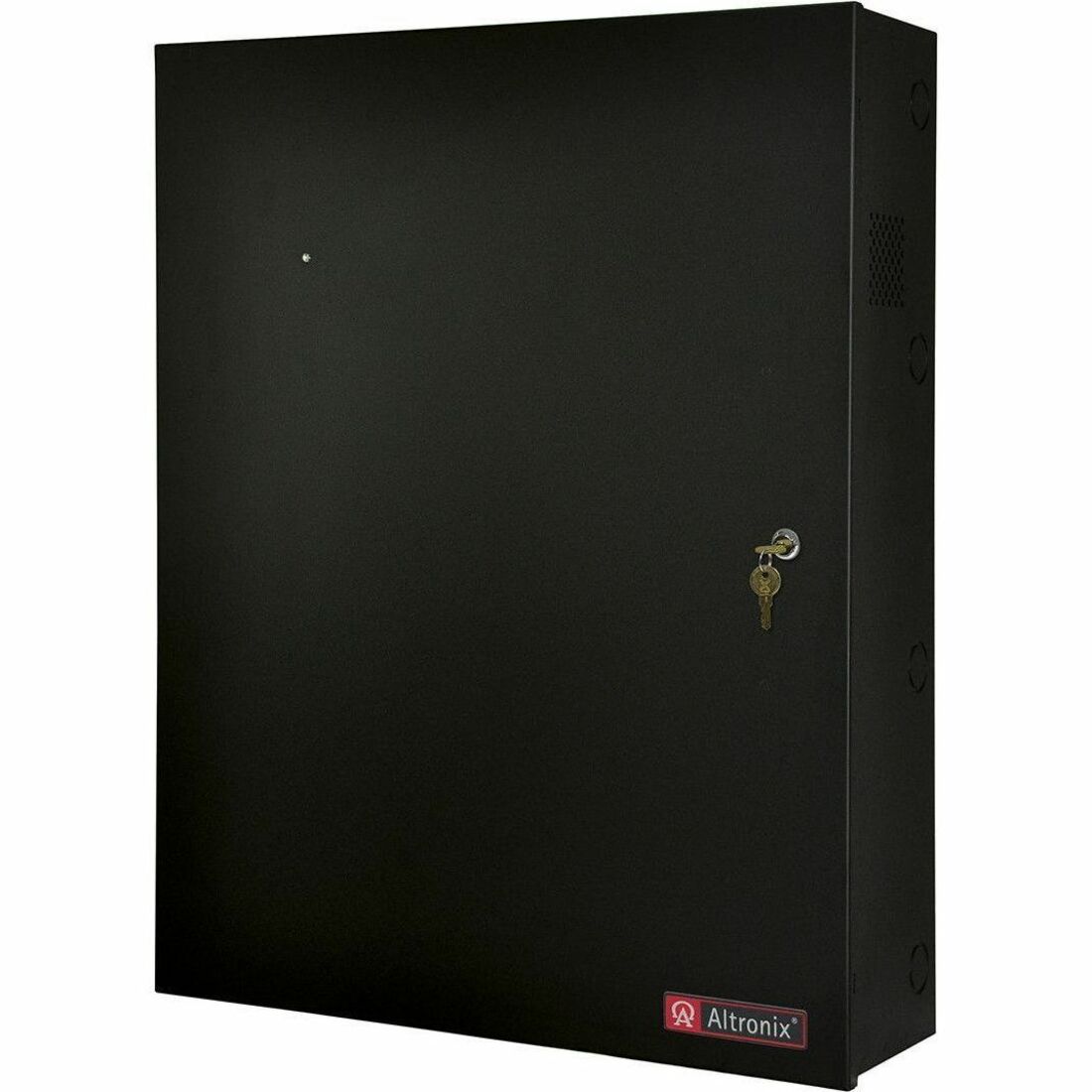

Altronix T2PXK78D kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC protected eight (8) output access power controller and one (1) PTC protected eight (8) dual output power distribution module and one (1) voltage regulator. This kit also accommodates Paxton Net2 Plus boards for up to eight (8) doors or Paxton10 for up to six (6) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Dimensions:

• 21.5"Wx27.25"Hx6.5"D(546.1 mm W x 692.15 mm H x 165.1 mm D).

Product Weight:

• 51.5 Lbs.(23.36 kg).

• 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
• 1 x Trove2 Backplane for Altronix/PDK
• 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
• 1 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
• 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• 1 x Dual Input Power Distribution Module, 8 PTC Outputs
