T2MK78/MAG/FUSED/K2/115VAC

Altronix T2M7LCK2 is a 6-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LCK2 accommodates one (1) Intelligent Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

• Door
• Wall Mount Enclosure

Dimensions: 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D)

Product Weight: 41.6 Lbs.(18.87 kg).

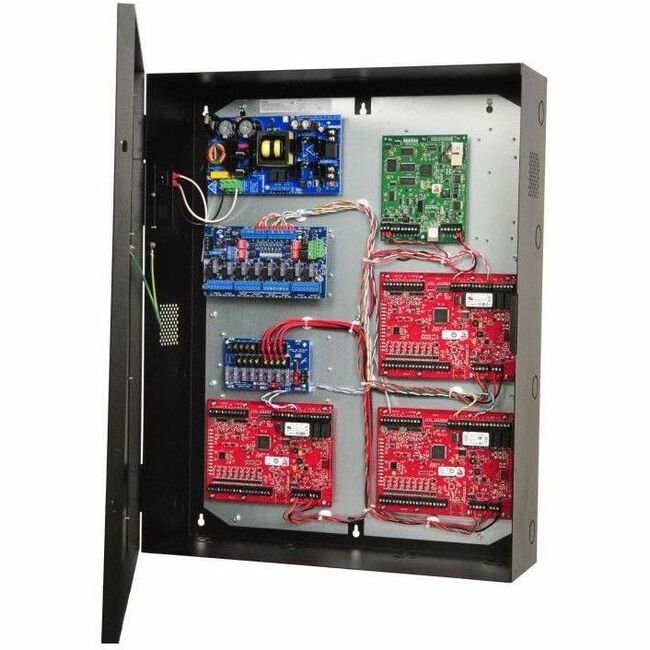

• 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
• 1 x Trove2 Backplane for Altronix & Mercury
• 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
• 1 x Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
• 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• 1 x Dual Input Power Distribution Module, 8 Fused Outputs
• 1 x Single Power ON/OFF Rocker Switch with Mounting Bracket
