TROVE2AG2/8DR/10A/ULX/PTC/220

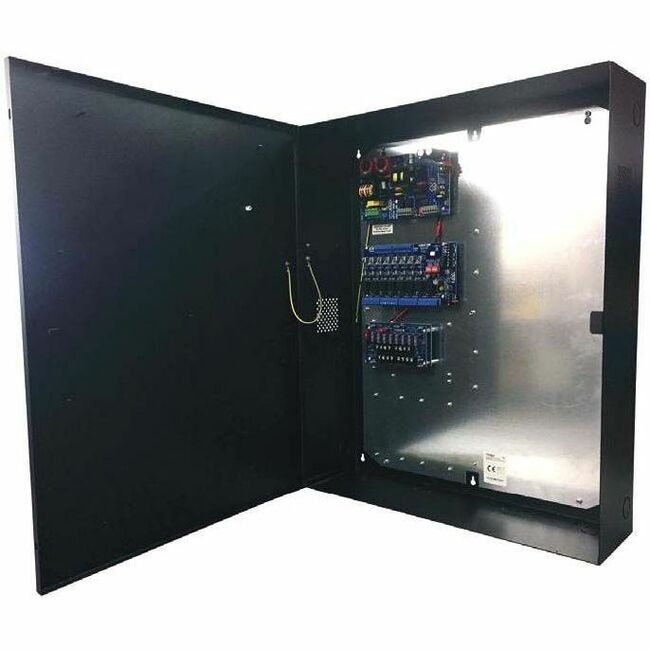

Altronix T2AGK78DV kit consists of Trove2 enclosure, TAG2 AMAG/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) 8-output PTC access power controller, one (1) voltage regulator and one (1) 8-output PTC dual input power distribution module. This kit also accommodate up to two (2) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

16 AWG Powder coated steel enclosure

Dimensions 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1

Product Weight: 40.1 Lbs.(18.2 kg).

• 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
• 1 x Trove2 Backplane for Altronix/AMAG
• 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Board
• 1 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
• 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• 1 x Dual Input Power Distribution Module, 8 PTC Outputs
