TROVE1SP1 4DR ALTRNIX/SUPREMA

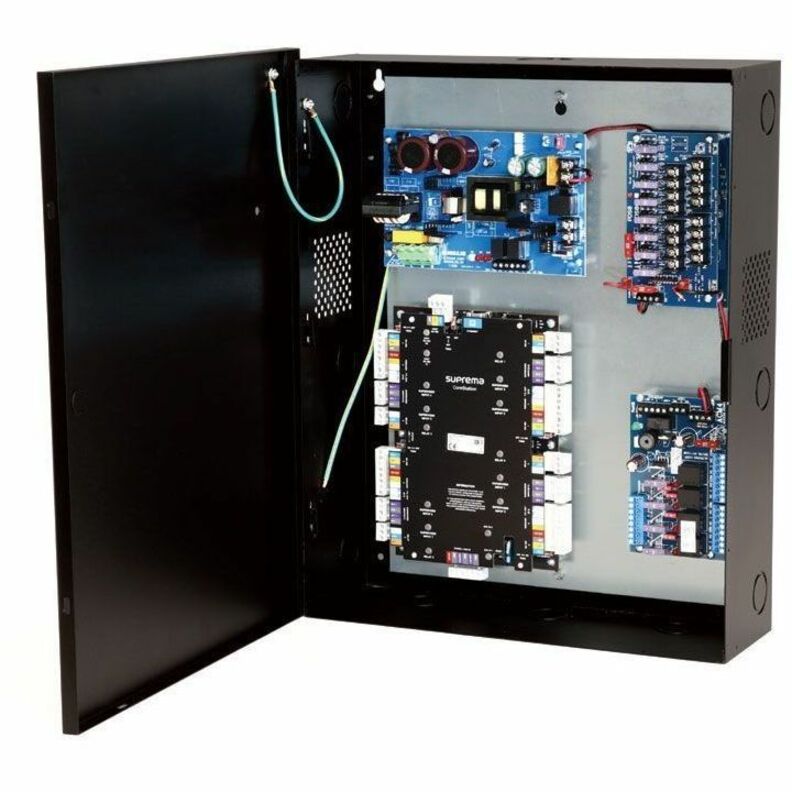

Altronix T1SPK34 kit consists of Trove1 enclosure and TSP1 Altronix & Suprema backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and four (4) fuse protected output access control module. This kit also accommodates one (1) Suprema CoreStation module for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

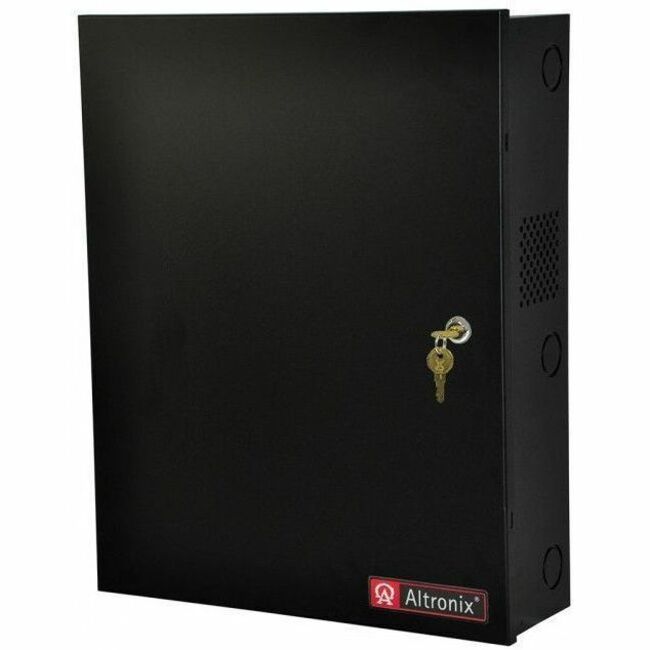

• Wall Mount Enclosure
• Door

Dimensions: 14.5"Wx18"Hx4.62"D(368.3 mm W x 457.2 mm H x 118 mm D)

Product Weight:15.5 Lbs.(7 kg).

• 1 x Dual Input Power Distribution Module, 8 Fused Outputs
• 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board
• 1 x Access Power Controller, 4 Fused Relay Outputs, FAI, Board
• 1 x Trove1 Backplane for Altronix/Suprema
• 1 x Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
