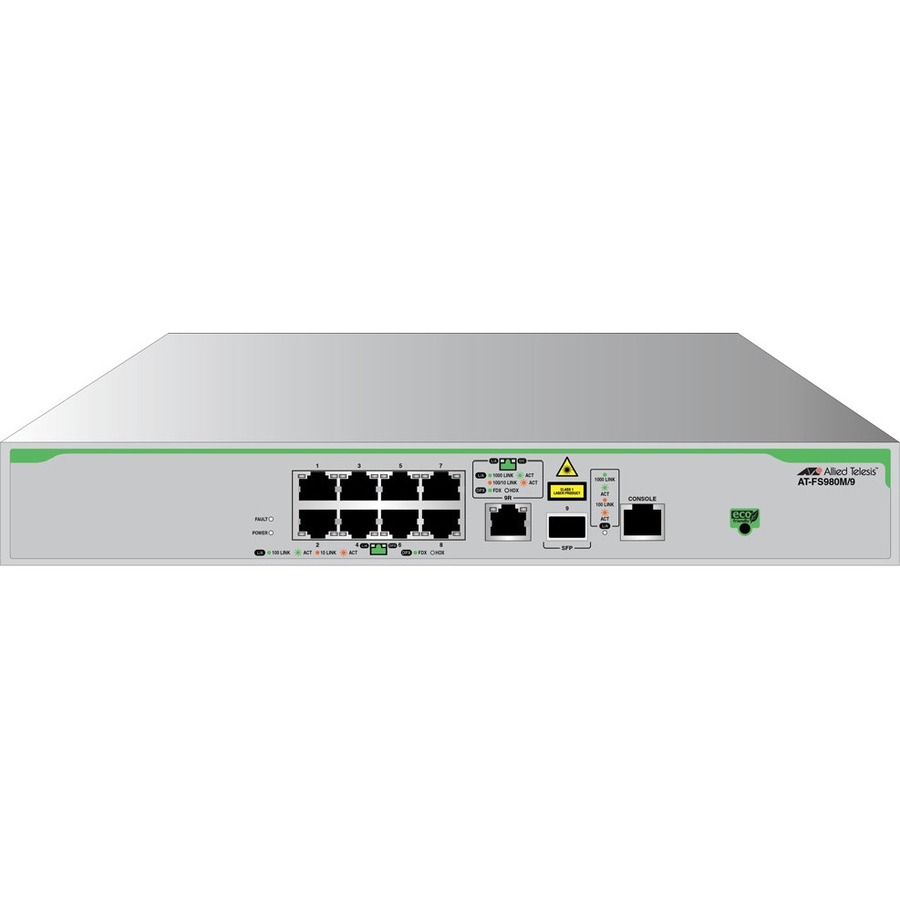

Allied Telesis CentreCOM FS980M/9 Ethernet Switch

Name: Allied Telesis CentreCOM FS980M/9 Ethernet Switch
Brand: ALLIED TELESIS
SKU: 8X7365
Price: 322.97 USD
Availability: InStock

ALLIED TELESIS

PCN#

8X7365

MFG#

AT-FS980M/9-10

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$322.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
3 Layer Supported
Modular
1 SFP Slots
6.30 W Power Consumption
Optical Fiber, Twisted Pair
1U High
Wall Mountable, Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Allied Telesis CentreCOM FS980M/9 Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Allied Telesis, Inc
Manufacturer Part Number	AT-FS980M/9-10
Manufacturer Website Address	http://www.alliedtelesis.com
Brand Name	Allied Telesis
Product Line	CentreCOM
Product Series	FS980M
Product Model	FS980M/9
Product Name	CentreCOM FS980M/9 Ethernet Switch
Marketing Information	Allied Telesis CentreCOM FS980M switches feature centralized network management via Allied Telesis Autonomous Management Framework™ (AMF), and a redundant system with Virtual Chassis Stacking (VCStack™). These high-performing switches deliver flexible uplink connectivity and lower management costs. Overview FS980M switches provide high-performance Fast Ethernet connectivity right where you need it-at the network edge. Flexible and robust, the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications. Reduce network running costs by automating and simplifying many dayto-day tasks-an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network. With both copper and Power over Ethernet (PoE) models, the FS980M Series has the ideal solution for your network. All models are available with 8, 16, 24 and 48 × 10/100TX Fast Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard, delivering up to 30 Watts of power per port for video surveillance and security applications. The dual power supply model provides system and PoE redundancy to maximize network and end-point uptime. Key Features \| Allied Telesis Autonomous Management Framework™(AMF) AMF is a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated, or made so simple, that your network can run without the need for highly-trained and expensive network engineers. Powerful features like centralized management, auto-backup, autoupgrade, auto-provisioning and auto-recovery enable Plug-and-Play networking and zero-touch management. AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. The FS980M can function as an AMF edge switch when an AMF Master switch is available in the network. EPSRingTM Ethernet Protection Switched Ring (EPSRing) allows several FS980M switches to join a protected ring, capable of recovery within as little as 50ms. This feature is perfect for high availability in enterprise networks. Layer 3 Routing The FS980M Series provides static IPv4 routing at the edge of the network, as well as support for RIPv1 and RIPv2. VCStackTM FS980M/28, FS980M/28PS, FS980M/52, FS980M/52PS , FS980M/28DP models. Create a VCStack of up to four units with 2 Gbps of stacking bandwidth per each unit. VCStack provides a highly-available system in which network resources are spread out across stacked units, minimizing the impact should any unit fail.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet Network 1 x Gigabit Ethernet TP/SFP Combo

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

I/O Expansions

Number of Total Expansion Slots	1
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	Yes
Number of SFP Slots	1

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1x IEEE 802.2 IEEE 802.3 IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.1ab IEEE 802.1p IEEE 802.1AX IEEE 802.1D IEEE 802.1w IEEE 802.3ad IEEE 802.1Q IEEE 802.1v

Management & Protocols

Manageable

Yes

Power Description

Frequency	50 Hz 60 Hz
Power Source	Power Supply
Number of Power Supplies Installed	1
Power Consumption	6.30 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Wall Mountable Rack-mountable
Height	1.7"
Width	13"
Depth	8"
Weight (Approximate)	4.41 lb

Miscellaneous

Package Contents	CentreCOM FS980M/9 Ethernet Switch US Power Cord
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
