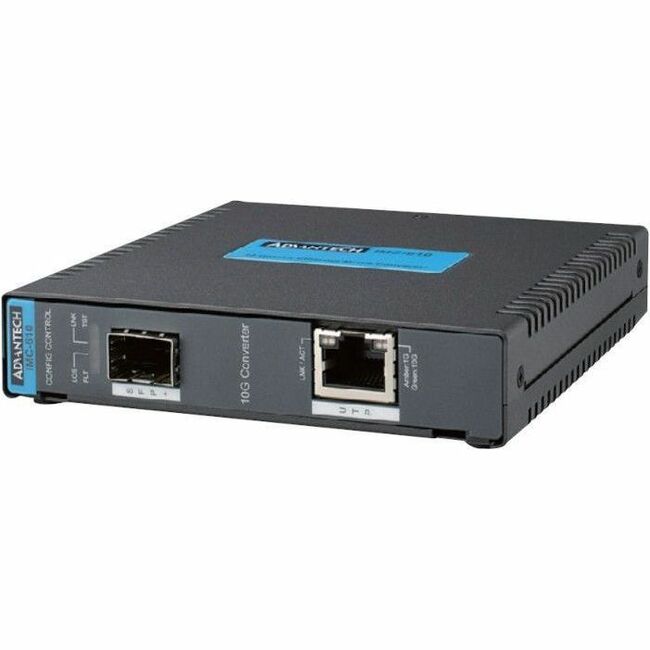

Advantech 10G Stand Alone Hardened Ethernet Media Converter

Name: Advantech 10G Stand Alone Hardened Ethernet Media Converter
Brand: ADVANTECH
SKU: 08HP82
Price: 602.61 USD
Availability: InStock

ADVANTECH

PCN#

08HP82

MFG#

IMC-610-A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$602.61

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
Single
mode, Multi
mode
10 Gigabit Ethernet
10GBase
X, 10GBase
SR, 10GBase
T, 5GBase
T, 2.5GBase
T, 1000Base
T, 100Base
T
80 km
1.0 x Expansion Slots
SFP+
1 x SFP+ Slots
AC/DC
DIN Rail Mountable, Panel
mountable, Standalone

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Advantech 10G Stand Alone Hardened Ethernet Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IMC610A
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	IMC-610
Product Model	IMC-610-A
Product Name	10G Stand Alone Hardened Ethernet Media Converter
Marketing Information	IMC-610 SFP+ 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. It supports 10Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels, which supports the transmission distance from 400m up to 80km to facilitate 10G equipment and devices deployment.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode Multi-mode
Maximum Distance Supported	80 km
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm 9/125 µm

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	1

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-X 10GBase-SR 10GBase-T 5GBase-T 2.5GBase-T 1000Base-T 100Base-T

Power Description

Power Source	AC/DC
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	DIN Rail Mountable Panel-mountable Standalone
Height	0.9"
Width	4.3"
Depth	4"

Miscellaneous

Application/Usage	Network
Certifications & Standards	EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
