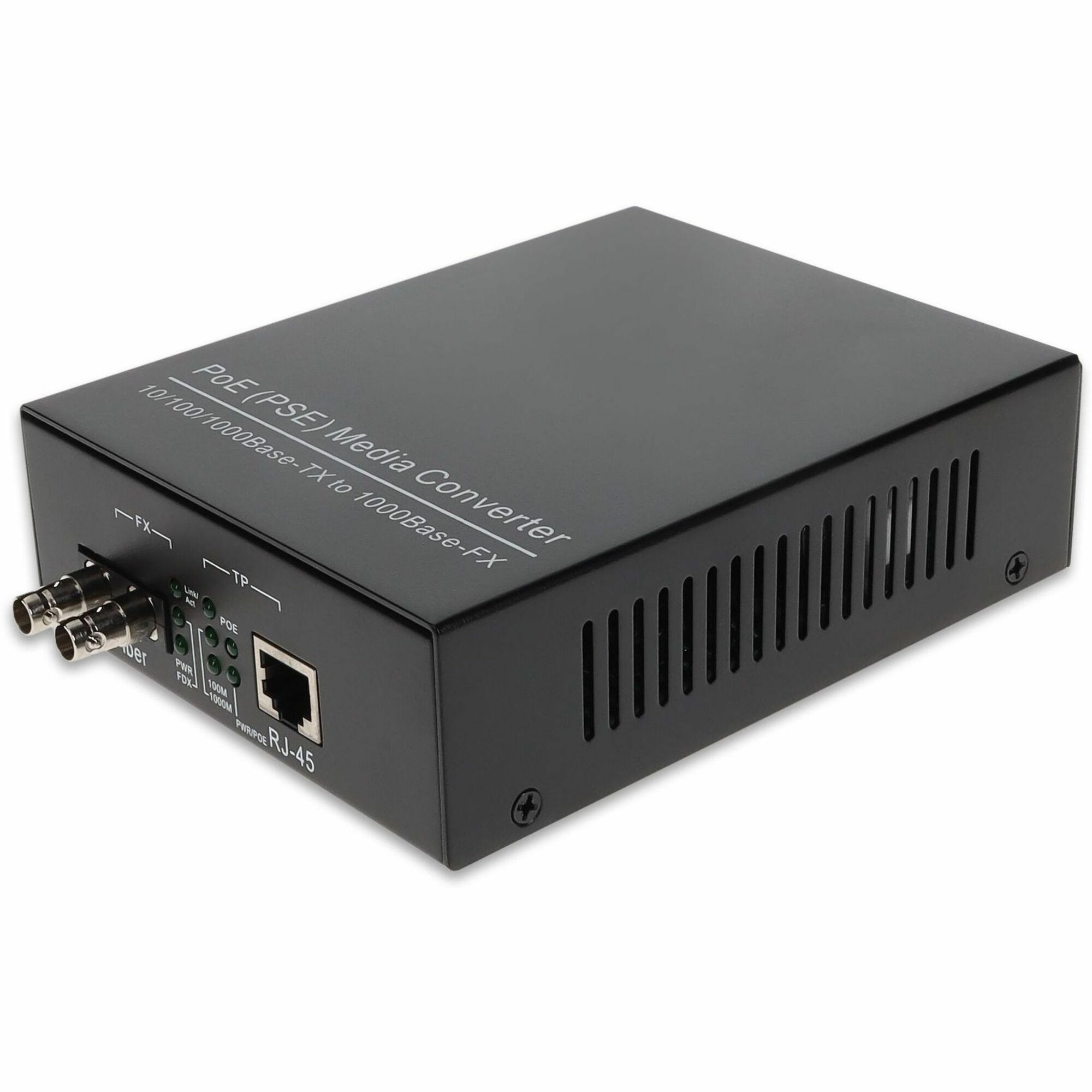

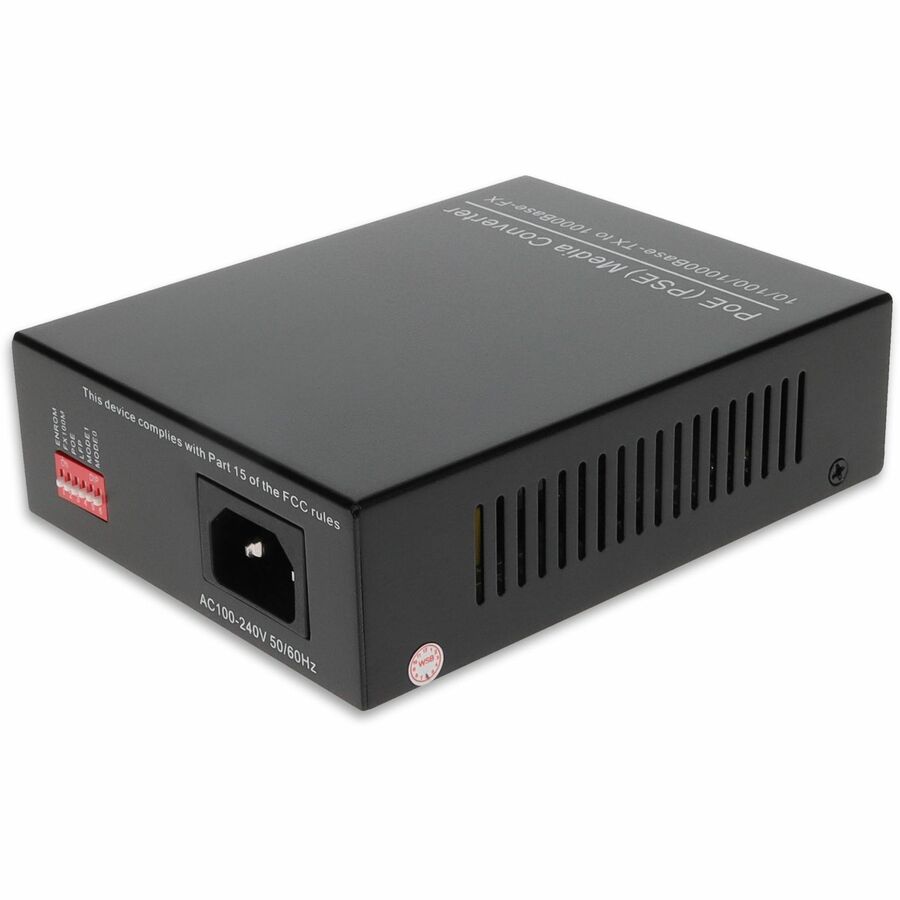

AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-SX(ST) MMF 850nm 550m POE Media Converter

Name: AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-SX(ST) MMF 850nm 550m POE Media Converter
Brand: ADDON
SKU: 6E3887
Price: 231.22 USD
Availability: InStock

ADDON

PCN#

6E3887

MFG#

ADD-GMCP-SX-5ST

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$231.22

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

100% compatible and guaranteed to work

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-SX(ST) MMF 850nm 550m POE Media Converter

Overview

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-GMCP-SX-5ST
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	10/100/1000Base-TX(RJ-45) to 1000Base-SX(ST) MMF 850nm 550m POE Media Converter
Marketing Information	This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(ST) via a 850nm multi-mode fiber (MMF) ST connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of PoE (RJ-45) Ports	1
PoE Port Type	PSE
Number of ST Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	850 nm
Maximum Distance Supported	0.55 km
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-SX 10/100/1000Base-T

Power Description

Power Source	AC
Input Voltage	110 V AC

Physical Characteristics

Height	1.5"
Width	5"
Depth	6"
Weight (Approximate)	1.40 lb

Miscellaneous

Application/Usage	Network
Certifications & Standards	802.3af
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
