7 TOUCHSCREEN HANDSET/HANDS-FREE SUB MASTER FOR JP SERIES

Name: 7 TOUCHSCREEN HANDSET/HANDS-FREE SUB MASTER FOR JP SERIES
Brand: ACCU-TECH CORPORATION
SKU: 8438AF
Price: 1073.3 USD
Availability: InStock

ACCU-TECH CORPORATION

PCN#

8438AF

MFG#

JP-4HD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,073.30

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

7" Touchscreen TFT LCDFull
duplex
Door Entry

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 5 lbs.

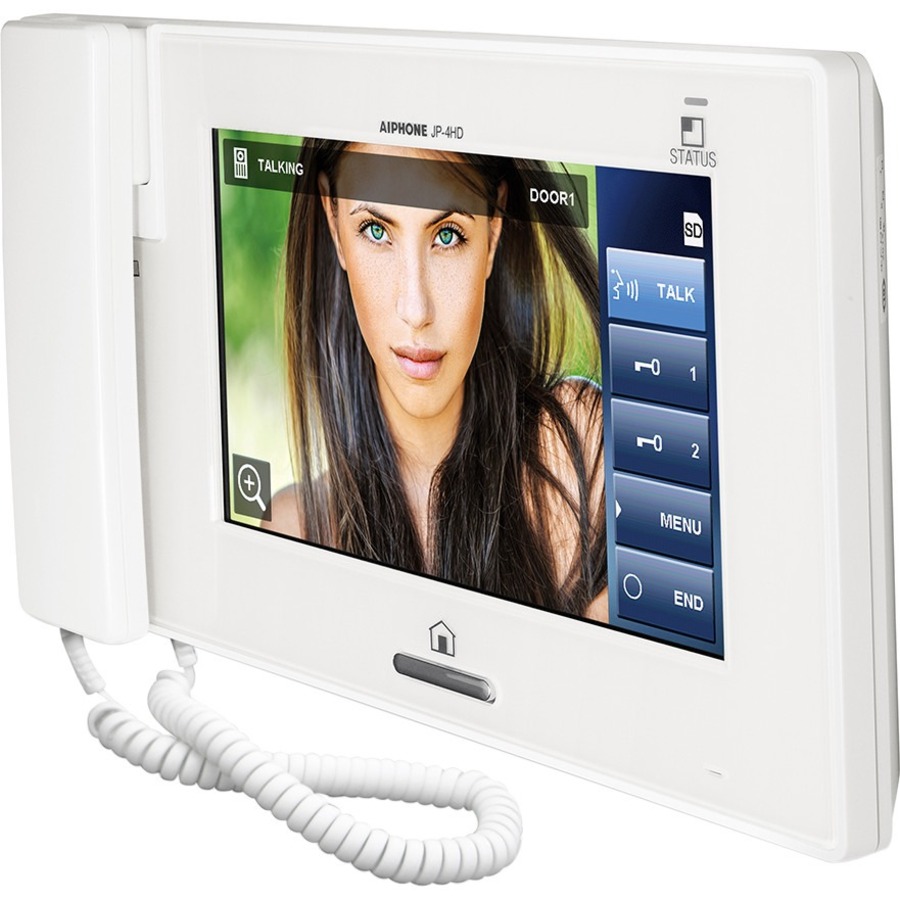

Aiphone JP-4HD Video Door Phone Sub Station

Overview

Tech Specs

Specifications

Manufacturer	Aiphone Co., Ltd
Manufacturer Part Number	JP-4HD
Manufacturer Website Address	http://www.aiphone.com
Brand Name	Aiphone
Product Series	JP
Product Model	JP-4HD
Product Name	JP-4HD Video Door Phone Sub Station
Marketing Information	The JP-4HD is a video sub master station for use with the JP-4MED master station. A maximum of 7 sub master stations can be used in the JP Series. The JP-4HD offers a 7" color touchscreen LCD and allows for handset (duplex) and hands-free (VOX) communication. This unit is equipped with a door release button for the user to allow visitor entry. The JP-4HD is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. The JP-4HD connects to either the master station or JP-8Z distribution unit using CAT-5e / CAT-6 cable.
Product Type	Video Door Phone Sub Station

Technical Information

Communication Mode	Full-duplex
Maximum Wiring Distance	165 ft

Display & Graphics

Screen Size	7"
Display Screen Type	TFT LCD
Screen Resolution	800 x 480
Touchscreen	Yes

Power Description

Input Voltage

24 V DC

Physical Characteristics

Height	5.7"
Width	10"
Depth	1.2"
Weight (Approximate)	1.72 lb

Miscellaneous

Application/Usage	Door Entry
Additional Information	Picture Memory: Internal / Built-In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting Door Release: N/O dry contact, 24V AC/DC, 500mA - use EL-12S (use RY-24L for larger contact rating and use RY-3DL for 3~4 doors)
Country of Origin	Thailand

Warranty

Limited Warranty

2 Year
